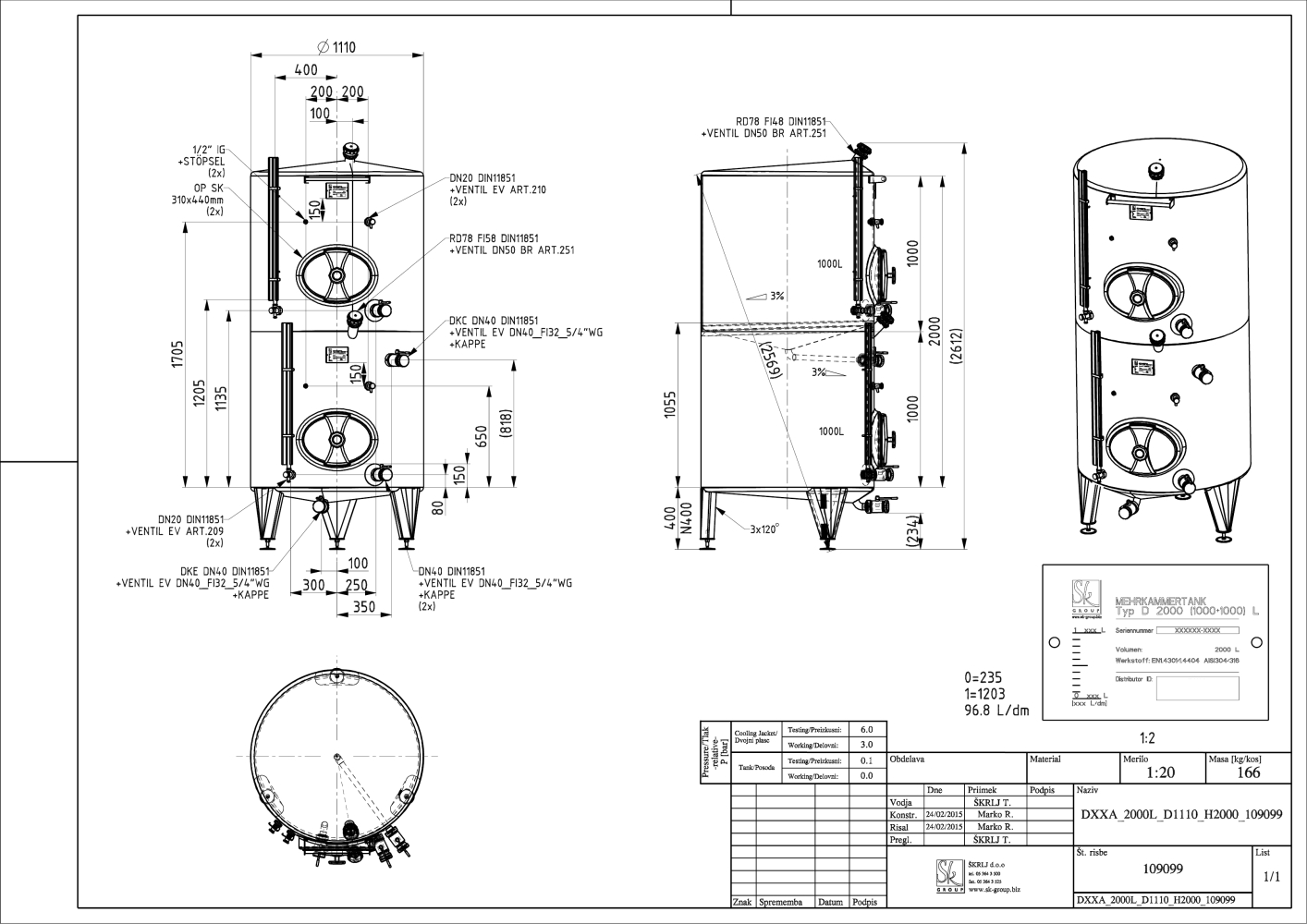

Storage tank with intermediate bottom
DXXA 2000 D1110 H2000 0/ATM RW
Material: 109099
Standard: RW
Nominal volume in L: 2000
Geometrical volume [l]: 2036
Volume below [l]: 1000
Volume above [l]: 1000
Internal diameter in mm: 1110
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
