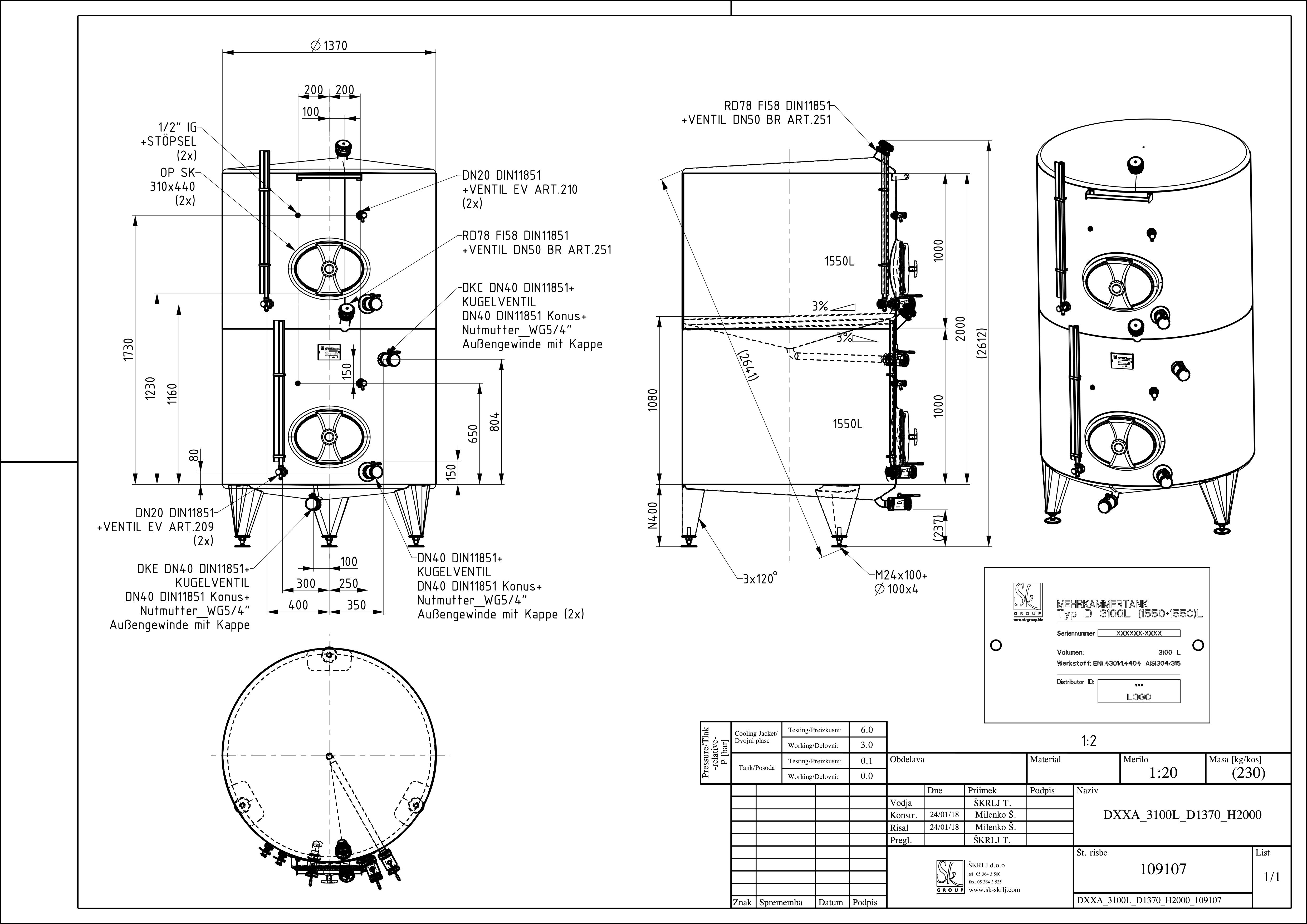

Storage tank with intermediate bottom
DXXA 3100 D1370 H2000 0/ATM RW
Material: 109107
Standard: RW
Nominal volume in L: 3100
Geometrical volume [l]: 3101
Volume below [l]: 1550
Volume above [l]: 1550
Internal diameter in mm: 1370
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
