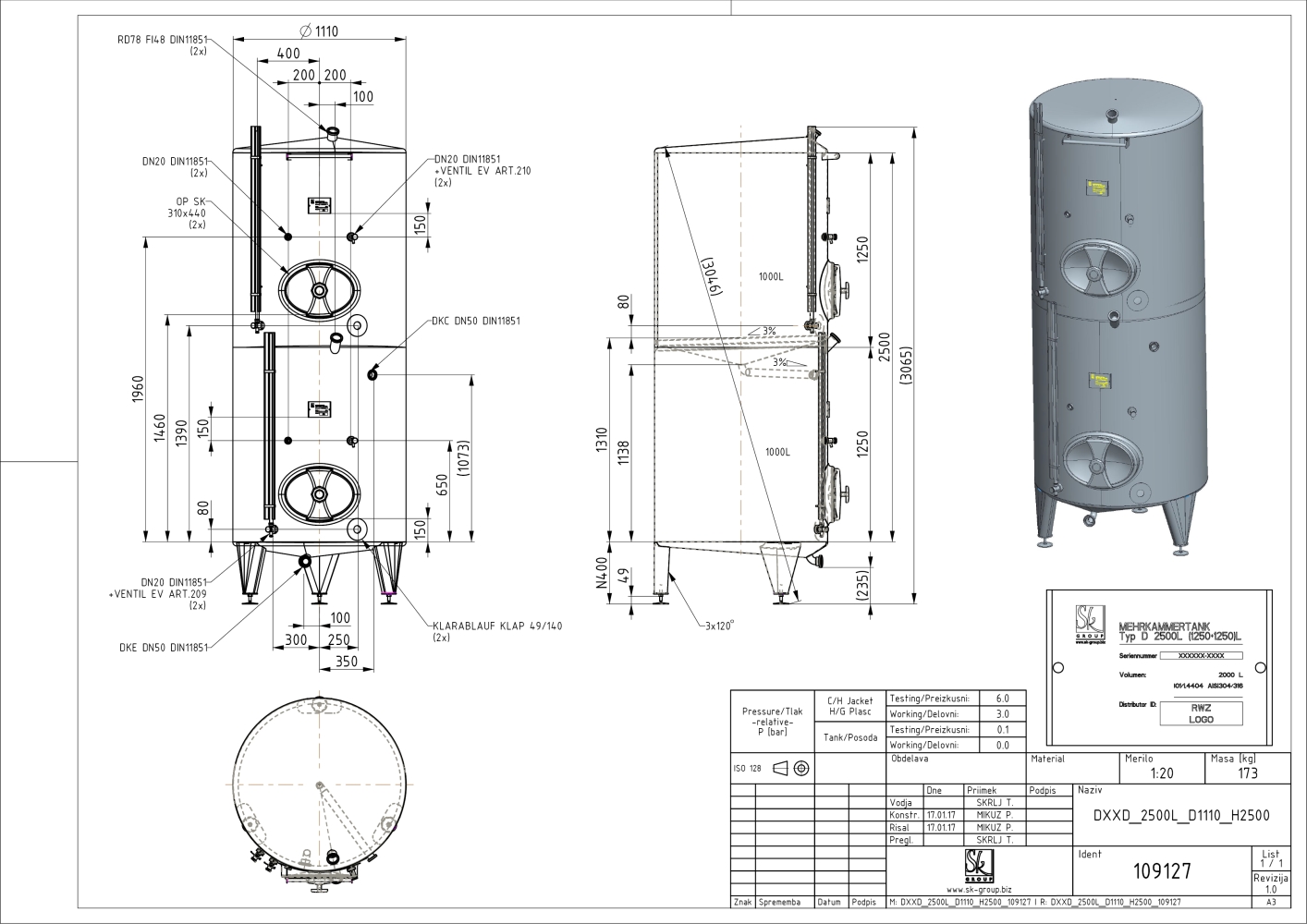

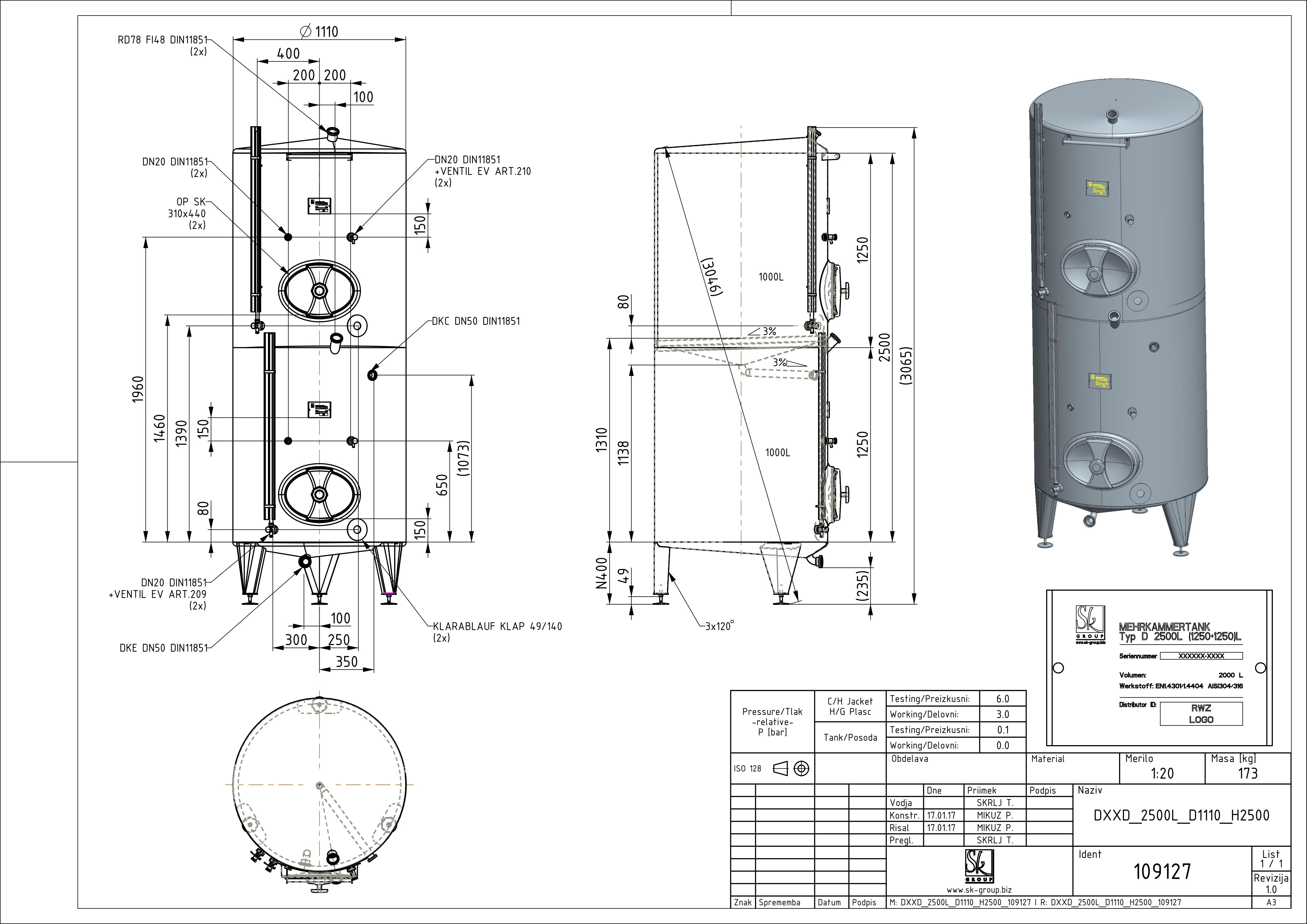

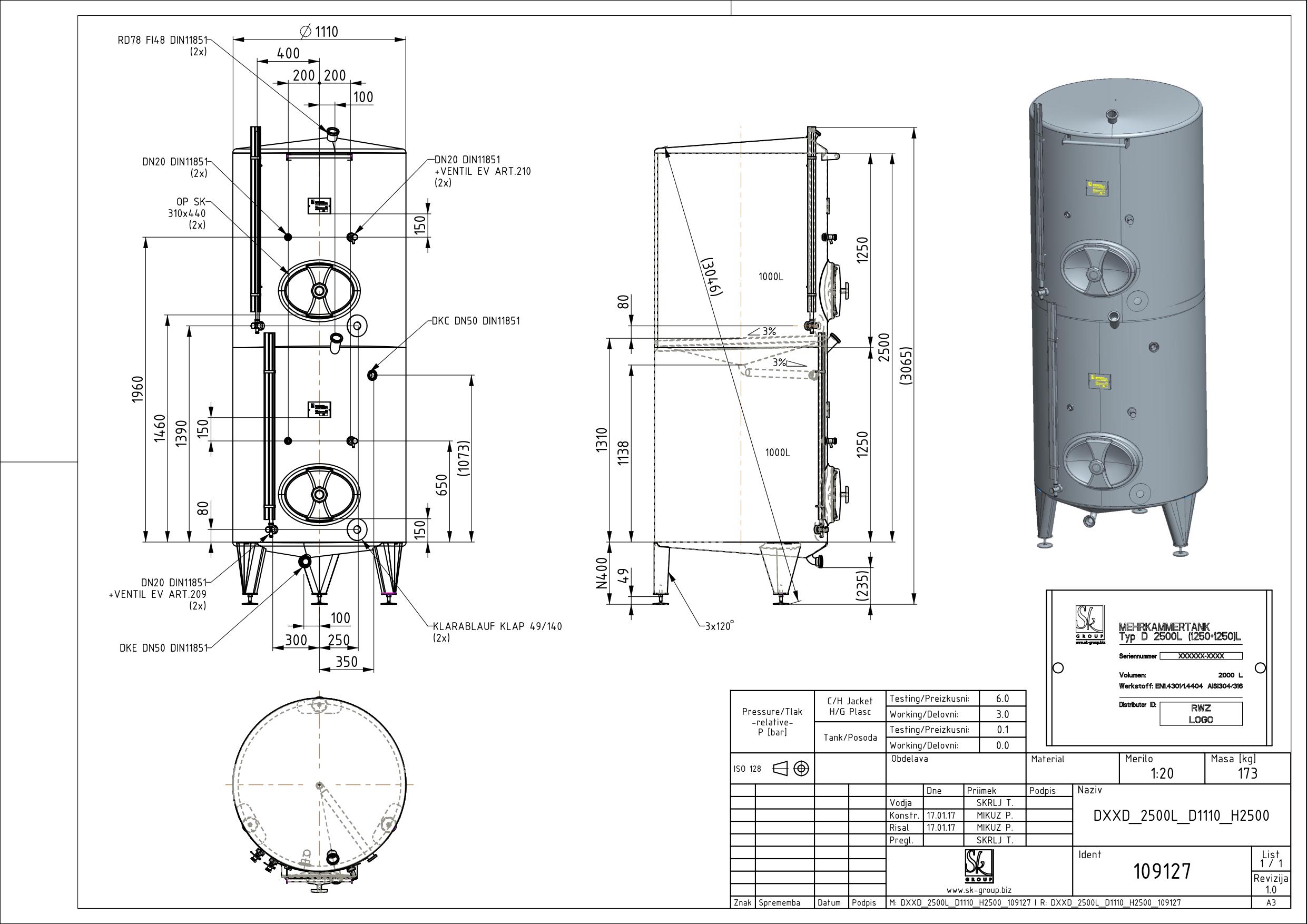

Storage tank with intermediate bottom
DXXD 2500 D1110 H2500 0/ATM KL
Material: 109127
Standard: KL
Nominal volume in L: 2500
Geometrical volume [l]: 2520
Volume below [l]: 1250
Volume above [l]: 1250
Internal diameter in mm: 1110
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
