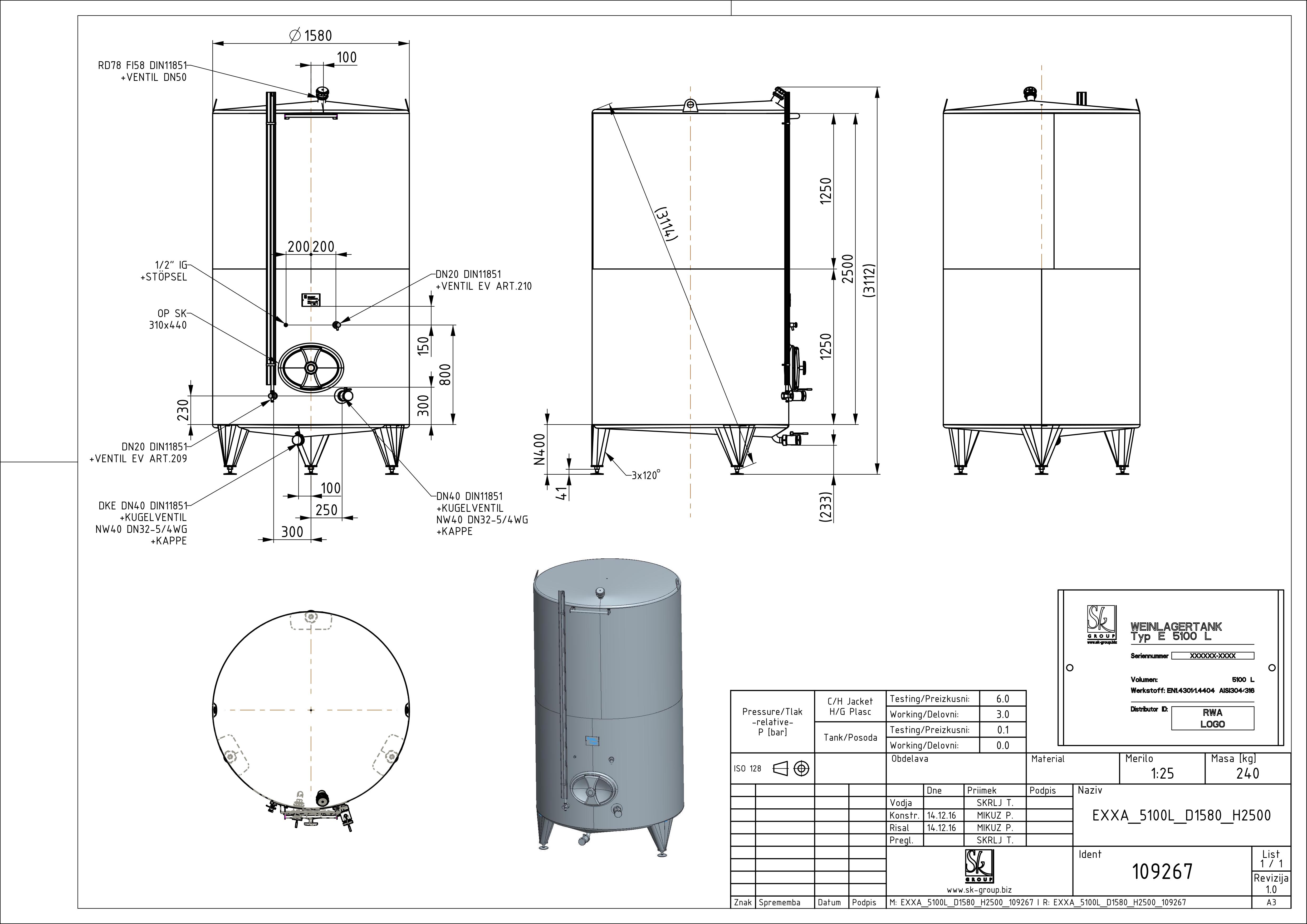

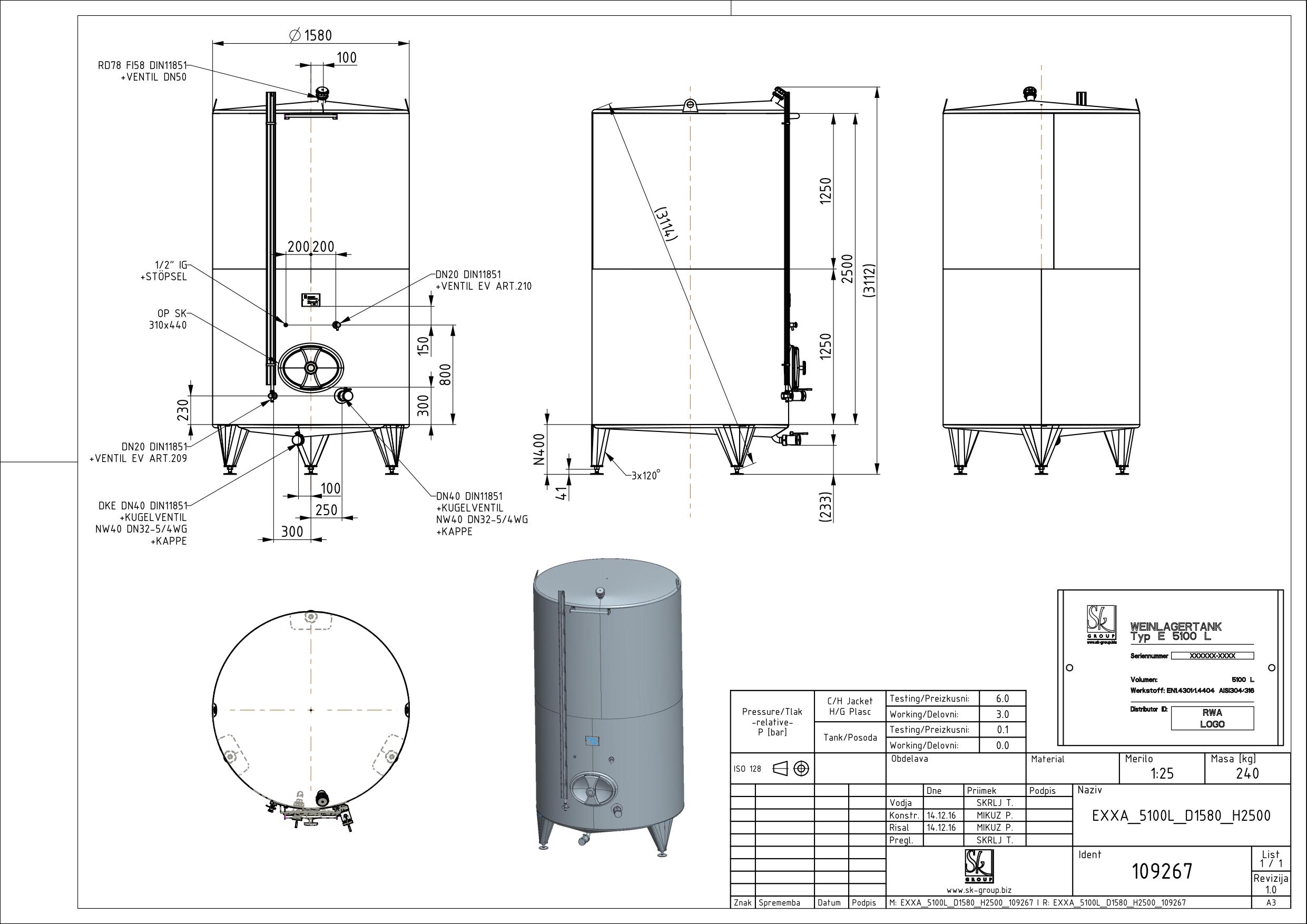

Classic storage tank
EXXA 5100 D1580 H2500 0/ATM RW
Material: 109267
Standard: RW
Nominal volume in L: 5100
Geometrical volume [l]: 5105
Internal diameter in mm: 1580
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
