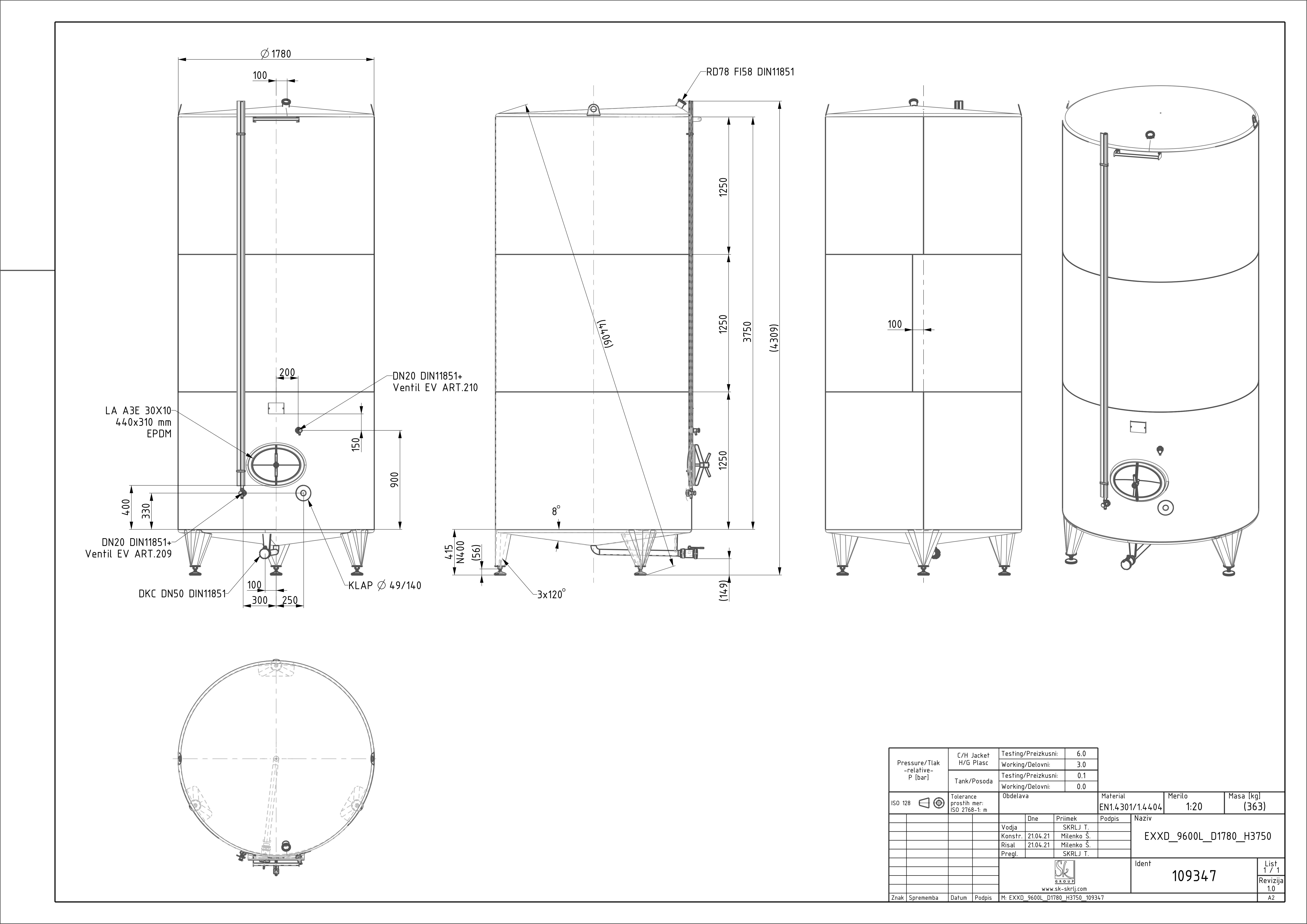

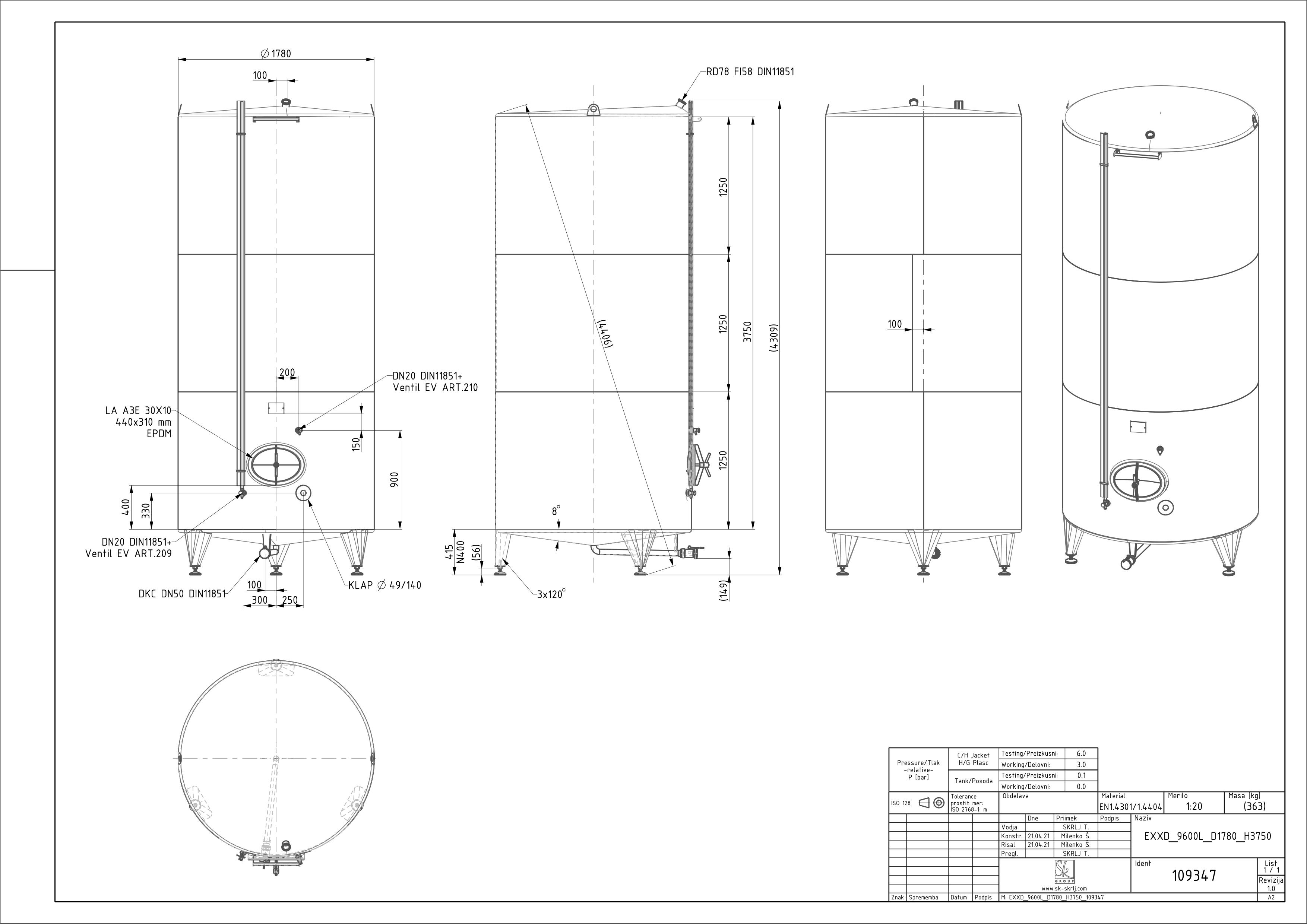

Classic storage tank
EXXD 9600 D1780 H3750 0/ATM KL
Material: 109347
Standard: KL
Nominal volume in L: 9600
Geometrical volume [l]: 9627
Internal diameter in mm: 1780
Height H in mm: 3750
Height Z in mm: 4400
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
