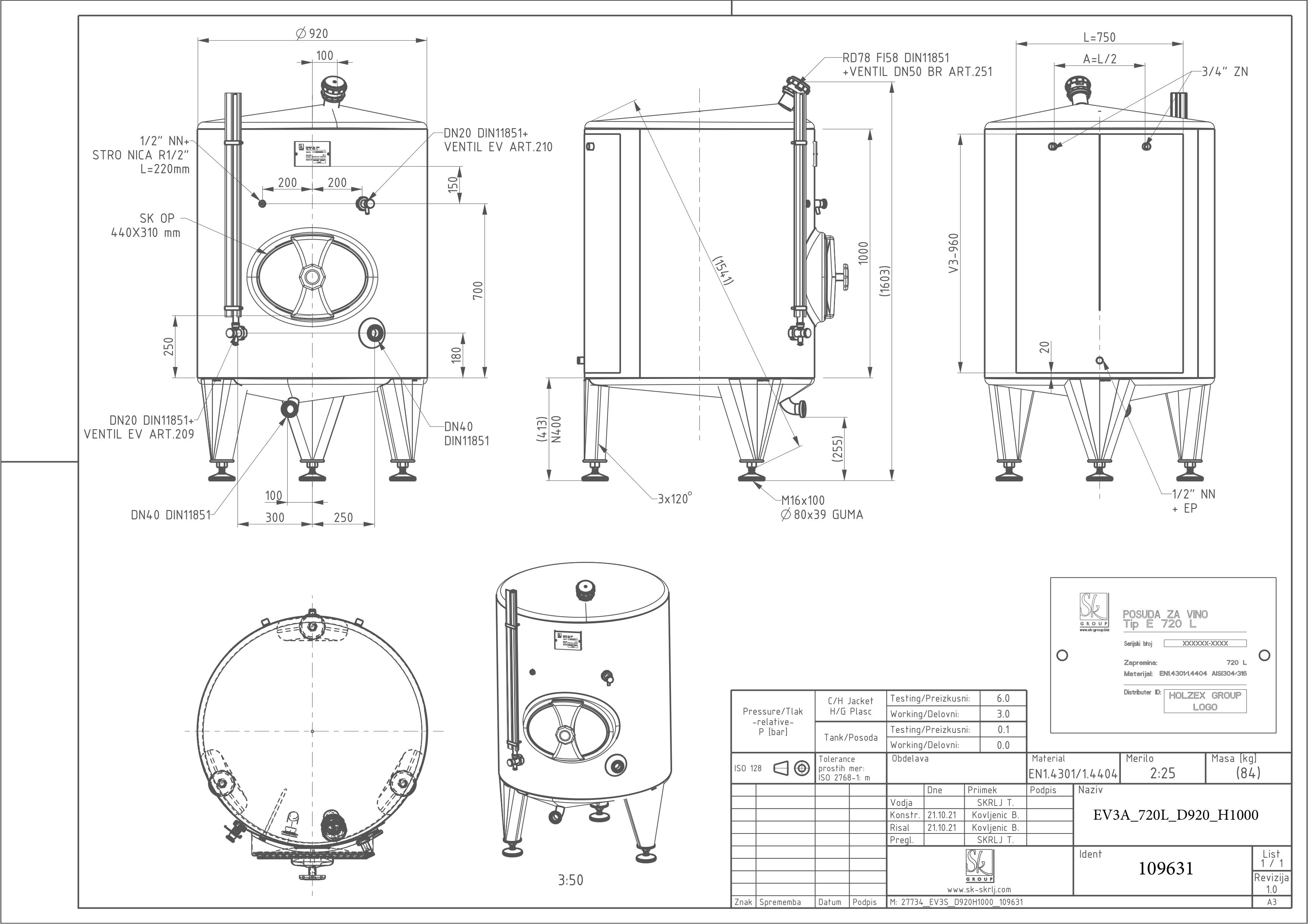

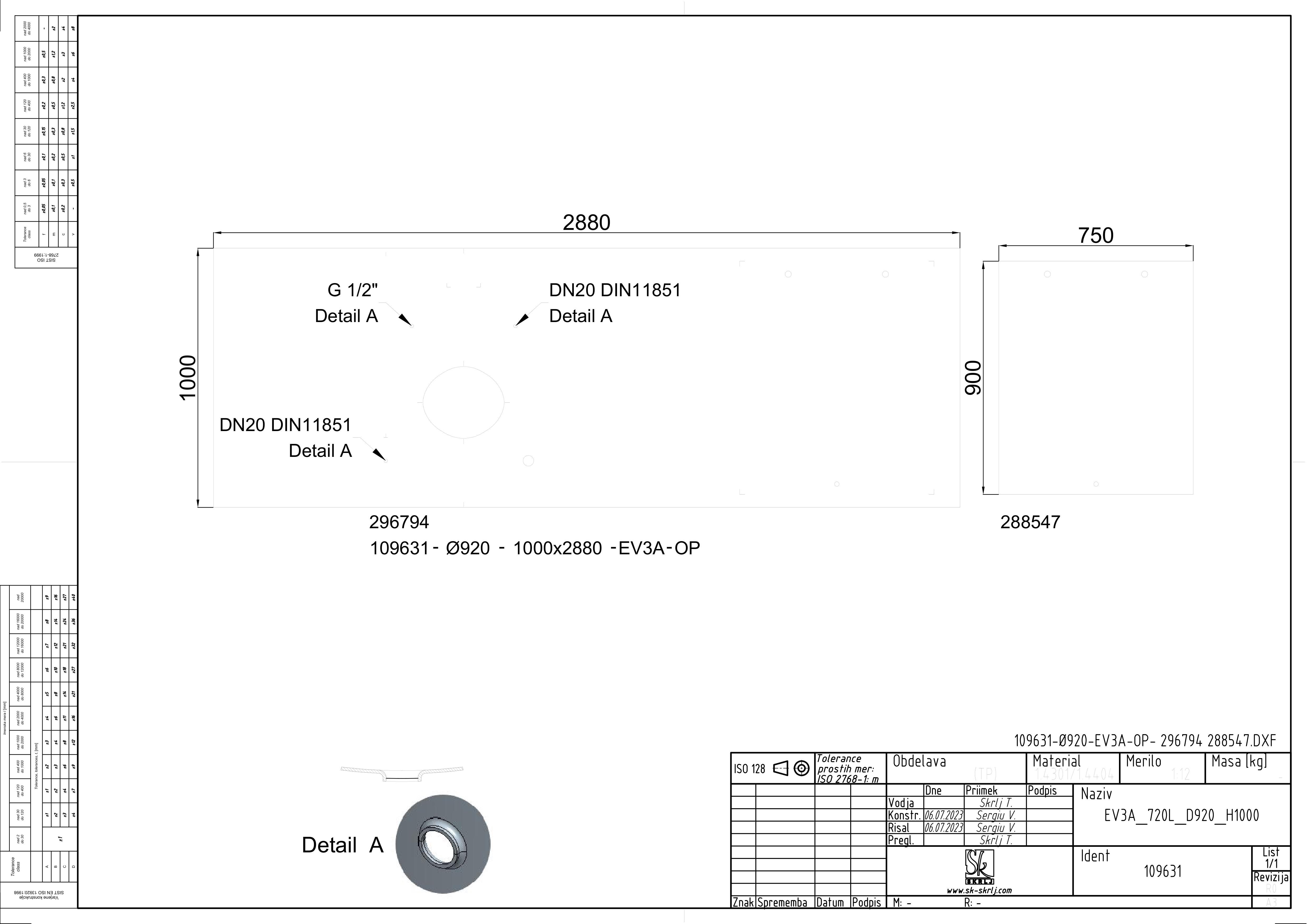

Classic storage tank with double jacket
EV3S 720 D920 H1000 0/ATM
Material: 109631
Nominal volume in L: 720
Geometrical volume [l]: 734
Internal diameter in mm: 920
Height H in mm: 1000
Height Z in mm: 1650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
