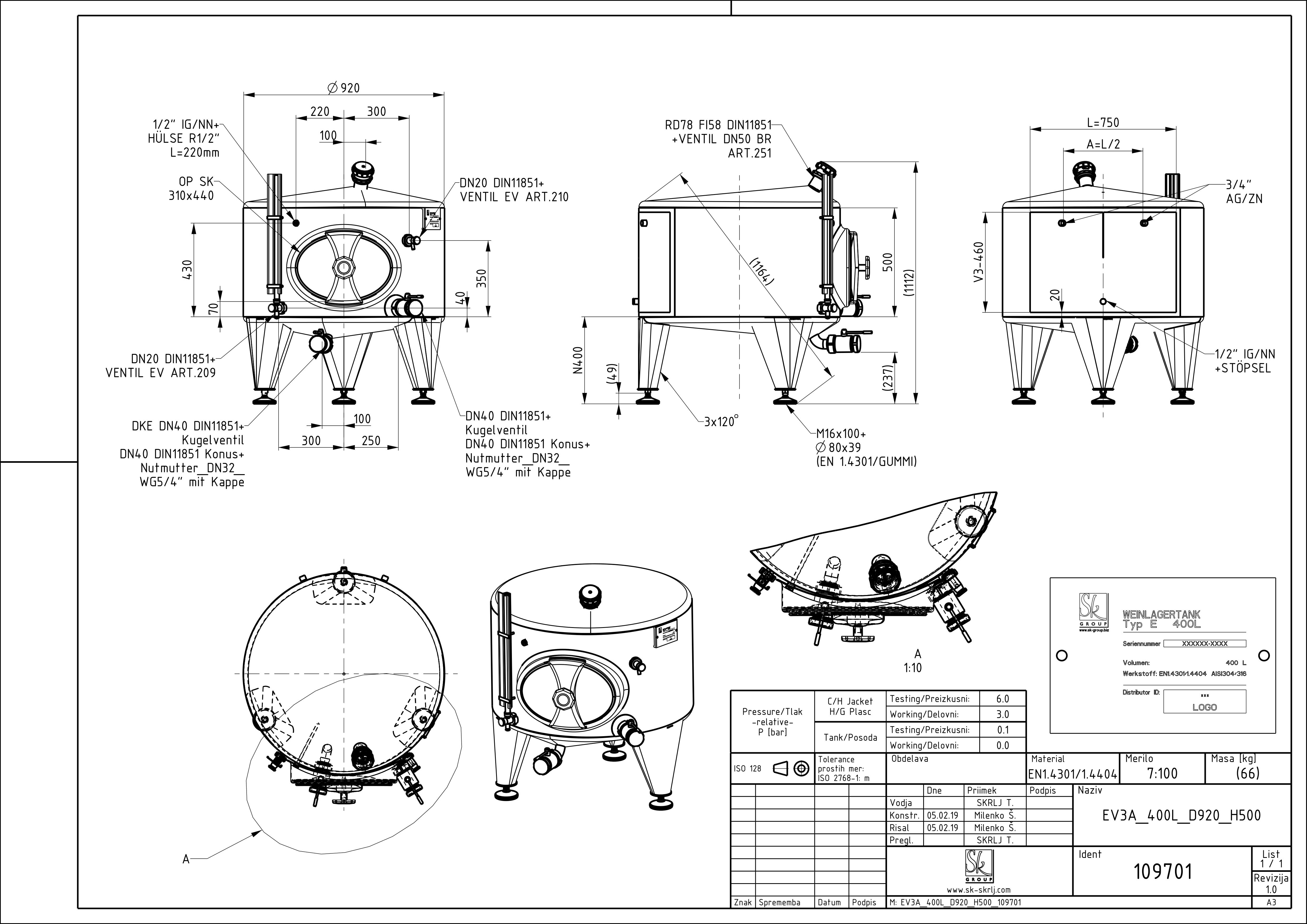

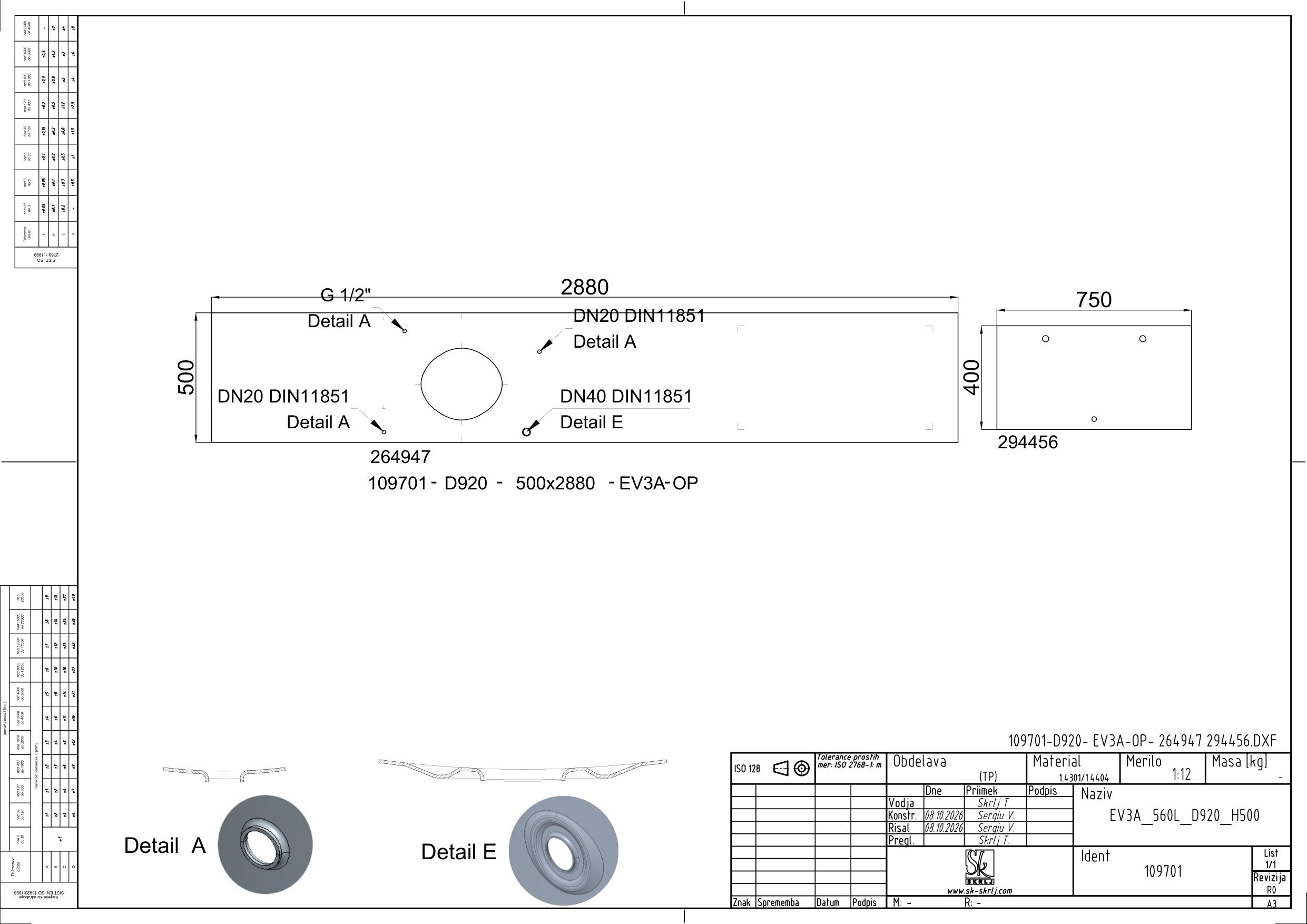

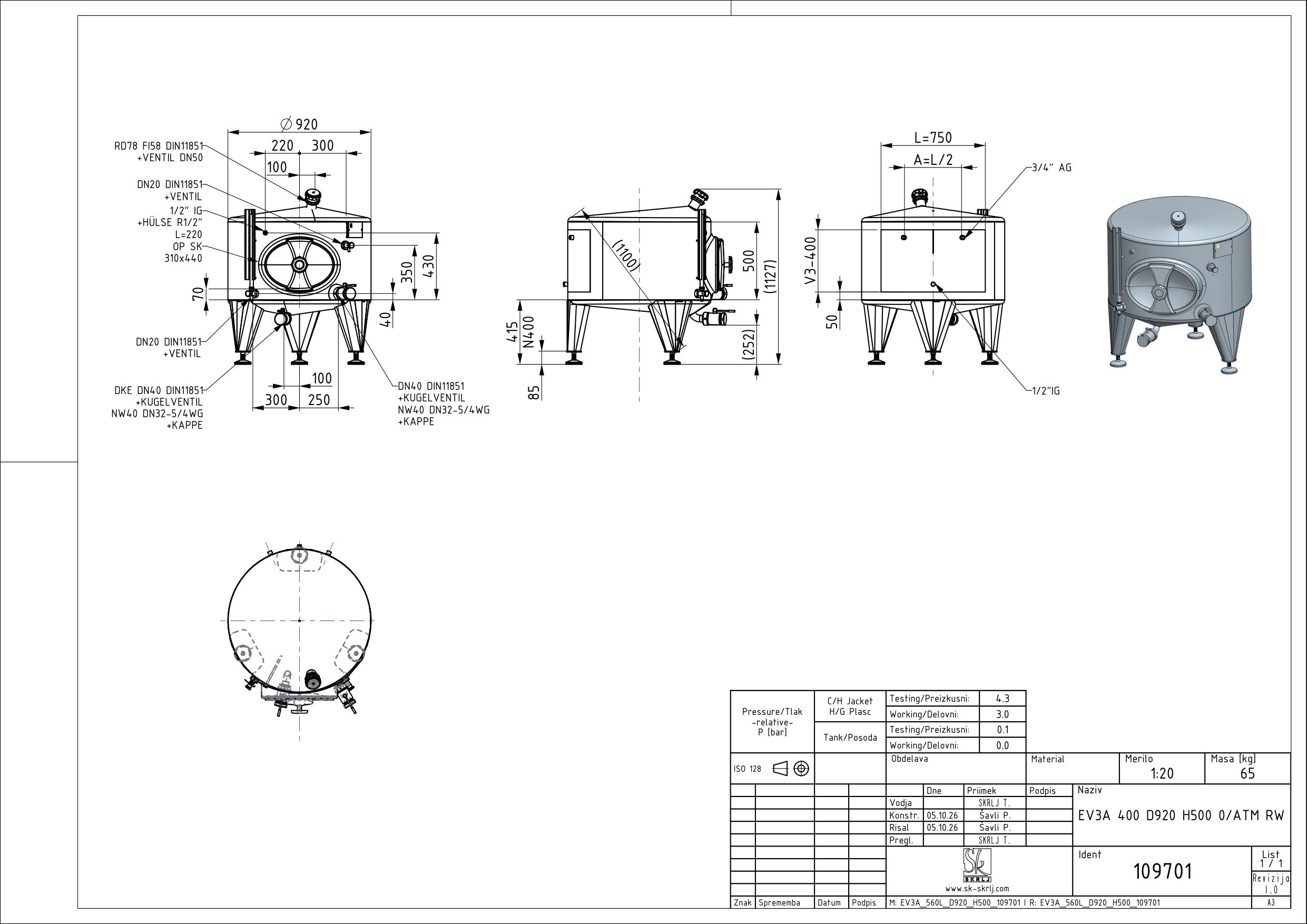

Classic storage tank with double jacket
EV3A 400 D920 H500 0/ATM RW
Material: 109701
Standard: RW
Nominal volume in L: 400
Geometrical volume [l]: 402
Internal diameter in mm: 920
Height H in mm: 500
Height Z in mm: 1150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
