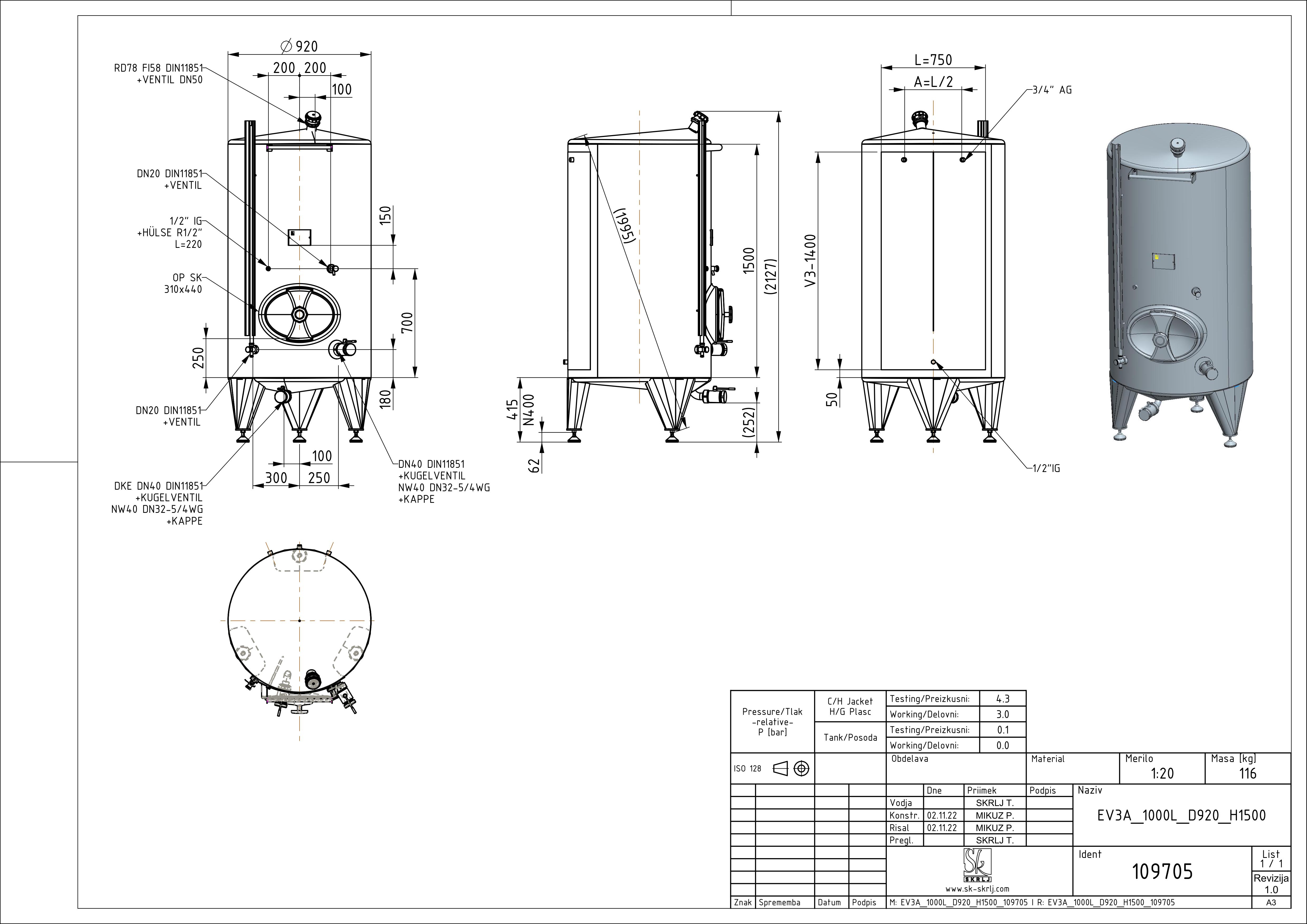

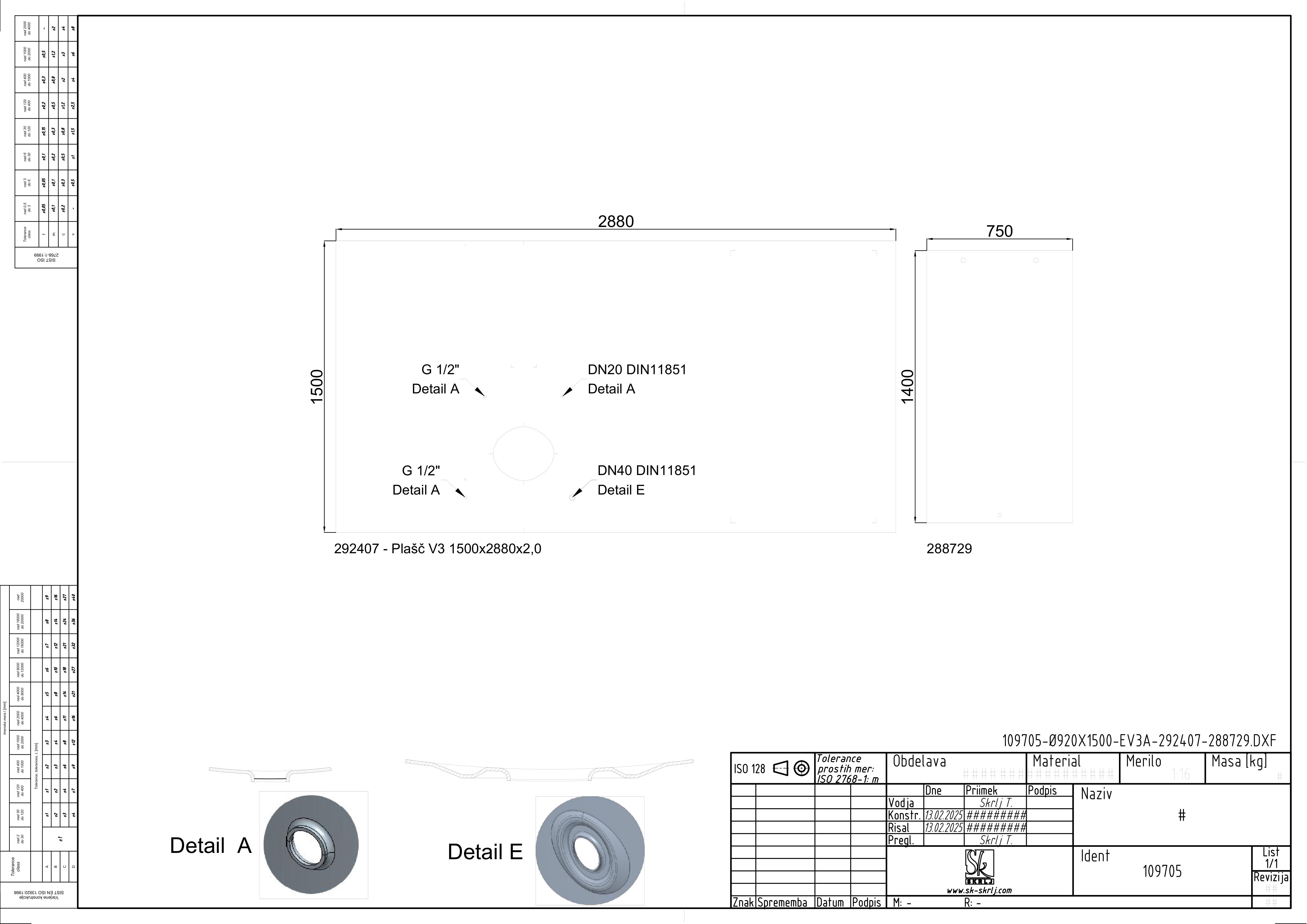

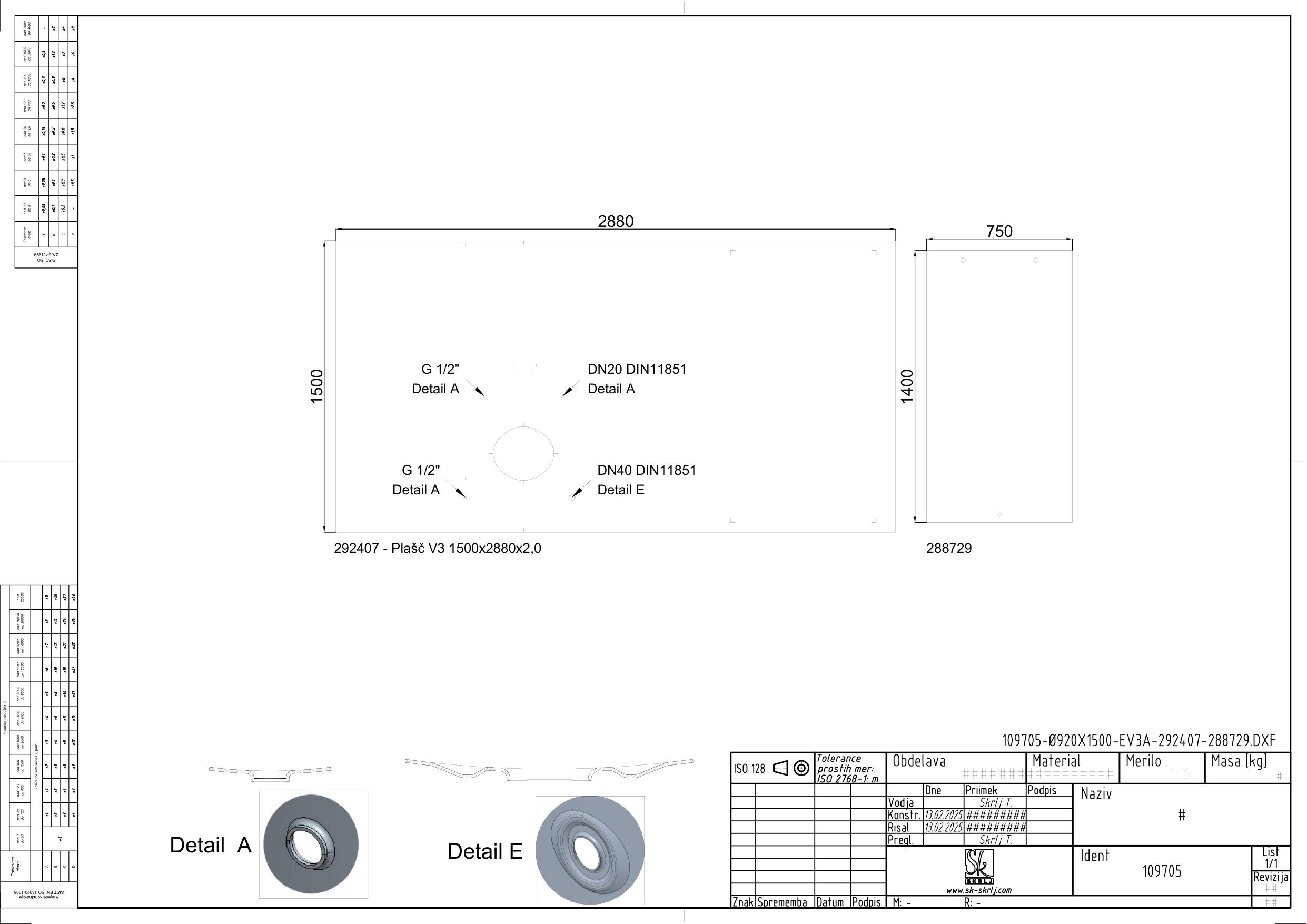

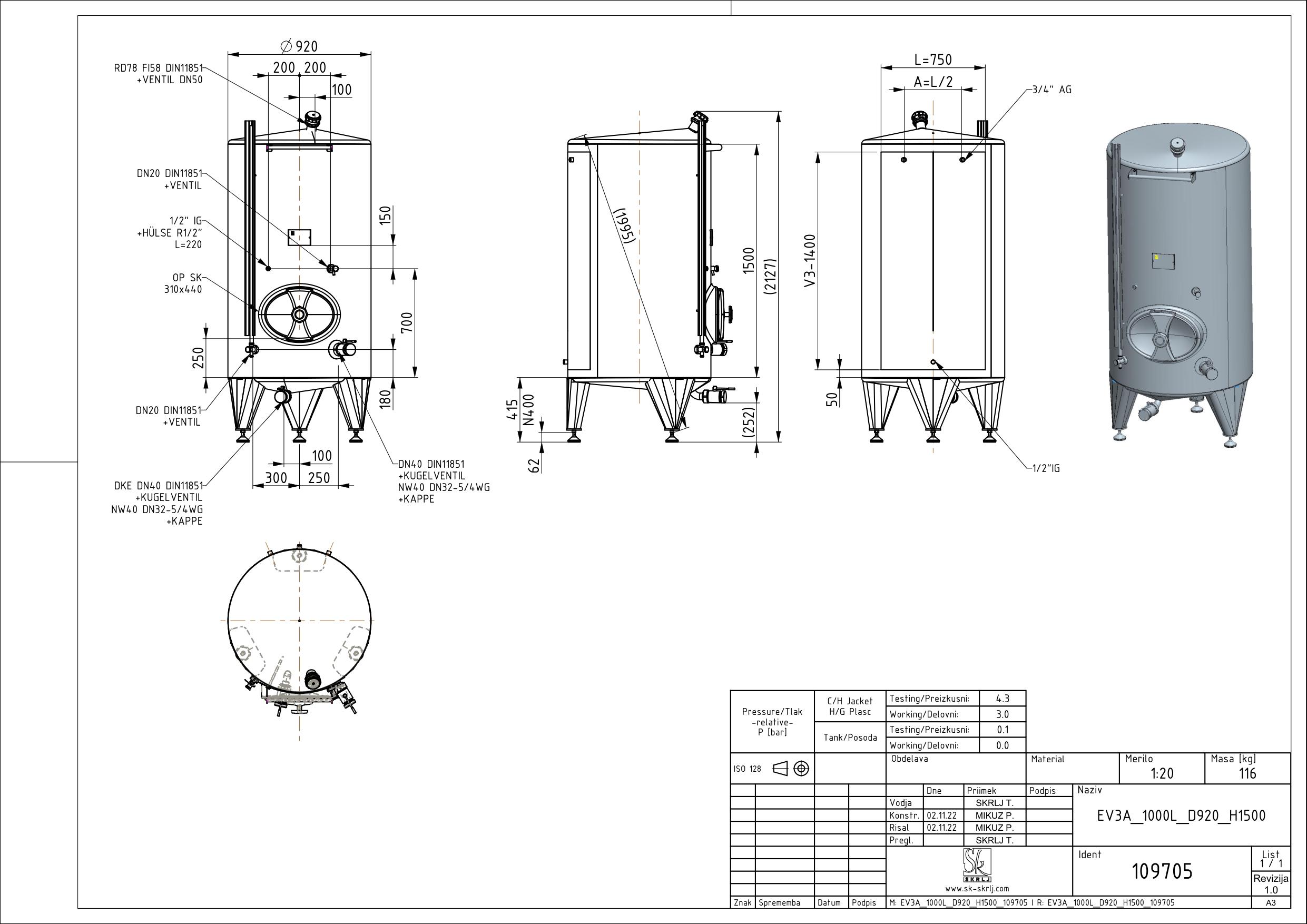

Classic storage tank with double jacket
EV3A 1000 D920 H1500 0/ATM
Material: 109705
In Stock
Standard: RW
Nominal volume in L: 1000
Geometrical volume [l]: 1066
Internal diameter in mm: 920
Jacket height H in mm: 1500
Total height Z in mm: 2150
Type: Vertical tank - bottom KE - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
