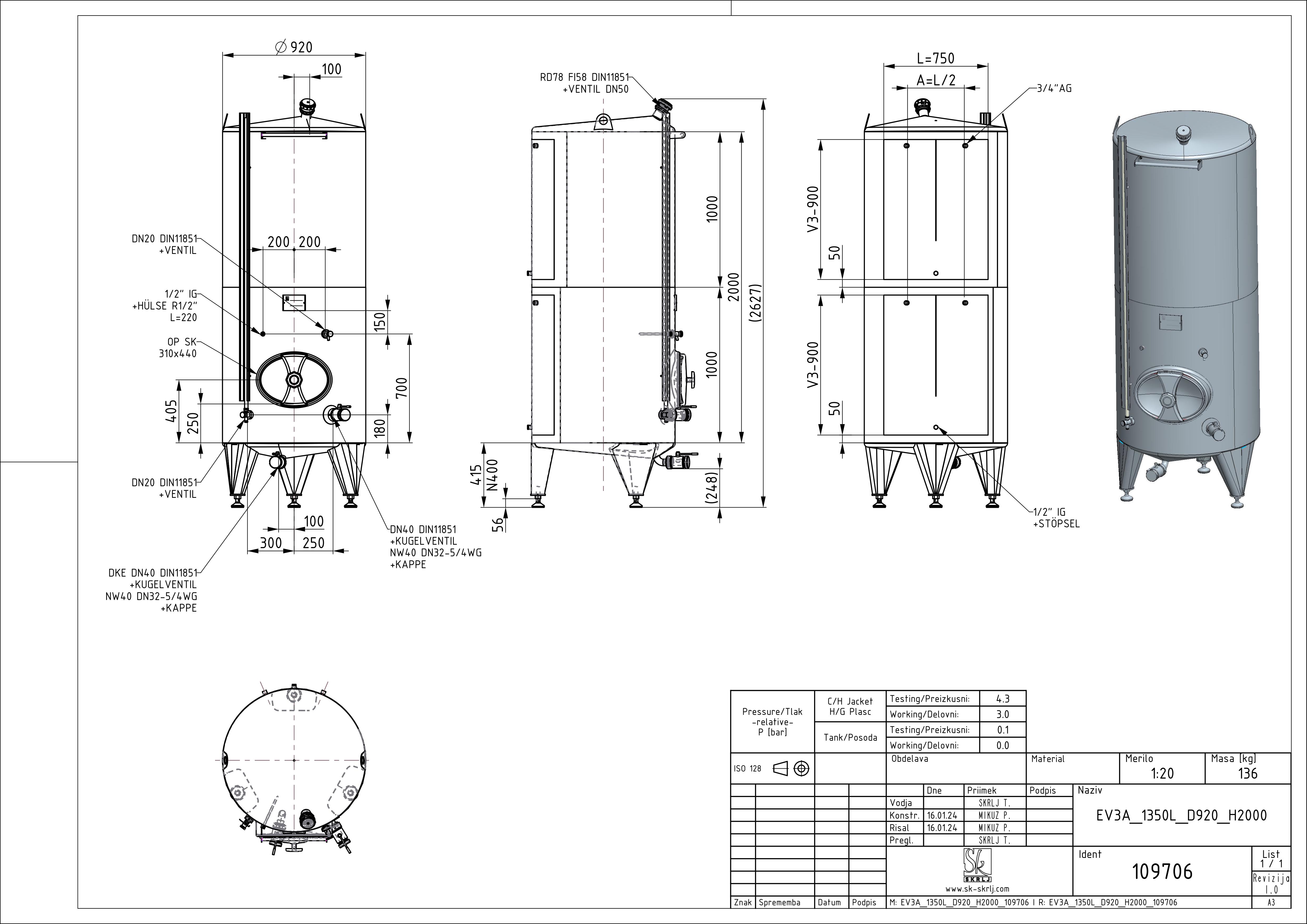

Classic storage tank with double jacket
EV3A 1350 D920 H2000 0/ATM
Material: 109706
Standard: RW
Nominal volume in L: 1350
Geometrical volume [l]: 1399
Internal diameter in mm: 920
Jacket height H in mm: 2000
Total height Z in mm: 2650
Type: VERT KE-E-KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
