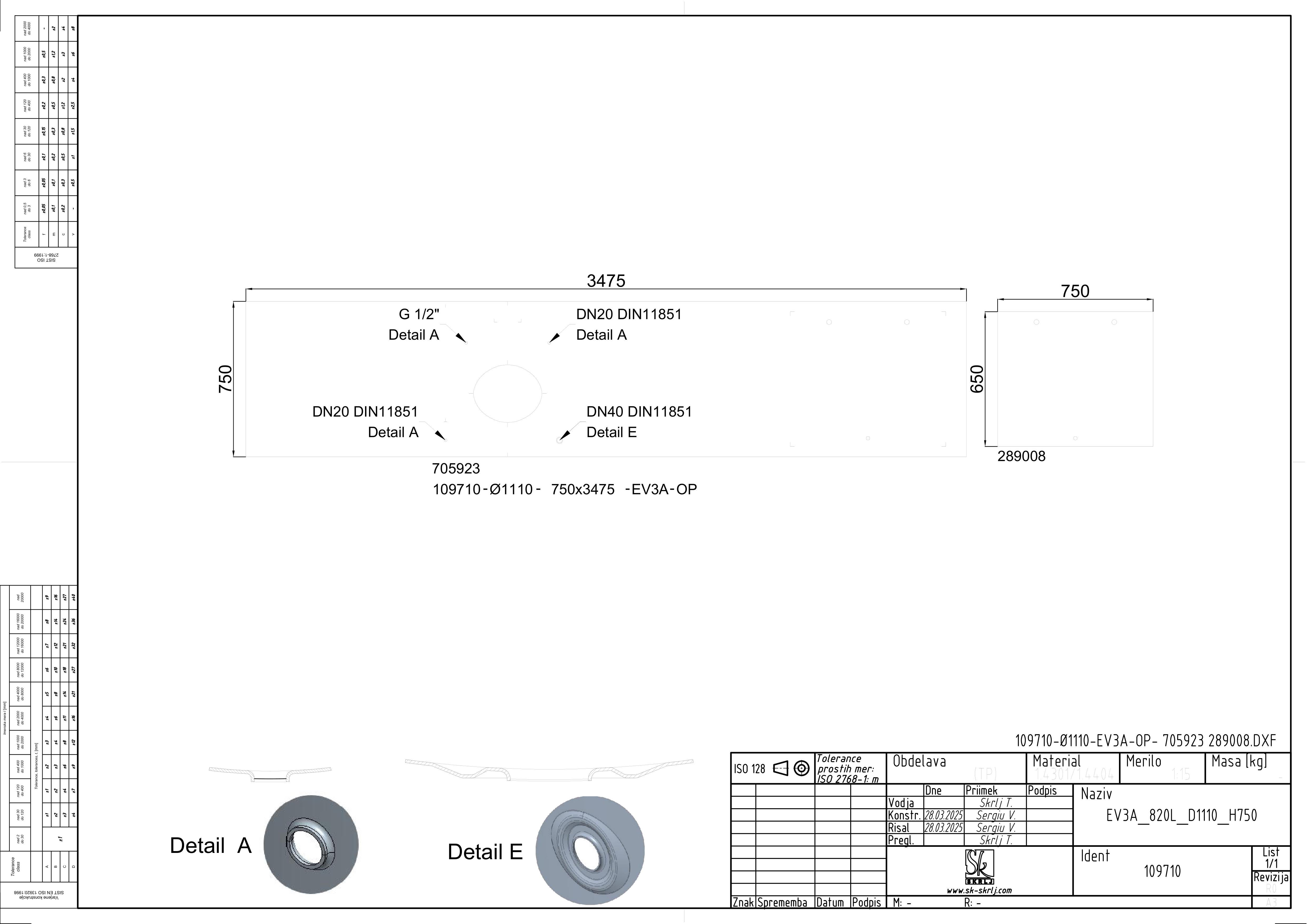

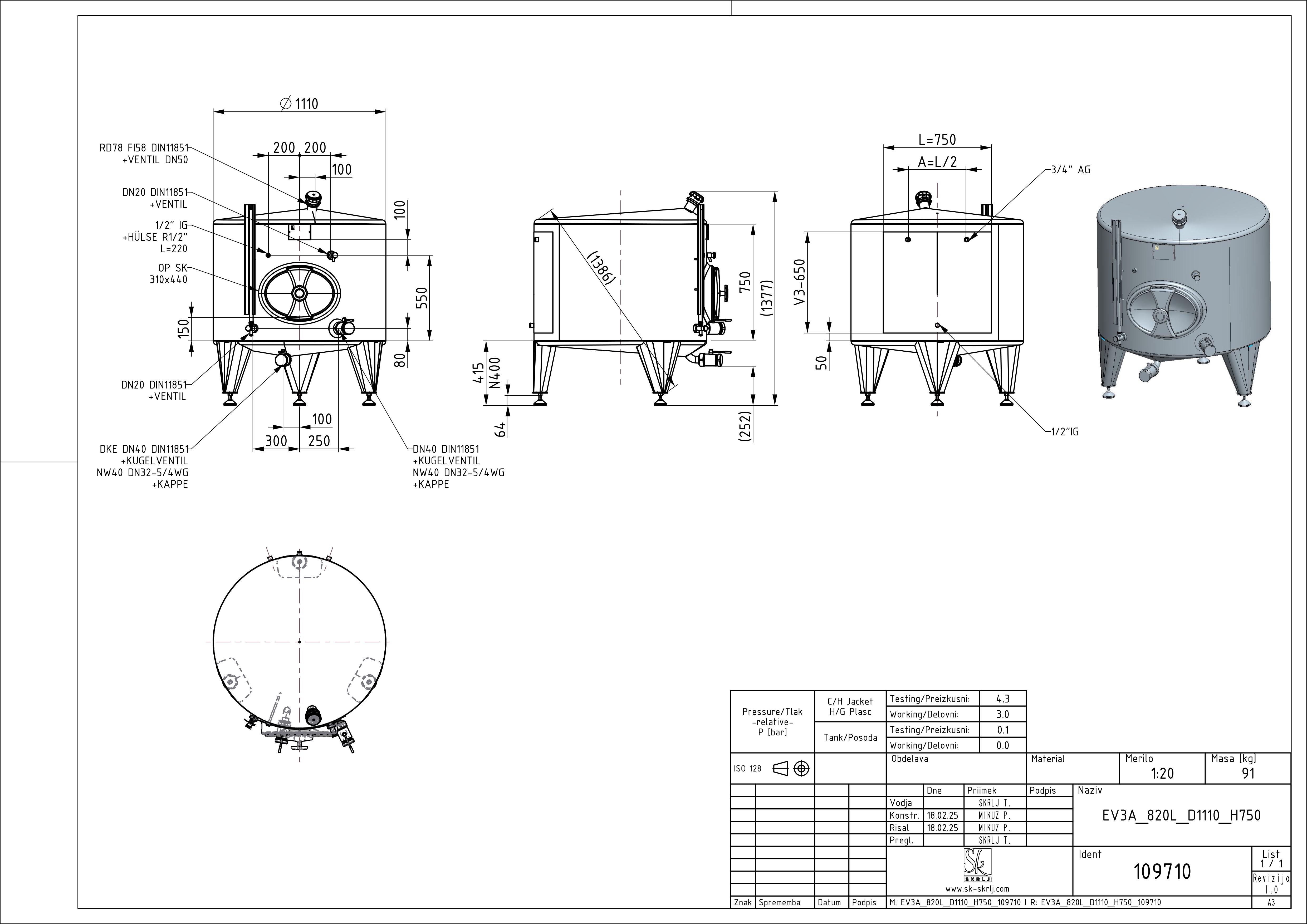

Classic storage tank with double jacket
EV3A 820 D1110 H750 0/ATM RW
Material: 109710
Standard: RW
Nominal volume in L: 820
Geometrical volume [l]: 826
Internal diameter in mm: 1110
Height H in mm: 750
Height Z in mm: 1400
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
