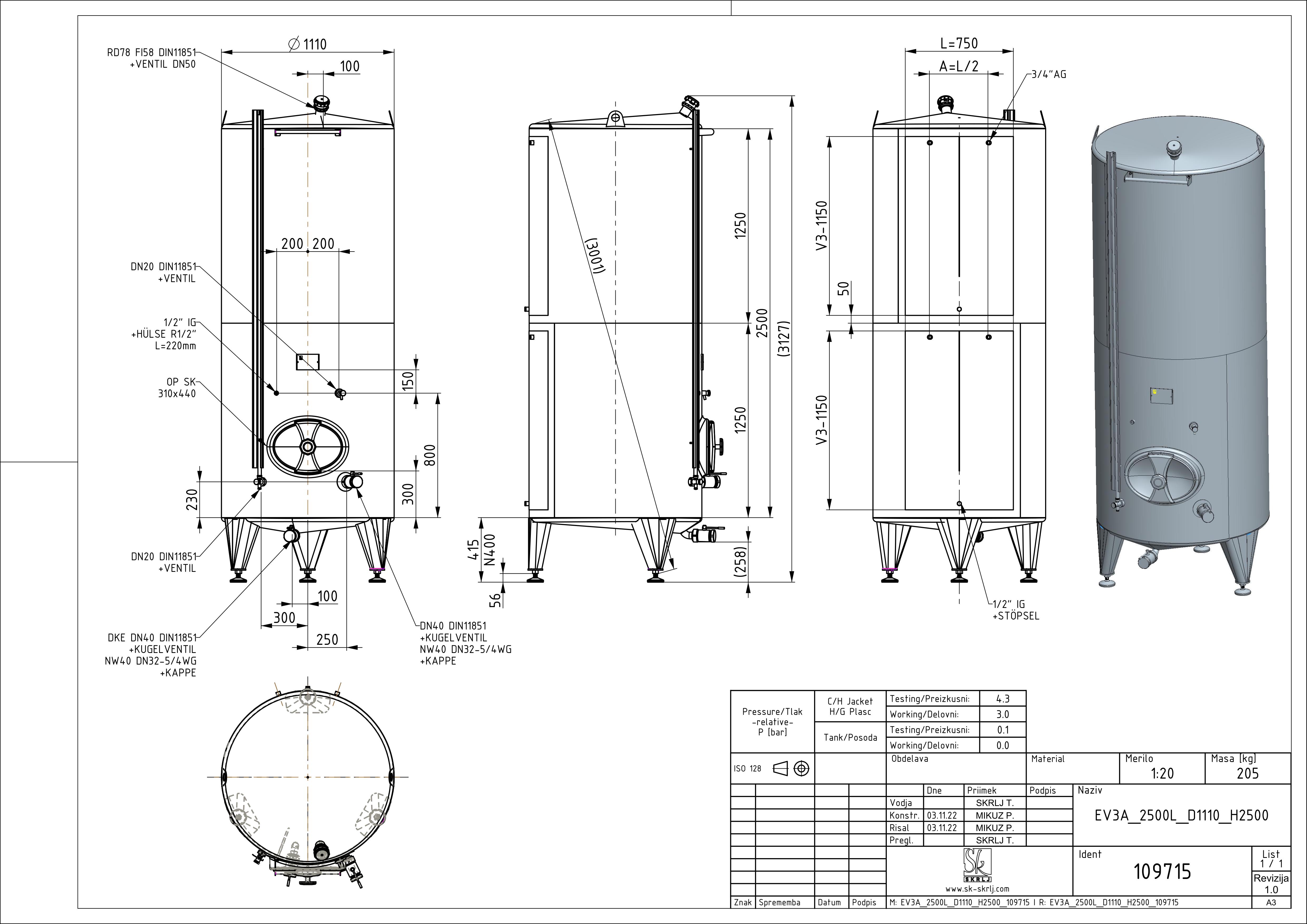

Classic storage tank with double jacket
EV3A 2500 D1110 H2500 0/ATM RW
Material: 109715
In Stock
Standard: RW
Nominal volume in L: 2500
Geometrical volume [l]: 2520
Internal diameter in mm: 1110
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
