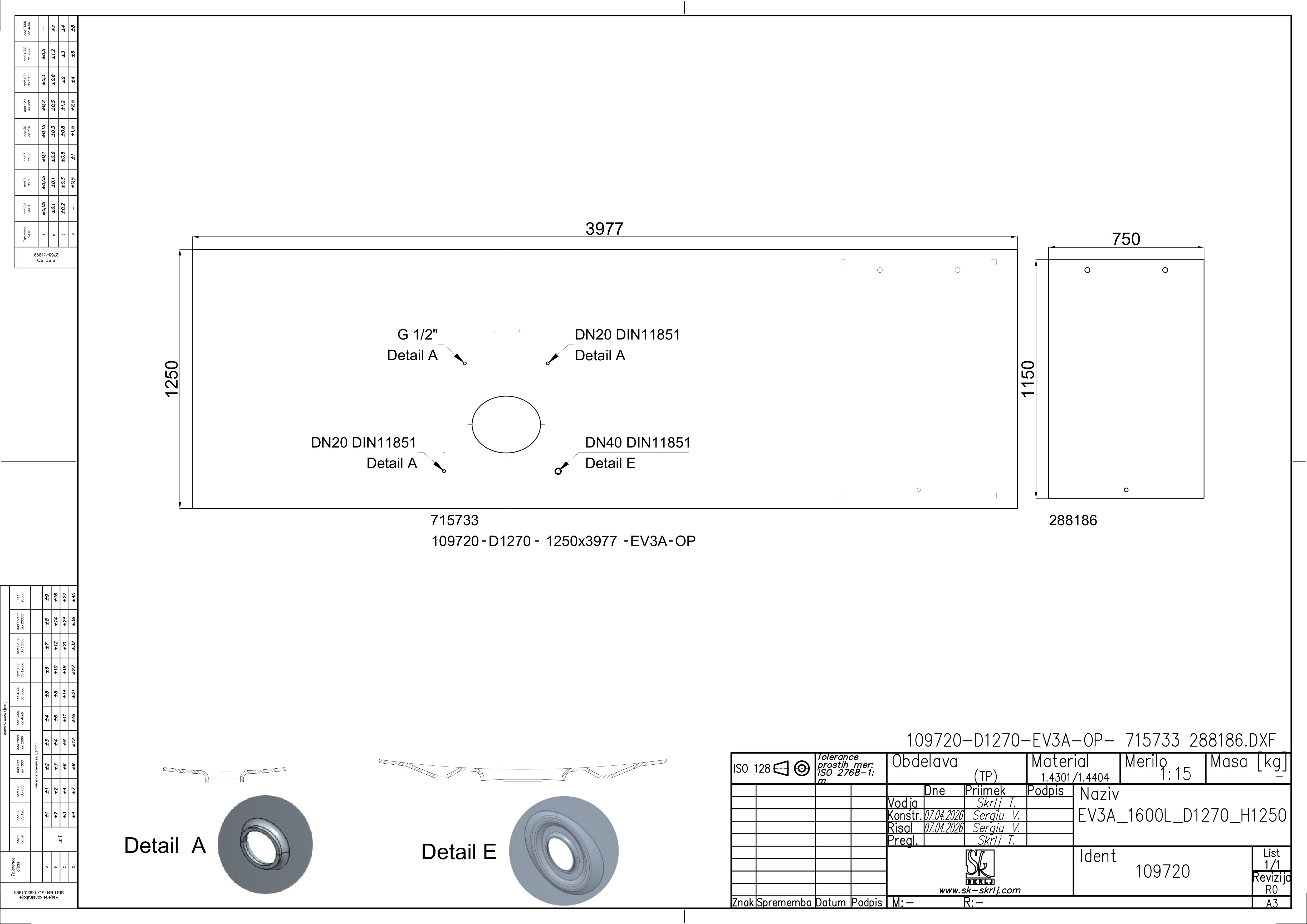

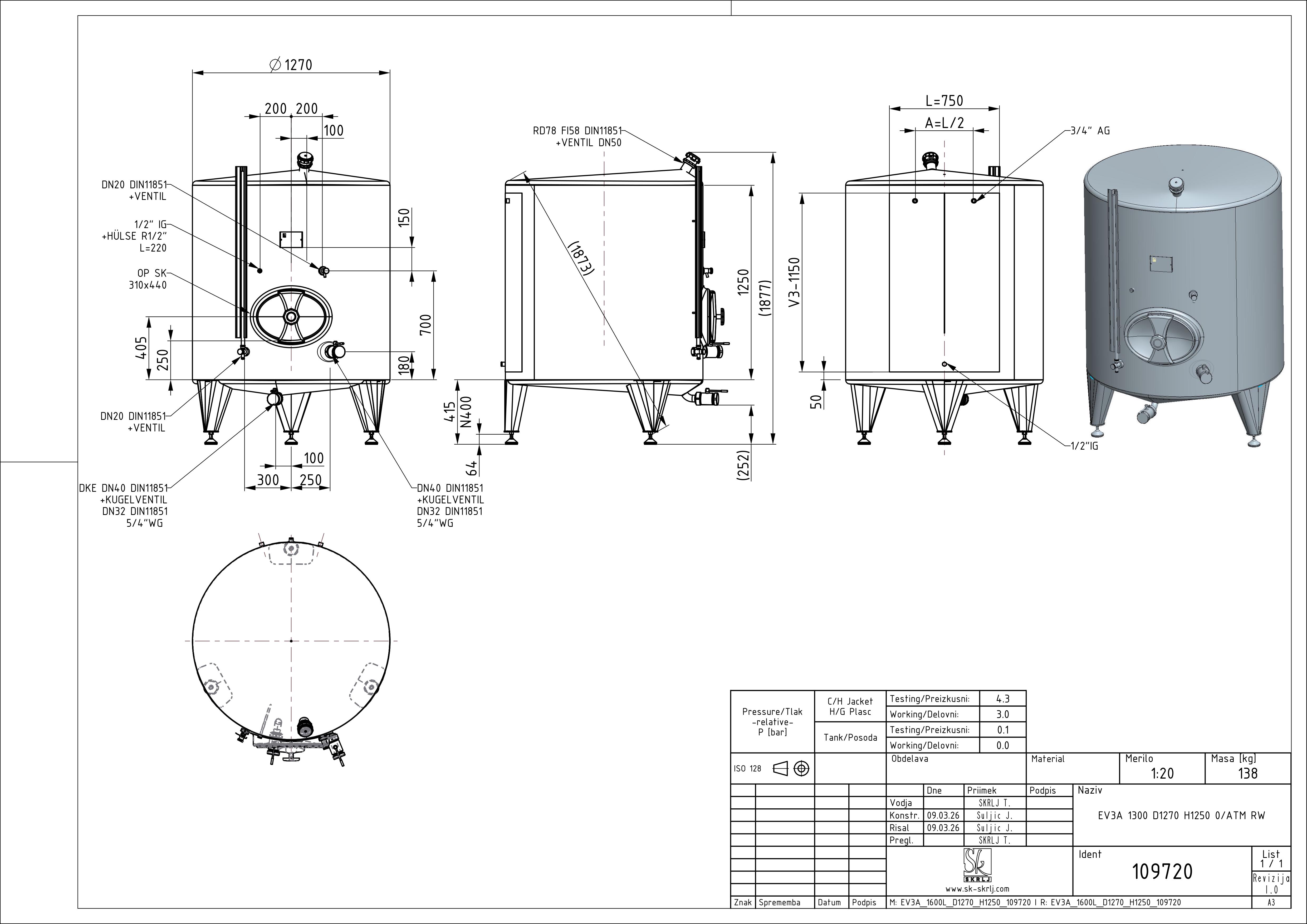

Classic storage tank with double jacket
EV3A 1600 D1270 H1250 0/ATM
Material: 109720
Standard: RW
Nominal volume in L: 1600
Geometrical volume [l]: 1715
Internal diameter in mm: 1270
Jacket height H in mm: 1250
Total height Z in mm: 1900
Type: Vertical tank - bottom KC, centric cone - jacket E, cylindrical - lid KC, centric cone
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
