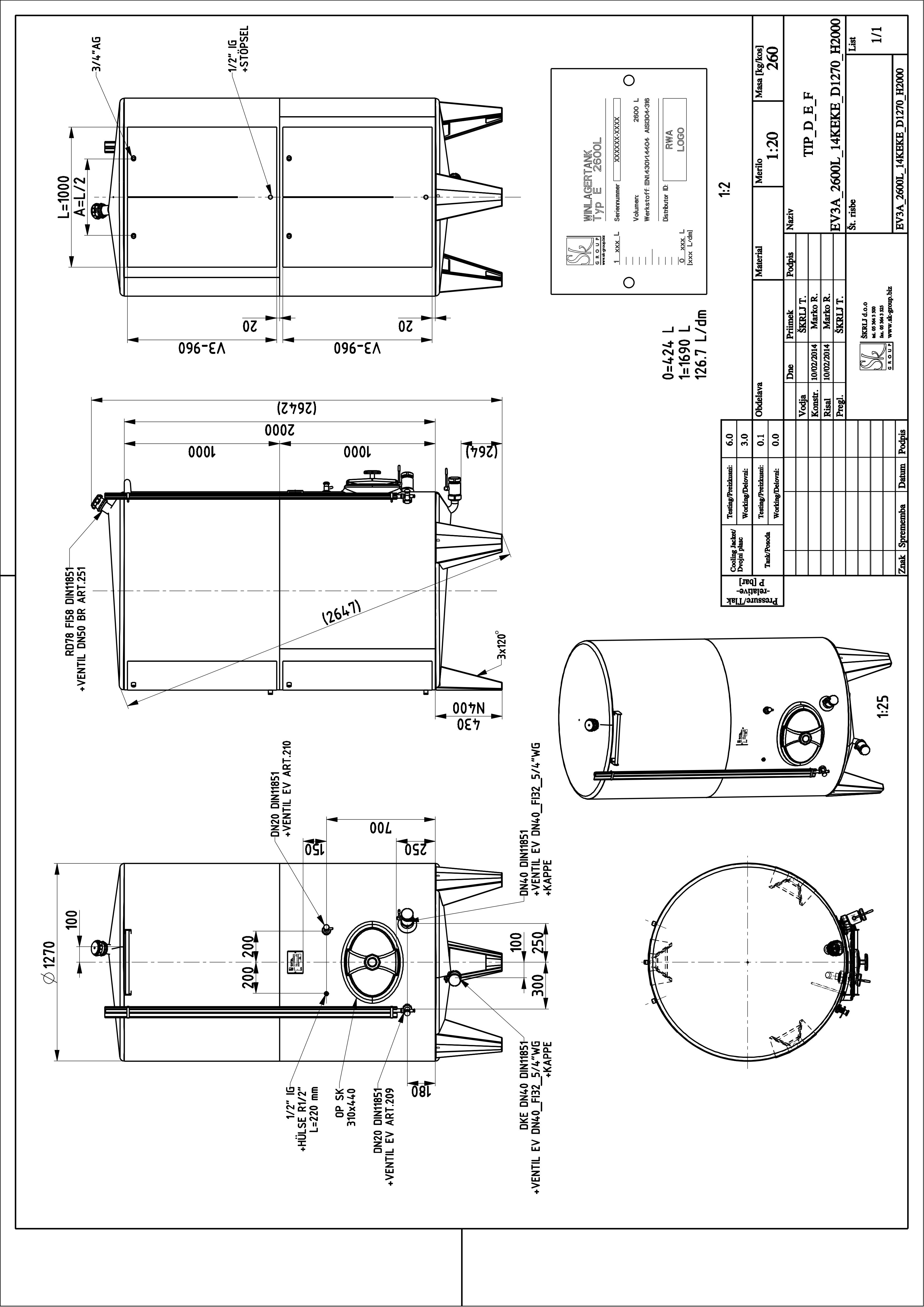

Classic storage tank with double jacket
EV3A 2600 D1270 H2000 0/ATM RW
Material: 109722
Standard: RW
Nominal volume in L: 2600
Geometrical volume [l]: 2665
Internal diameter in mm: 1270
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
