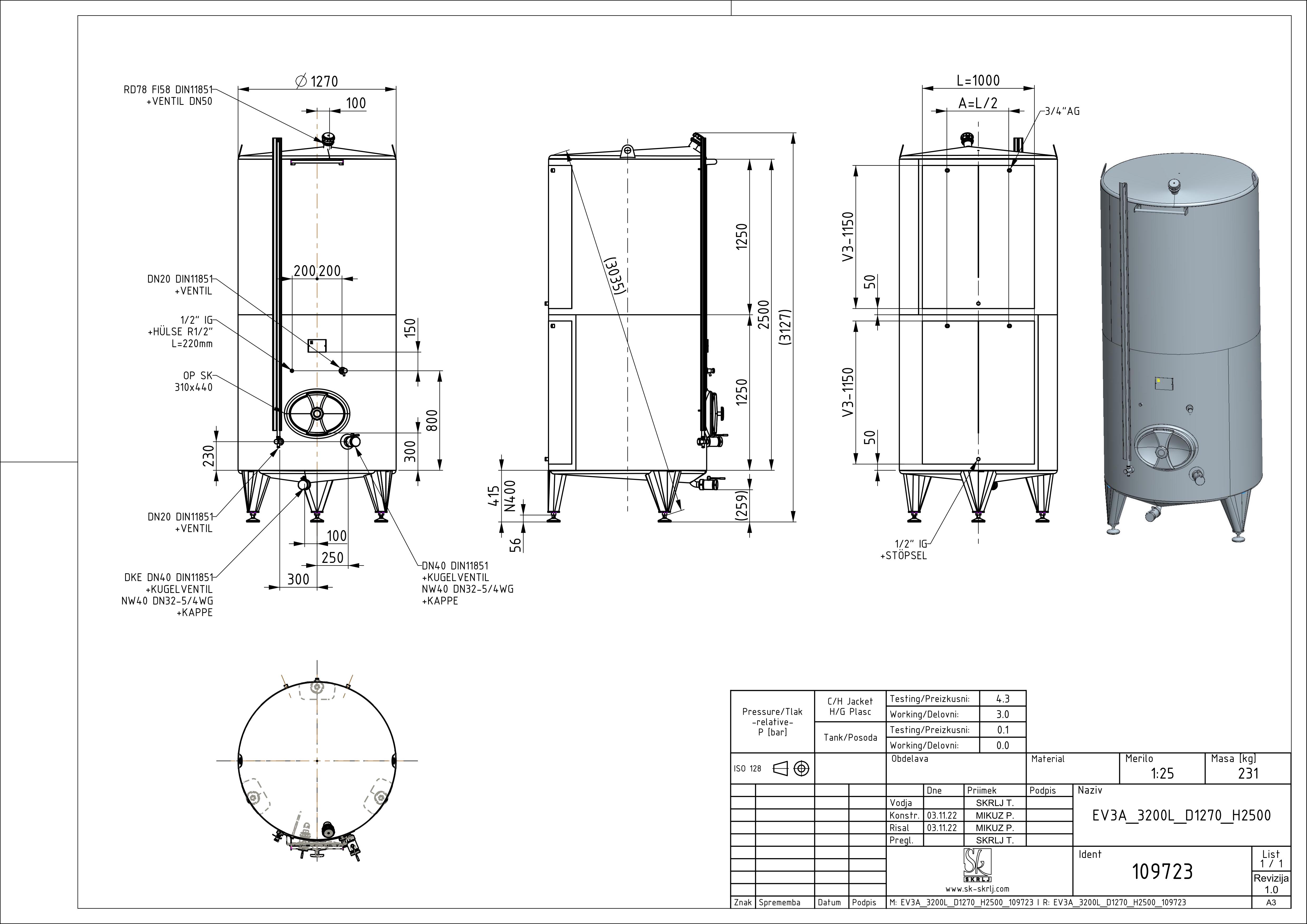

Classic storage tank with double jacket
EV3A 3200 D1270 H2500 0/ATM RW
Material: 109723
Standard: RW
Nominal volume in L: 3200
Geometrical volume [l]: 3298
Internal diameter in mm: 1270
Height H in mm: 2500
Height Z in mm: 3150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
