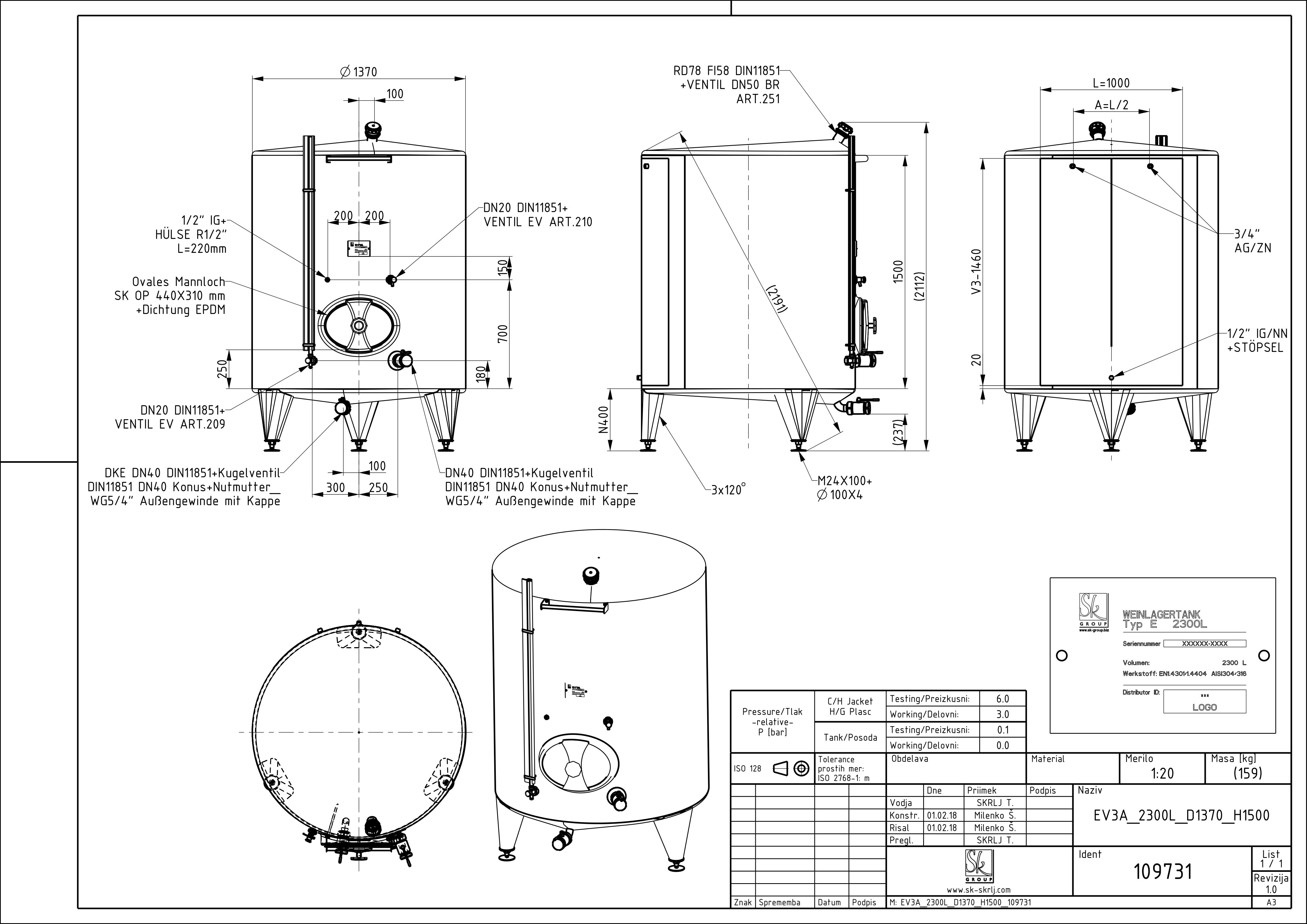

Classic storage tank with double jacket
EV3A 2300 D1370 H1500 0/ATM RW
Material: 109731
Standard: RW
Nominal volume in L: 2300
Geometrical volume [l]: 2364
Internal diameter in mm: 1370
Height H in mm: 1500
Height Z in mm: 2150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
