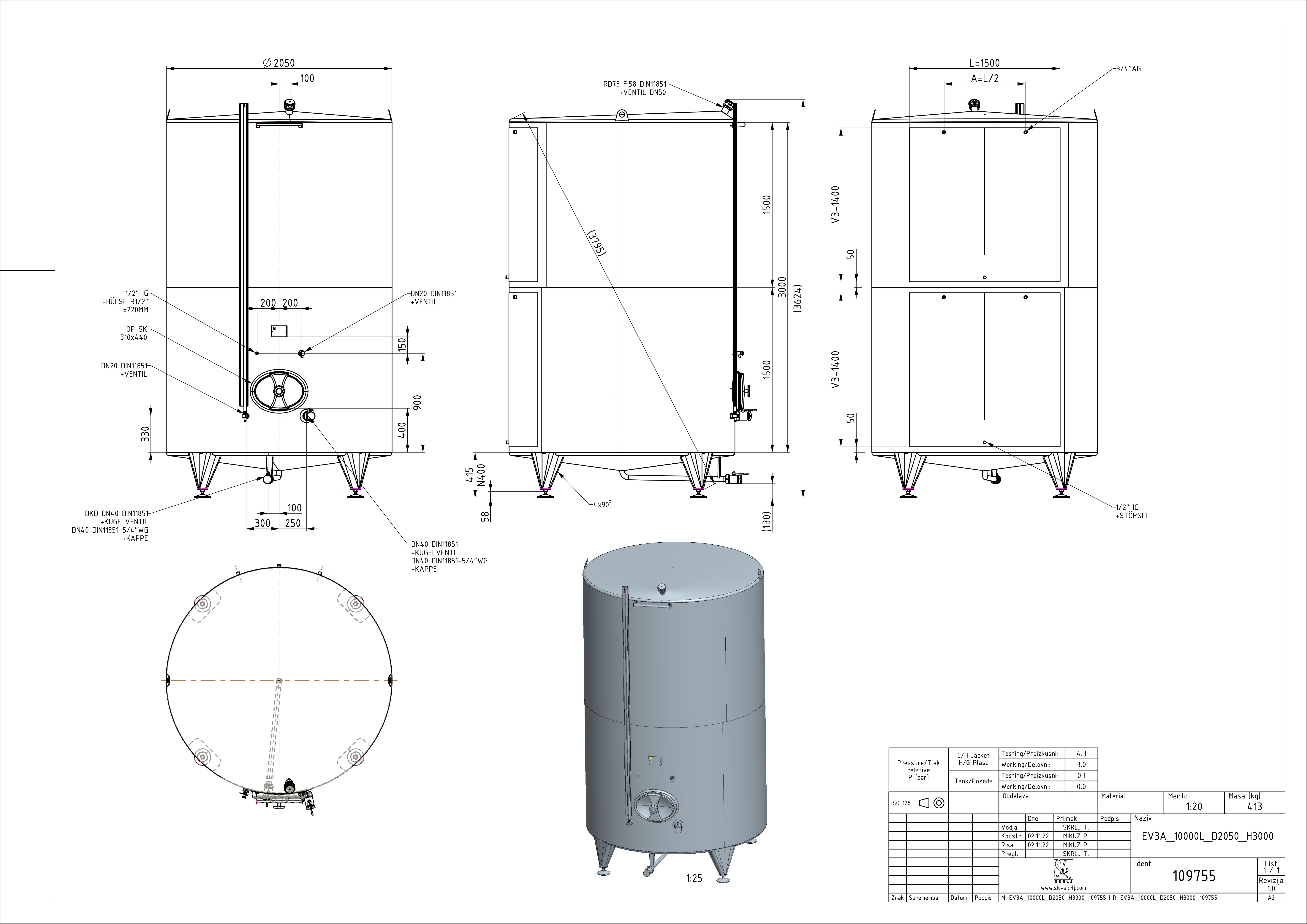

Classic storage tank with double jacket
EV3A 10000 D2050 H3000 0/ATM
Material: 109755
In Stock
Standard: RW
Nominal volume in L: 10000
Geometrical volume [l]: 10314
Internal diameter in mm: 2050
Jacket height H in mm: 3000
Total height Z in mm: 3650
Type: Vertical tank KC-E-KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
