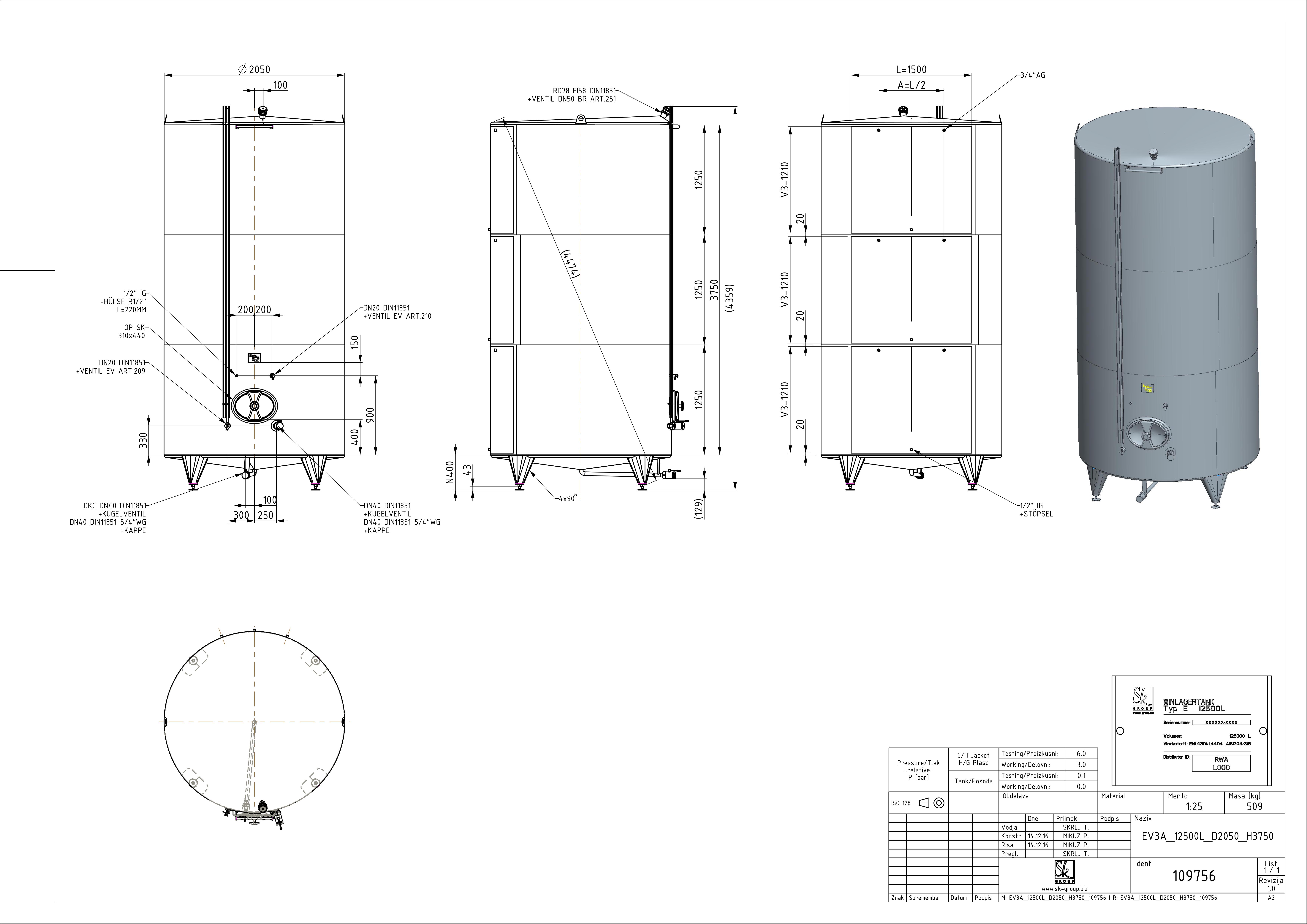

Classic storage tank with double jacket
EV3A 12500 D2050 H3750 0/ATM
Material: 109756
Standard: RW
Nominal volume in L: 12500
Geometrical volume [l]: 12789
Internal diameter in mm: 2050
Jacket height H in mm: 3750
Total height Z in mm: 4400
Type: Vertical tank - bottom KC - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
