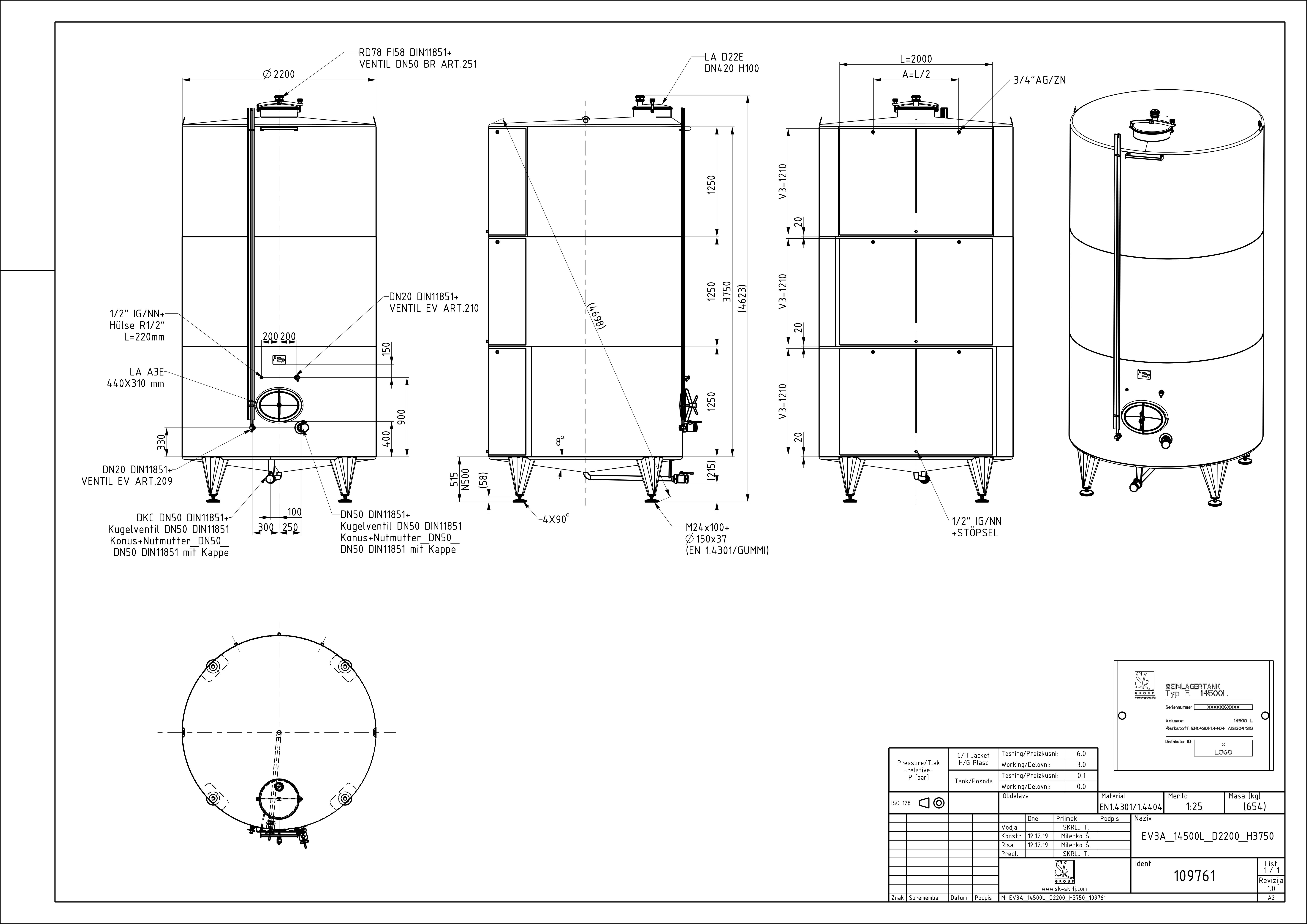

Classic storage tank with double jacket
EV3A 14500 D2200 H3750 0/ATM
Material: 109761
Standard: RW
Nominal volume in L: 14500
Geometrical volume [l]: 14743
Internal diameter in mm: 2200
Jacket height H in mm: 3750
Total height Z in mm: 4750
Type: Vertical tank - bottom KC - jacket E - lid KE
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
