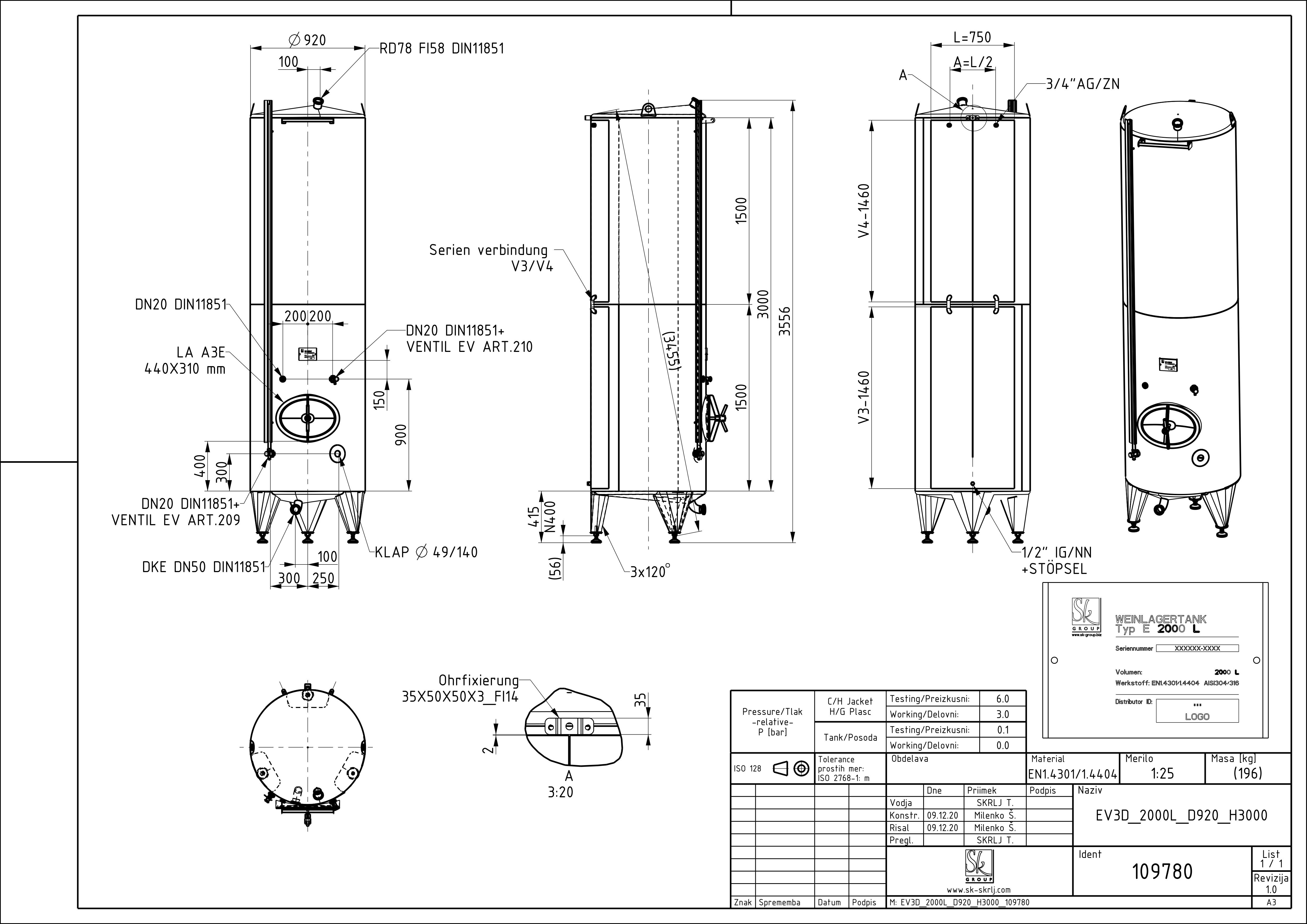

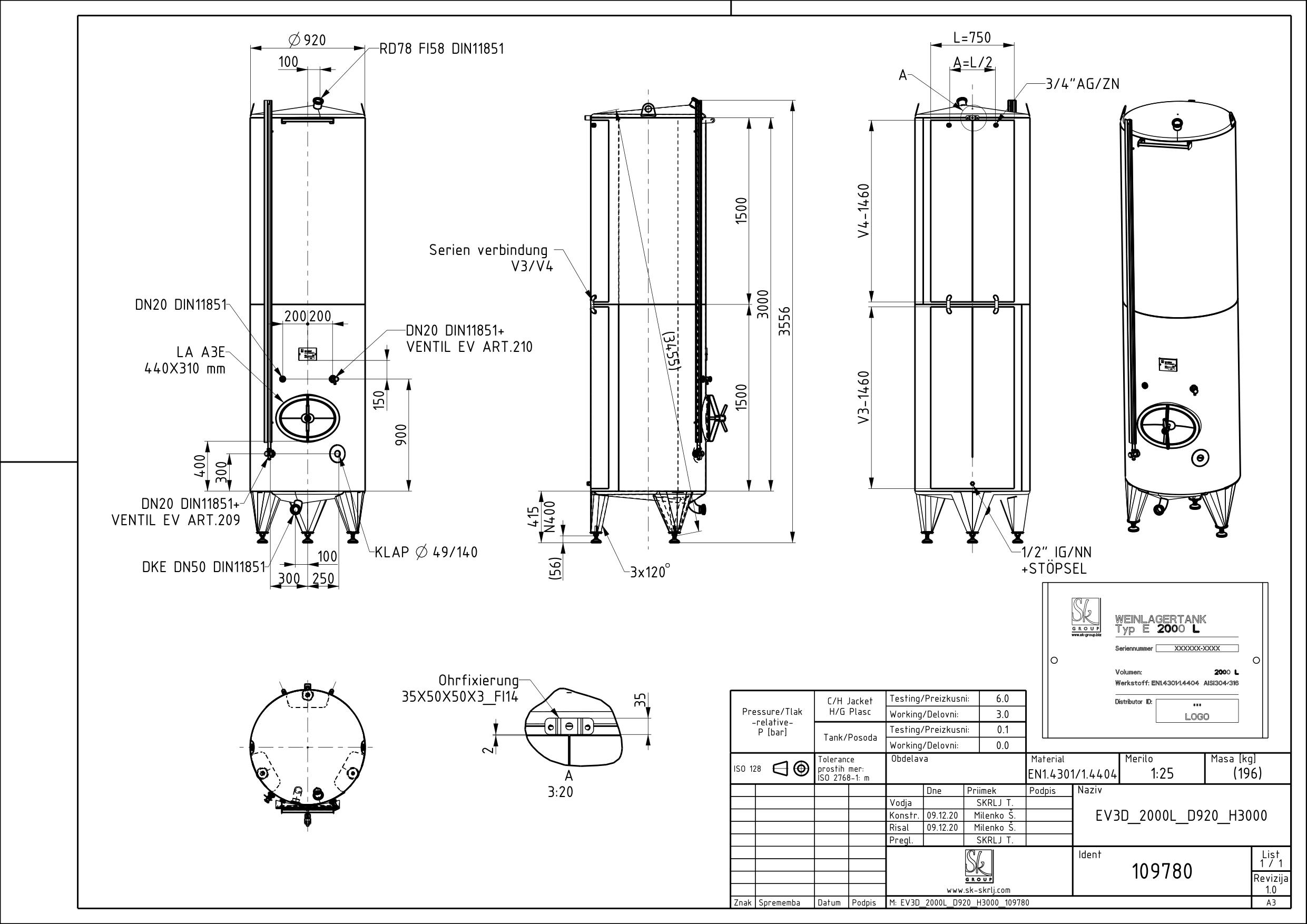

Classic storage tank with double jacket
EV3D 2000 D920 H3000 0/ATM KL
Material: 109780
Standard: KL
Nominal volume in L: 2000
Geometrical volume [l]: 2063
Internal diameter in mm: 920
Height H in mm: 3000
Height Z in mm: 3650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
