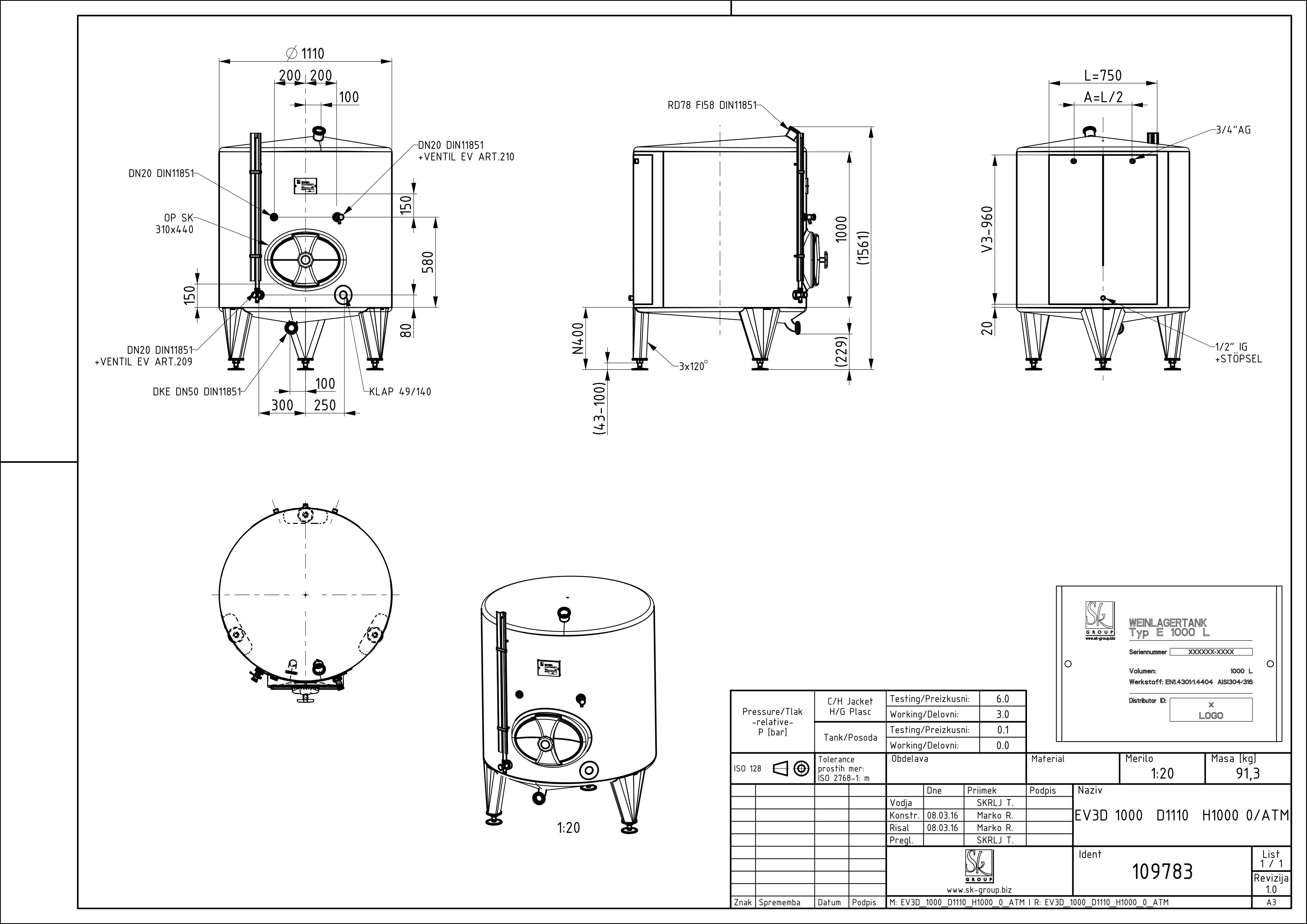

Classic storage tank with double jacket
EV3D 1000 D1110 H1000 0/ATM KL
Material: 109783
Standard: KL
Nominal volume in L: 1000
Geometrical volume [l]: 1068
Internal diameter in mm: 1110
Height H in mm: 1000
Height Z in mm: 1650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
