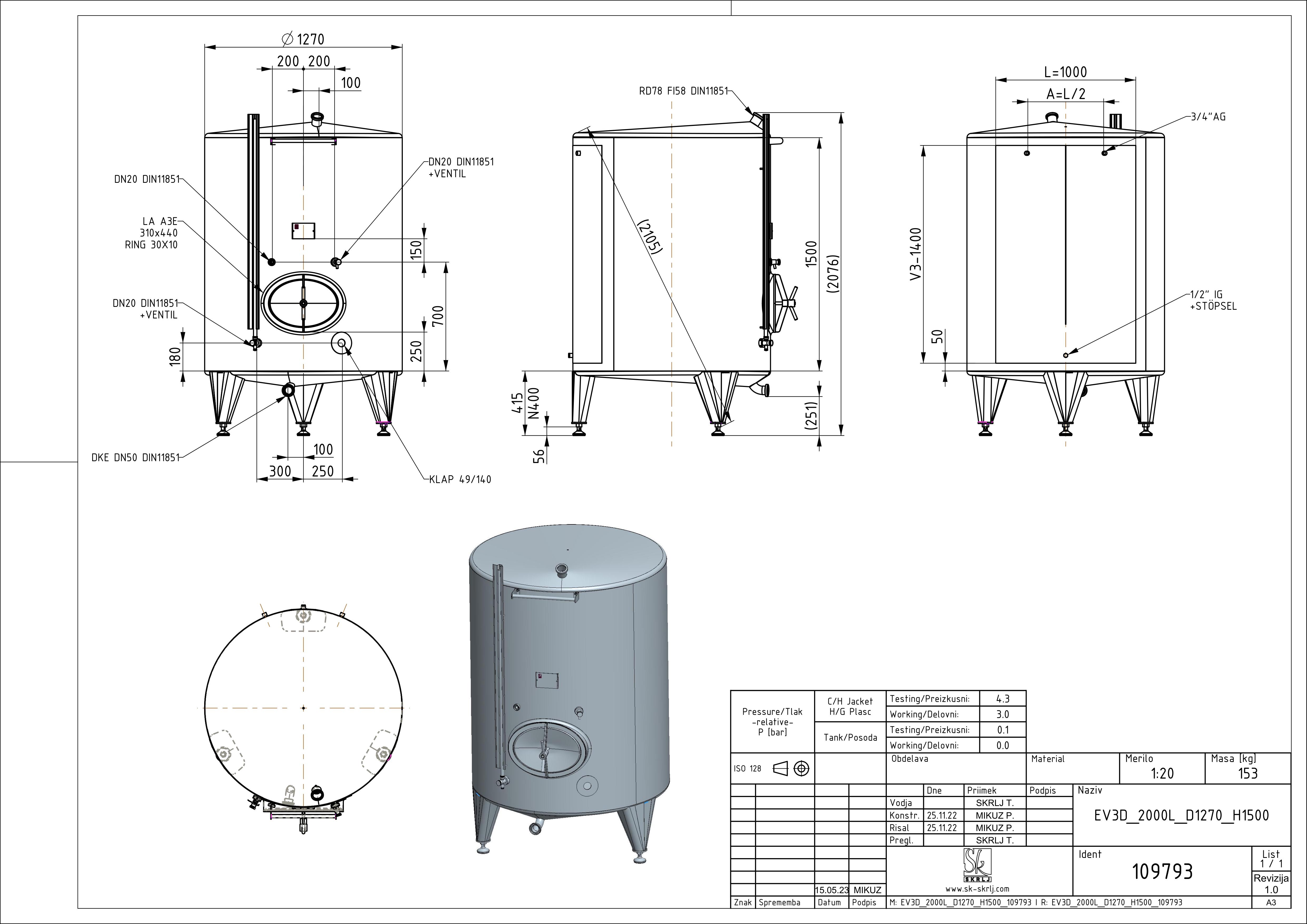

Classic storage tank with double jacket
EV3D 2000 D1270 H1500 0/ATM KL
Material: 109793
Standard: KL
Nominal volume in L: 2000
Geometrical volume [l]: 2032
Internal diameter in mm: 1270
Height H in mm: 1500
Height Z in mm: 2150
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
