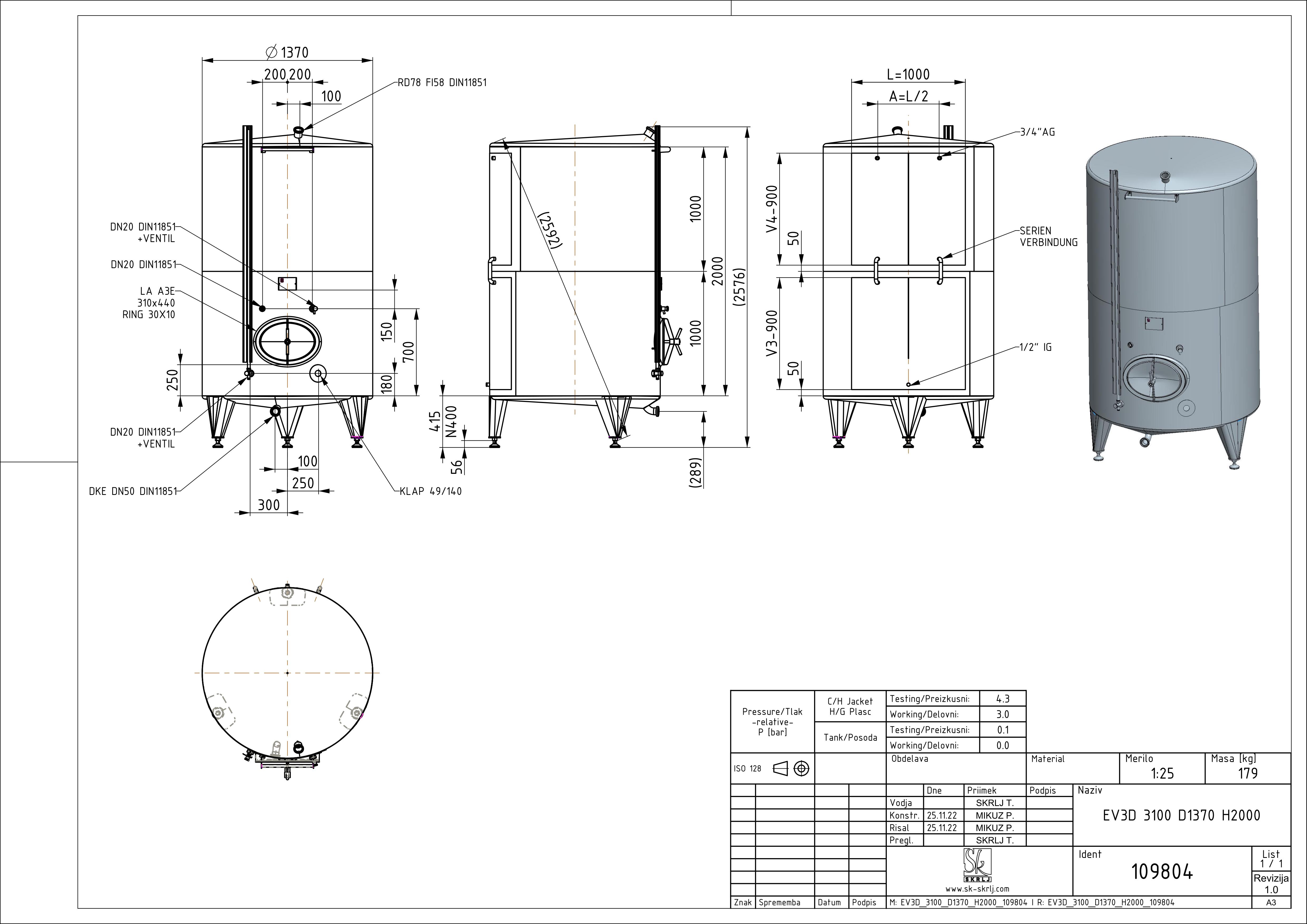

Classic storage tank with double jacket
EV3D 3100 D1370 H2000 0/ATM KL
Material: 109804
In Stock
Standard: KL
Nominal volume in L: 3100
Geometrical volume [l]: 3101
Internal diameter in mm: 1370
Height H in mm: 2000
Height Z in mm: 2650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
