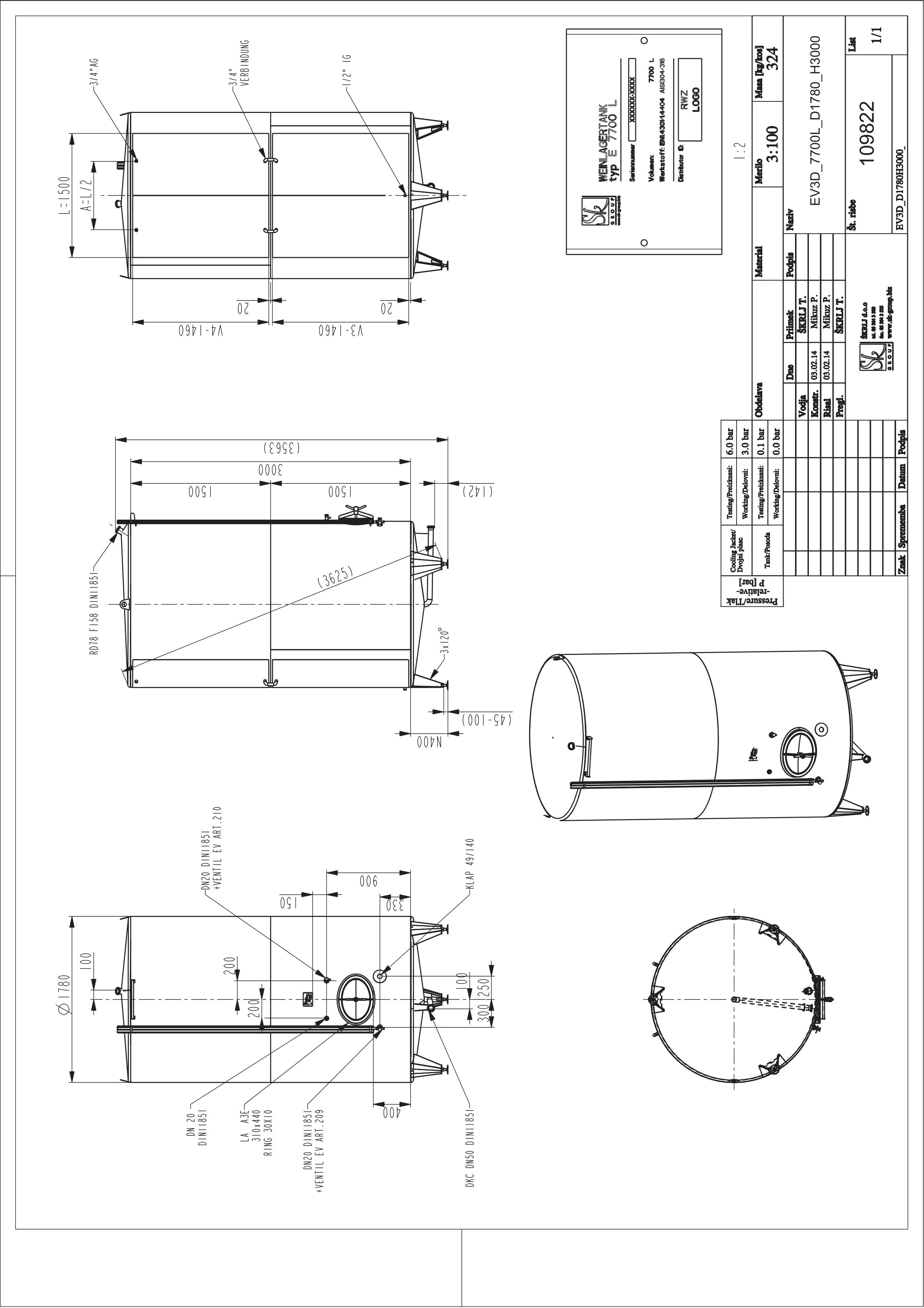

Classic storage tank with double jacket
EV3D 7700 D1780 H3000 0/ATM KL
Material: 109822
Standard: KL
Nominal volume in L: 7700
Geometrical volume [l]: 7760
Internal diameter in mm: 1780
Height H in mm: 3000
Height Z in mm: 3650
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
