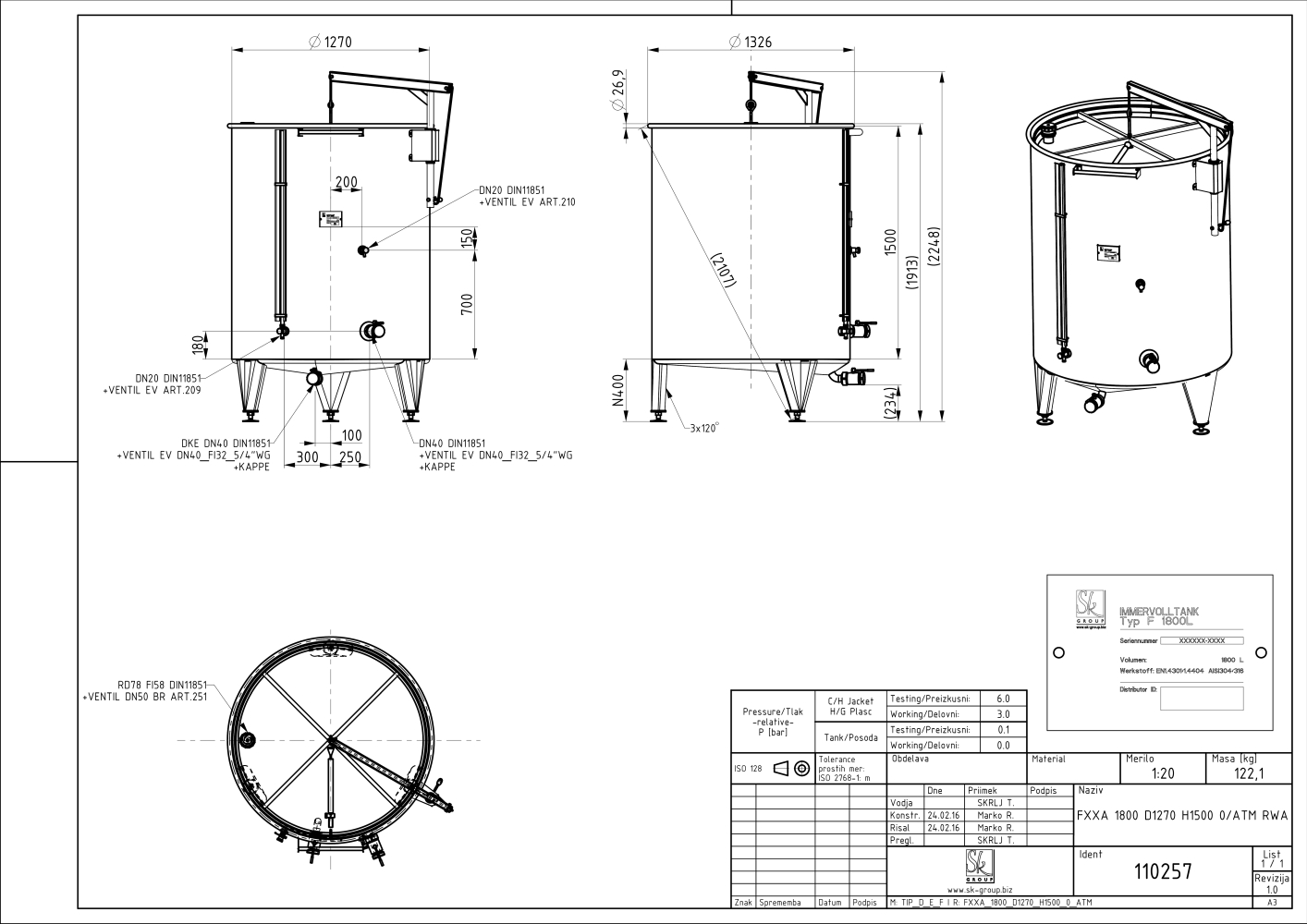

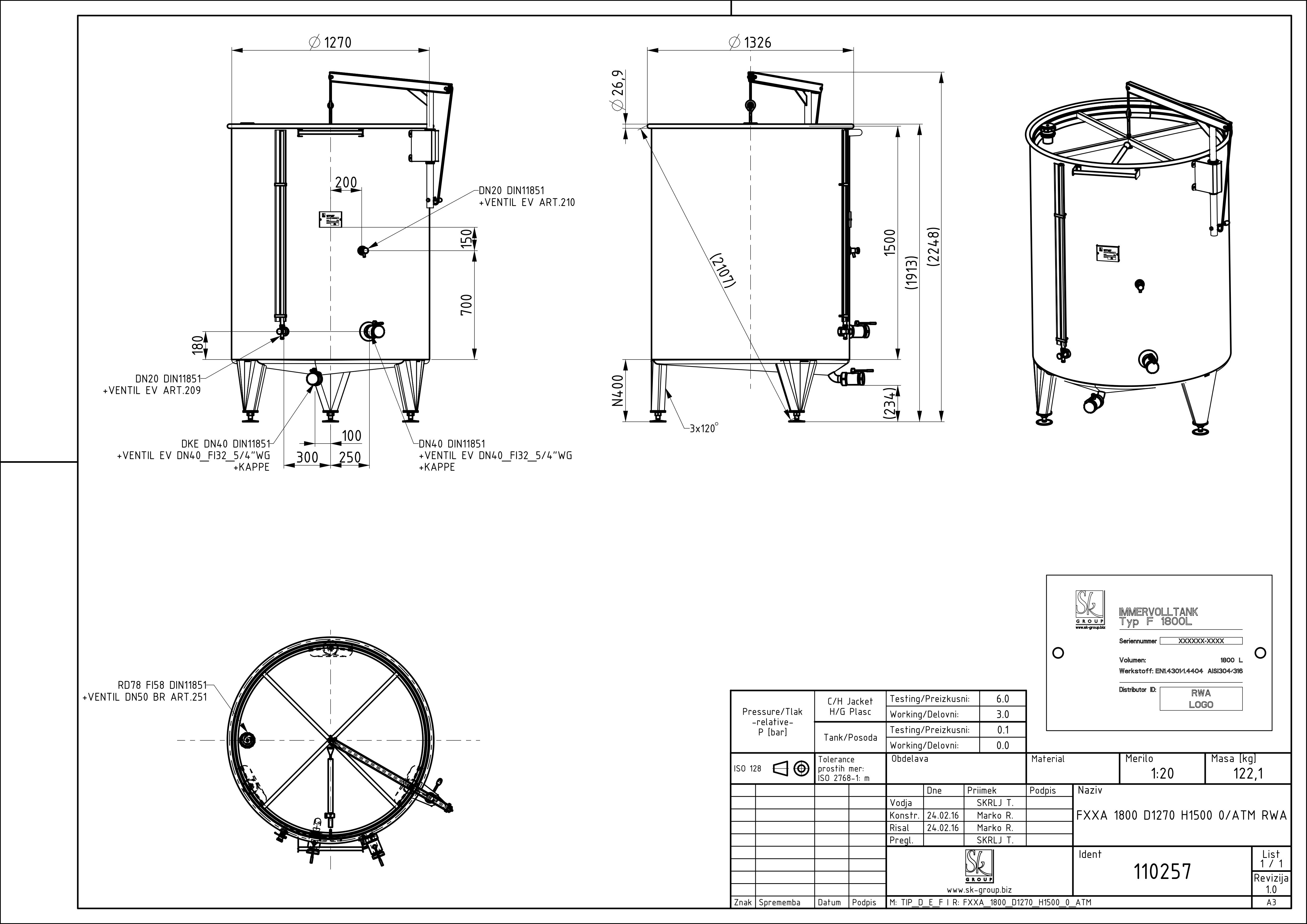

Storage tank with floating lid
FXXA 1800 D1270 H1500 0/ATM RW
Material: 110257
Standard: RW
Nominal volume in L: 1800
Geometrical volume [l]: 1966
Internal diameter in mm: 1270
Height H in mm: 1500
Height Z in mm: 2300
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
