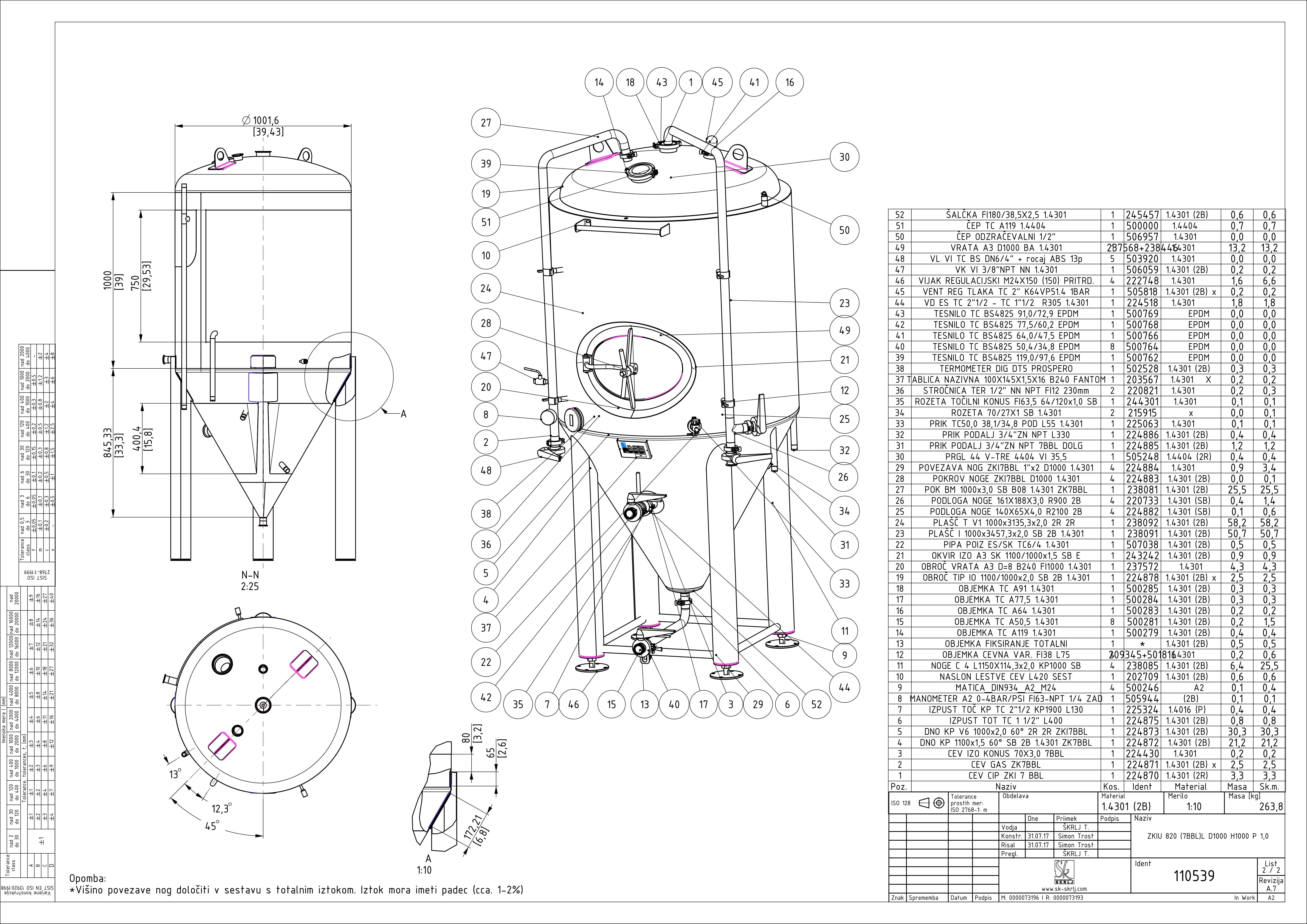

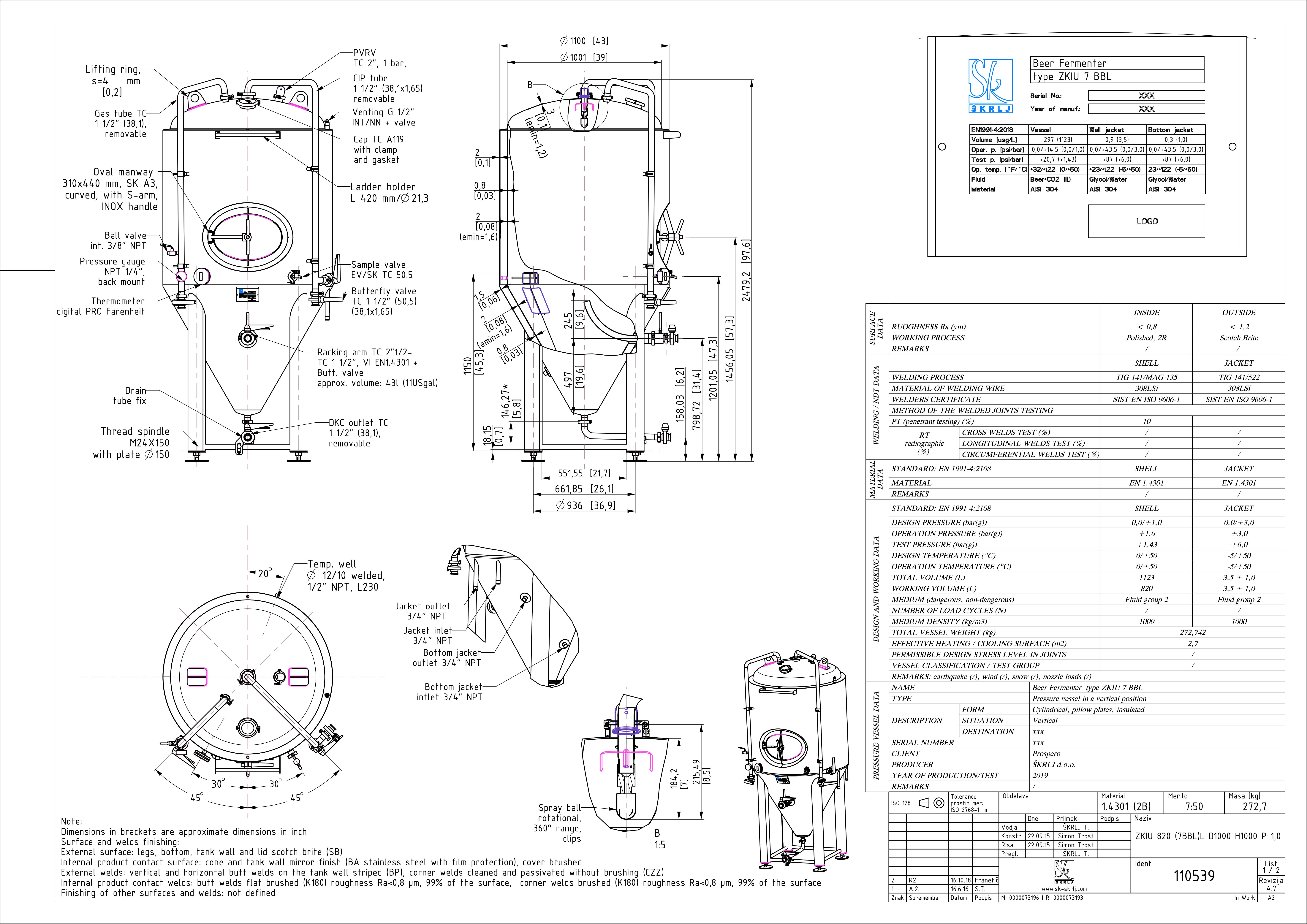

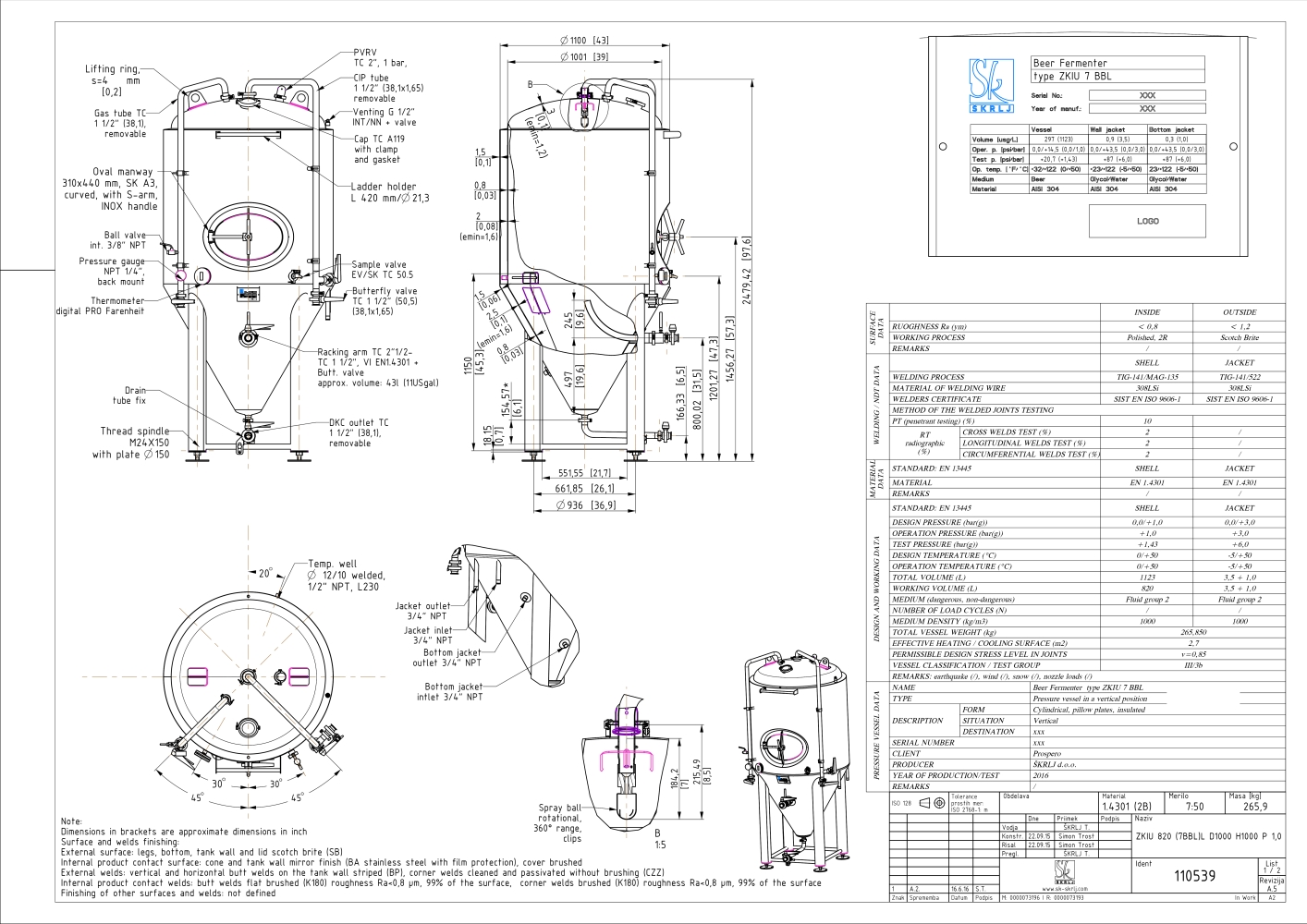

Cylindroconical fermentation and storage tank, insulated
ZKIU 820/7 D1000 H1000 0/+1,0 PR
Material: 110539
Standard: PR
Nominal volume in L: 820
Geometrical volume [l]: 1123
Nominal volume [bbl]: 7
Internal diameter in mm: 1000
External diameter [mm]: 1100
Height H in mm: 1000
Height Z in mm: 2480
Internal diameter [in]: 39
External diameter [in]: 43
Height H [in]: 39
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
