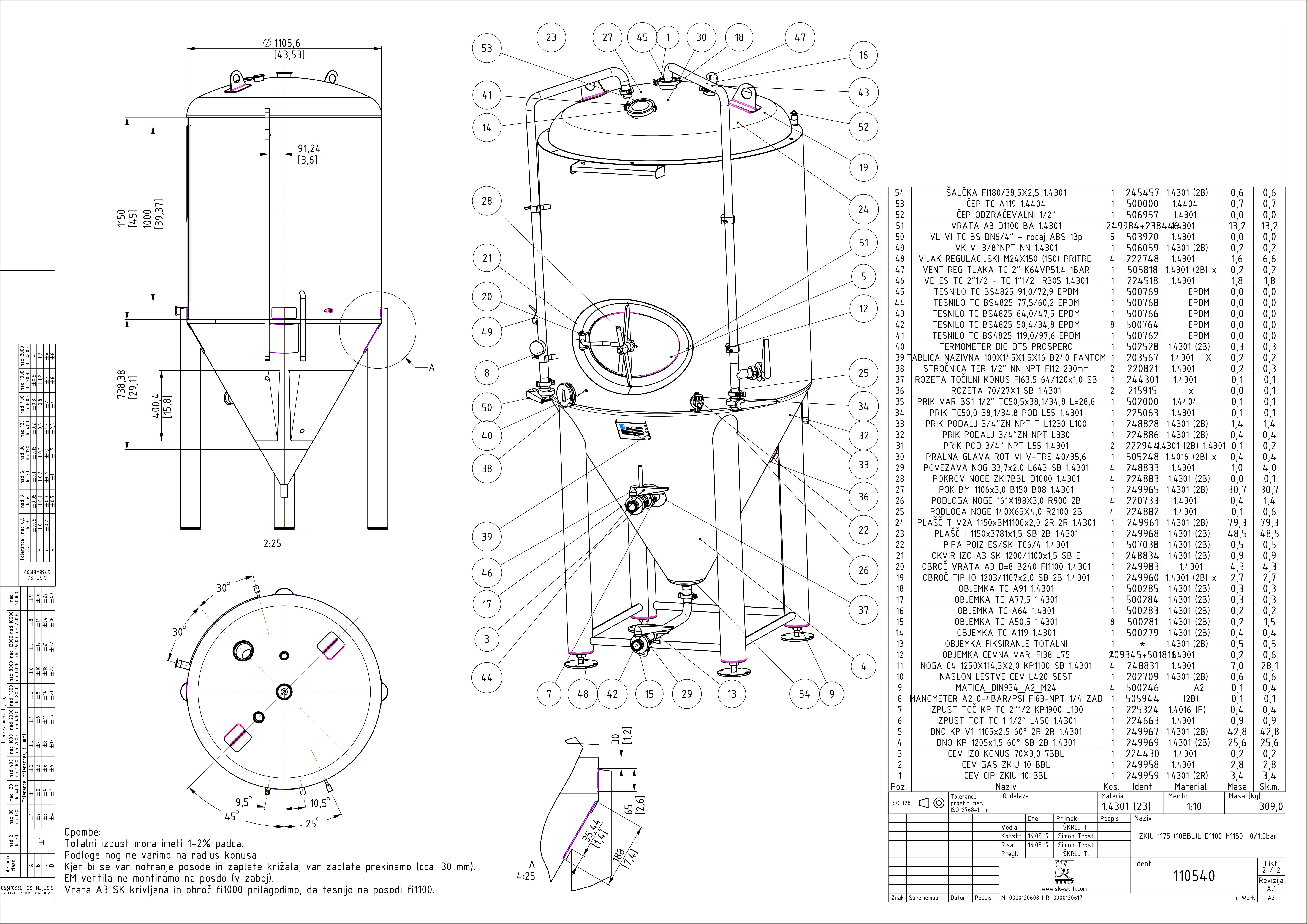

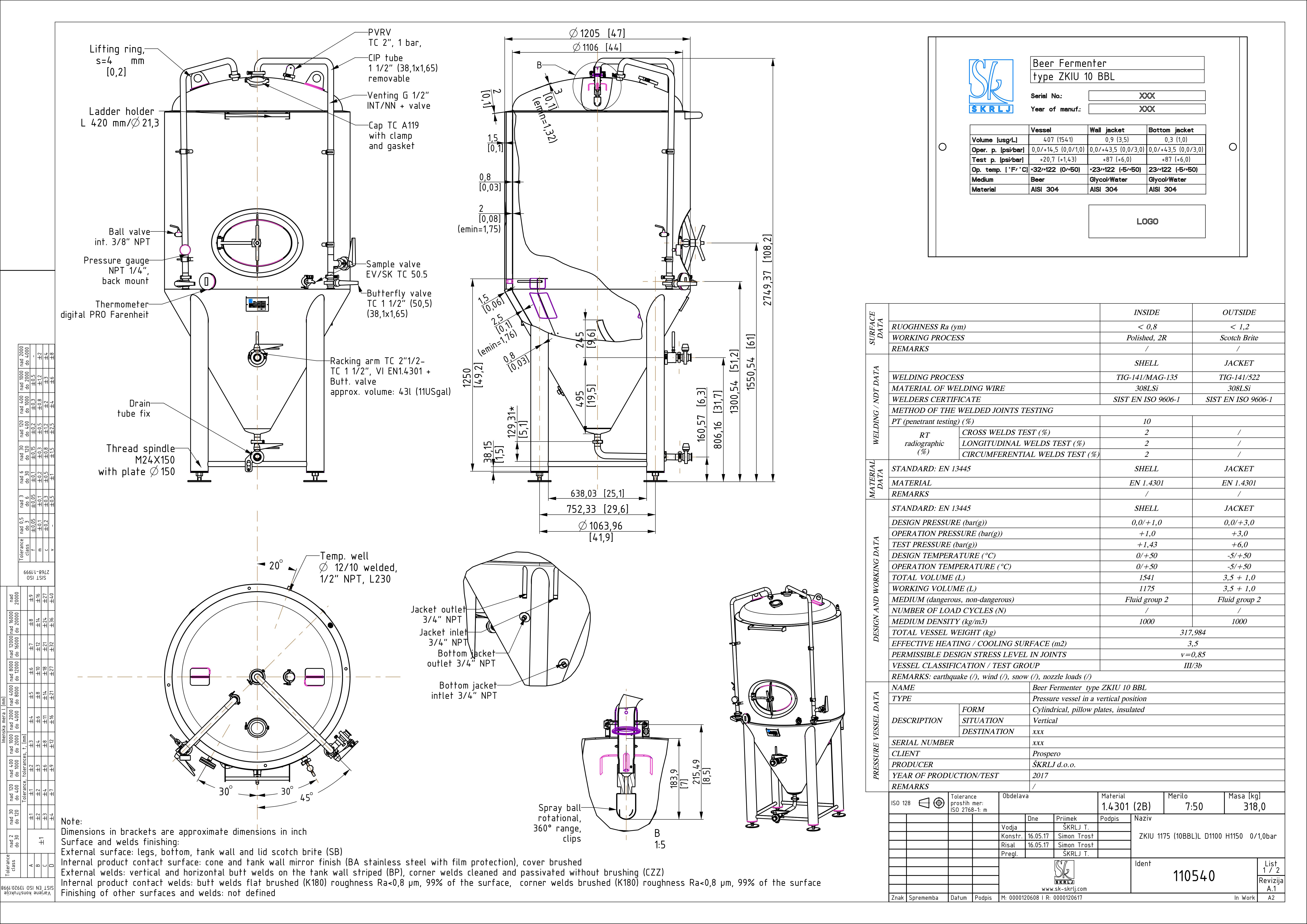

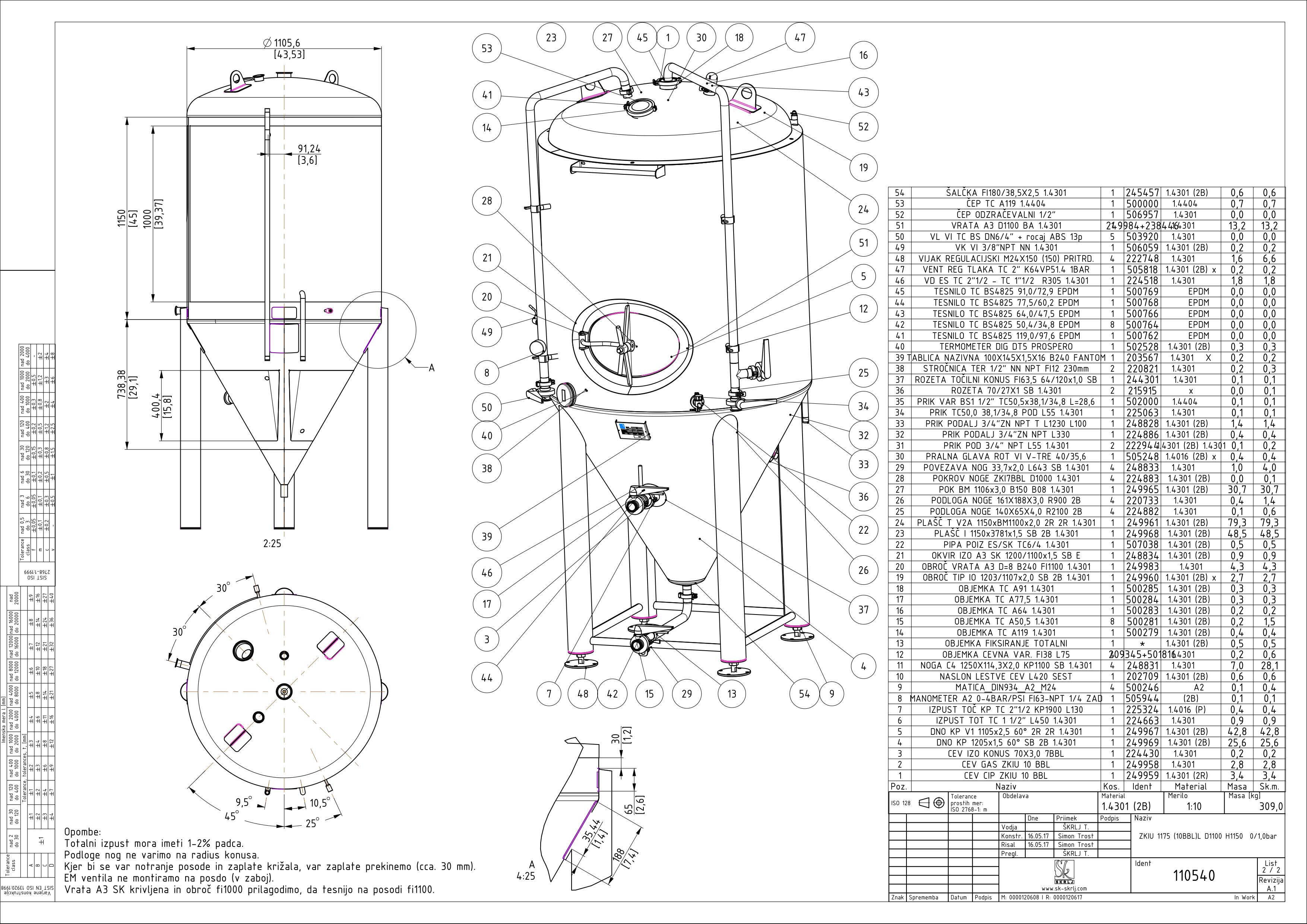

Cylindroconical fermentation and storage tank, insulated
ZKIU 1175/10 D1100 H1150 0/+1,0 PR
Material: 110540
Standard: PR
Nominal volume in L: 1175
Geometrical volume [l]: 1541
Nominal volume [bbl]: 10
Internal diameter in mm: 1100
External diameter [mm]: 1200
Height H in mm: 1150
Height Z in mm: 2750
Internal diameter [in]: 44
External diameter [in]: 47
Height H [in]: 45
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
