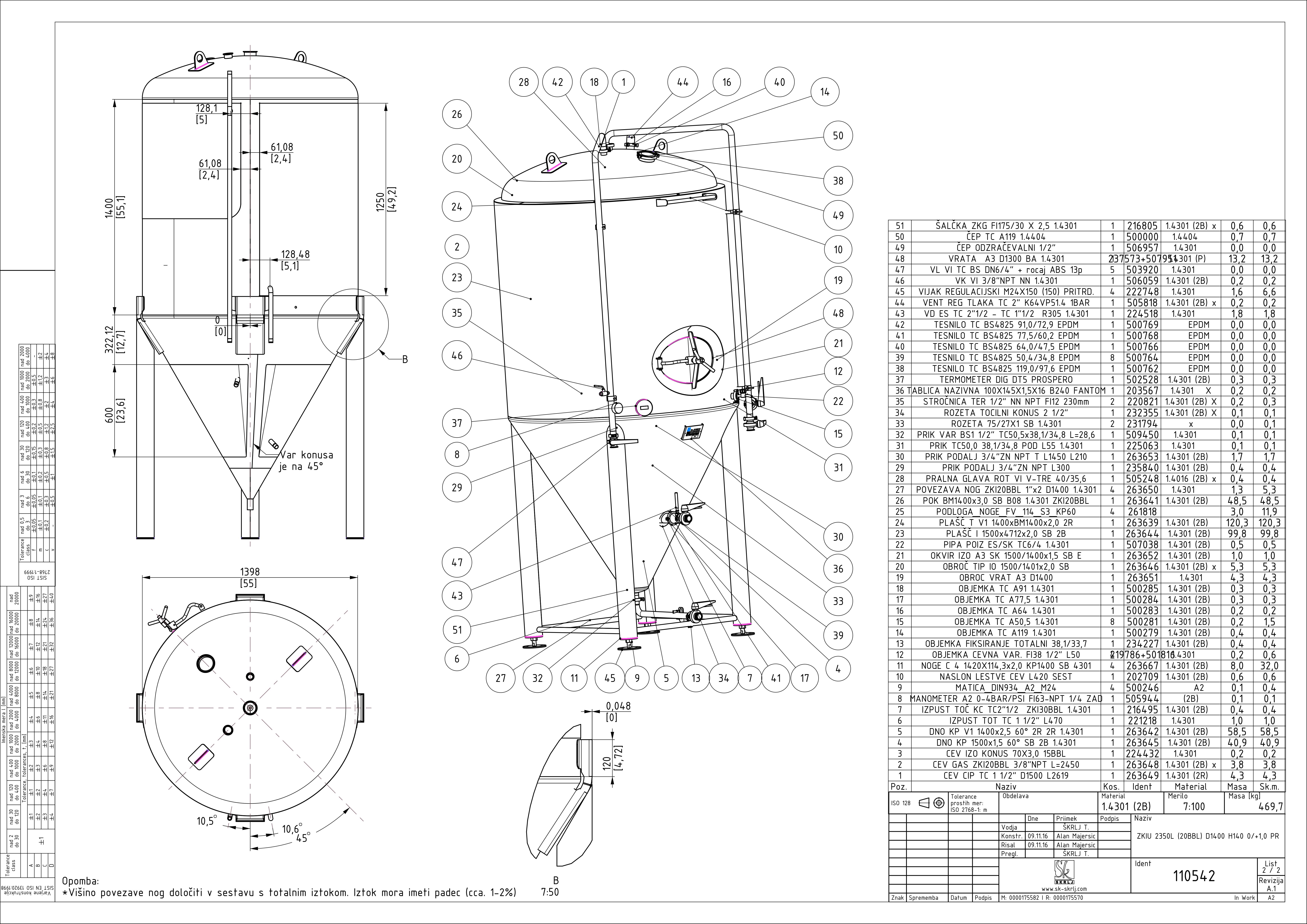

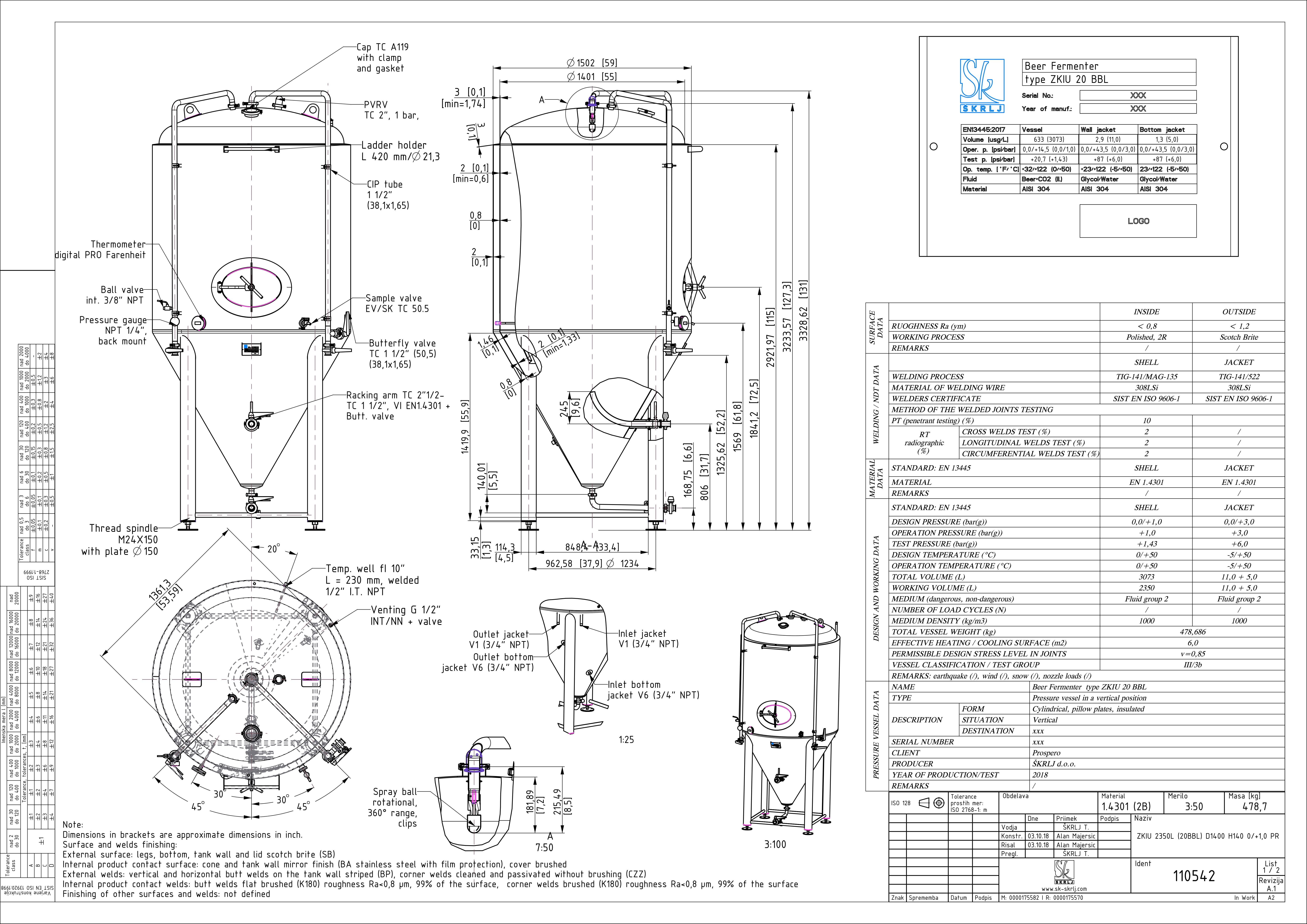

Cylindroconical fermentation and storage tank, insulated
ZKIU 2350/20 D1400 H1400 0/+1,0 PR
Material: 110542
Standard: PR
Nominal volume in L: 2350
Geometrical volume [l]: 3073
Nominal volume [bbl]: 20
Internal diameter in mm: 1400
External diameter [mm]: 1500
Height H in mm: 1400
Height Z in mm: 3300
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
