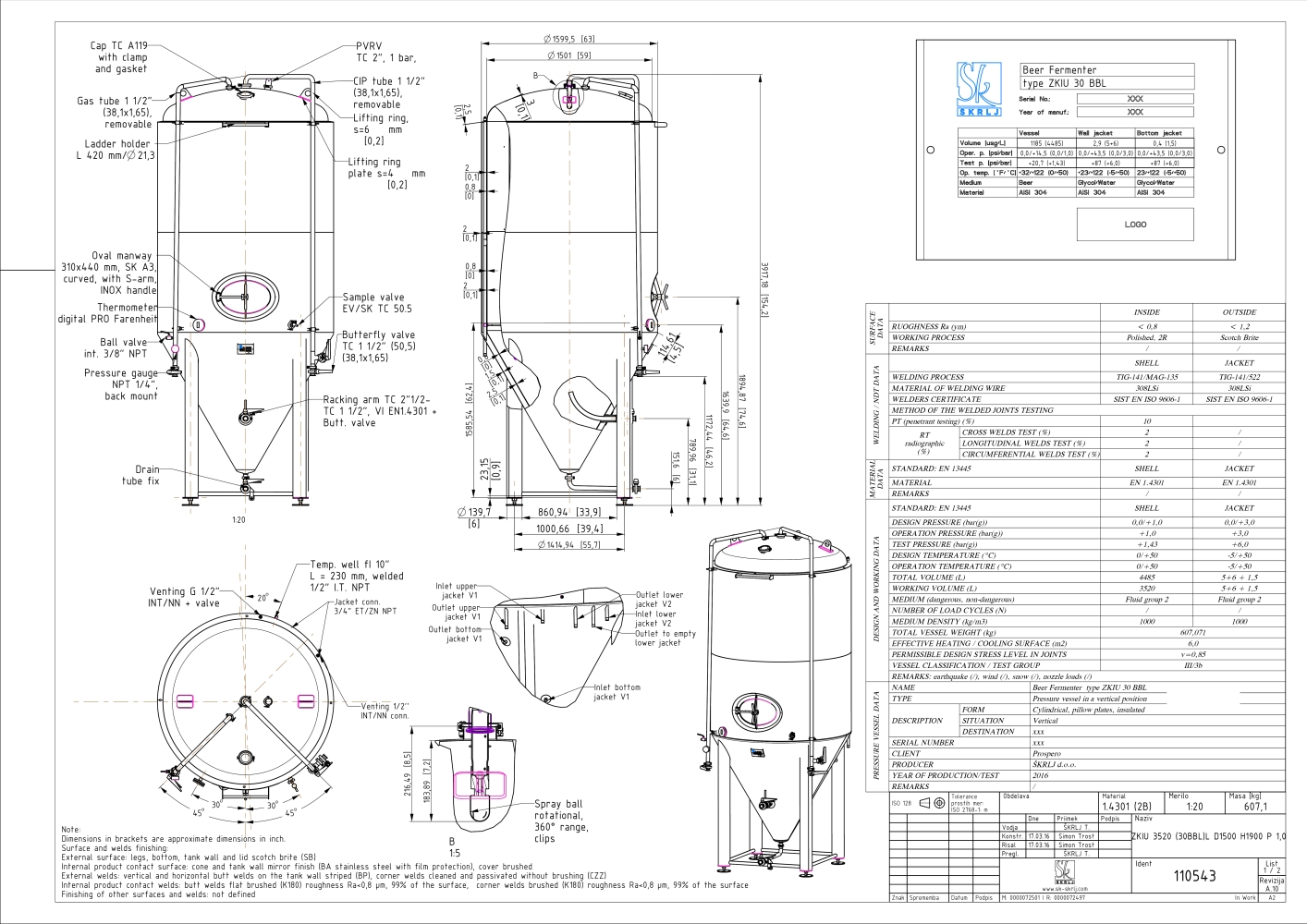

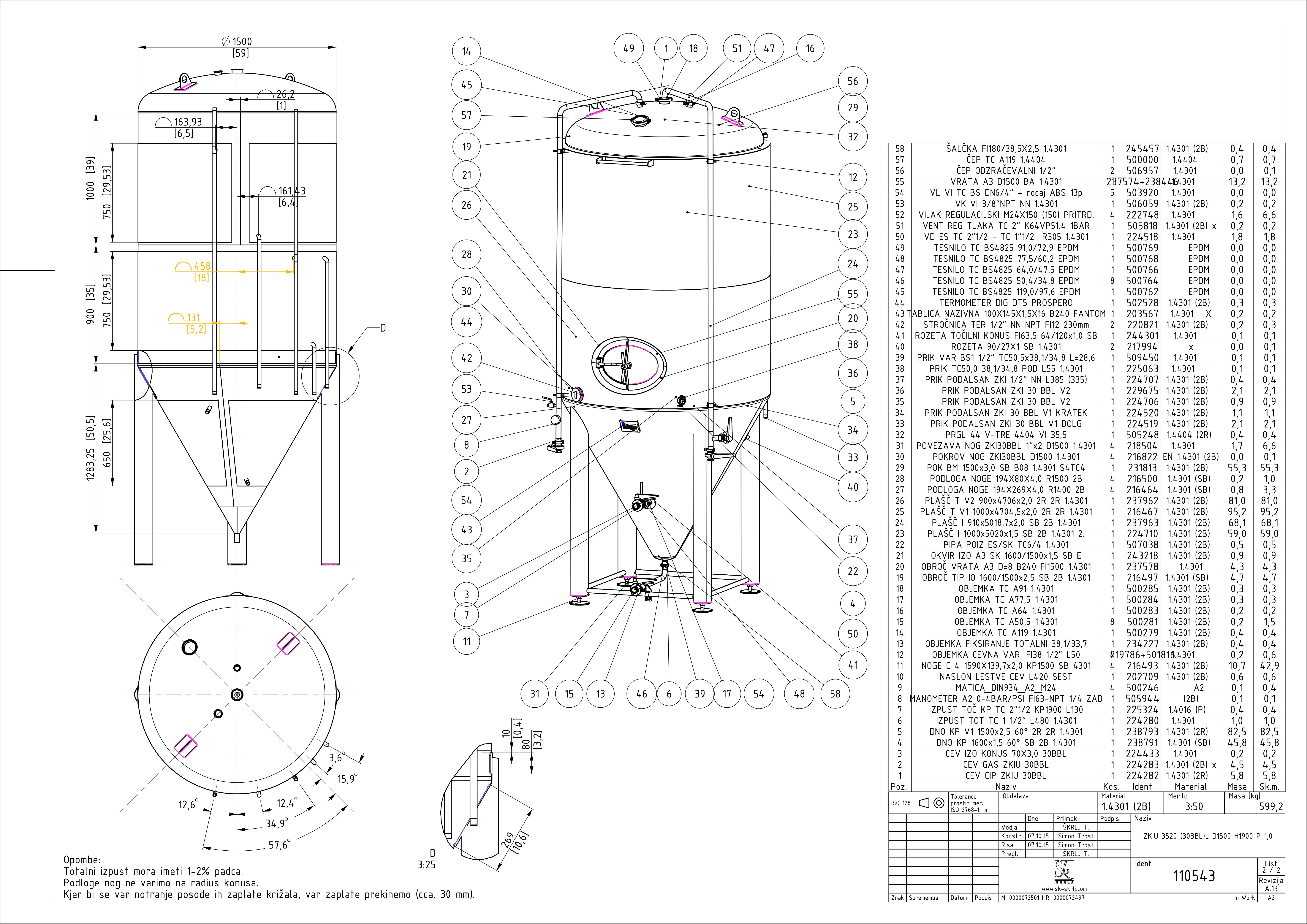

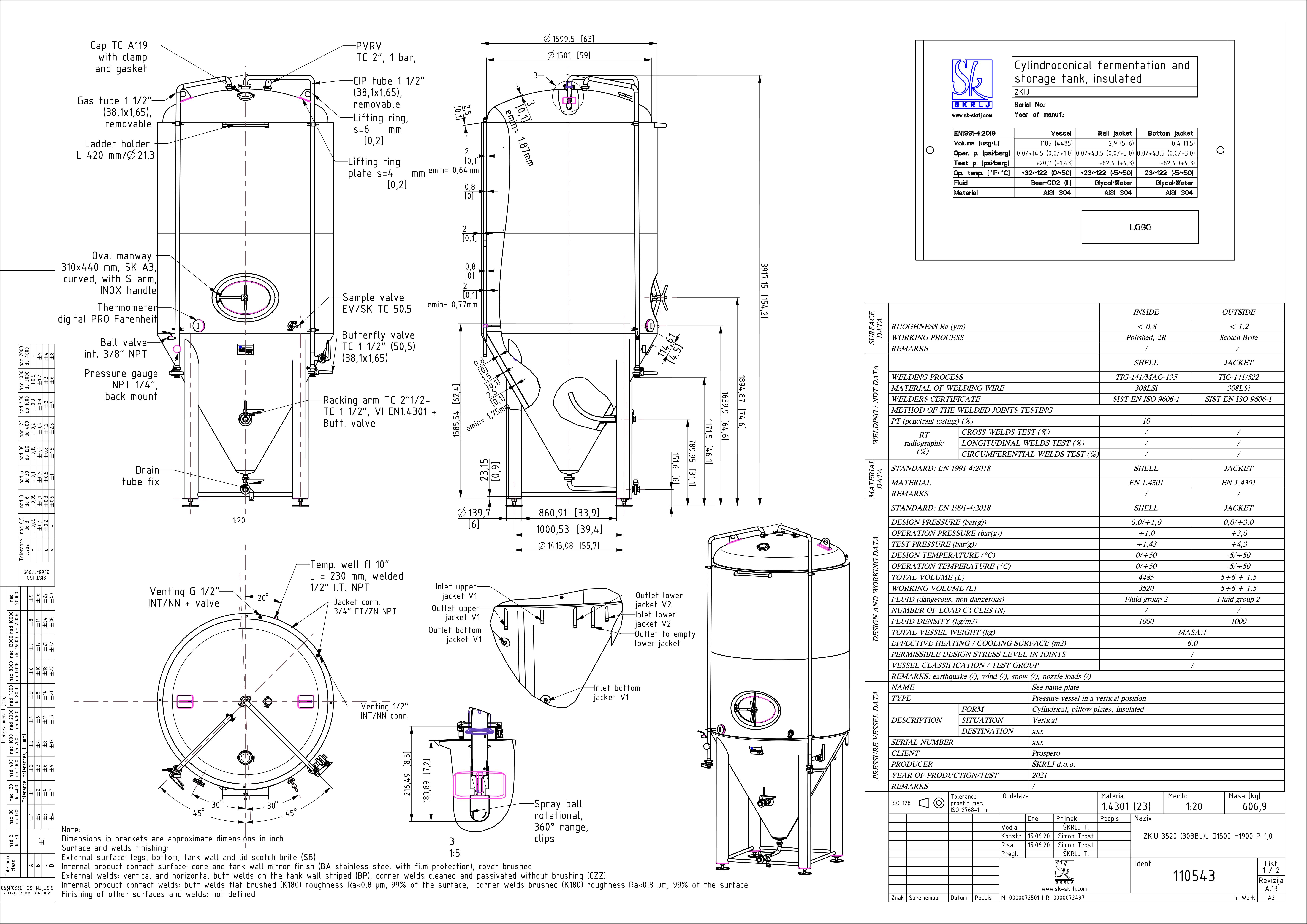

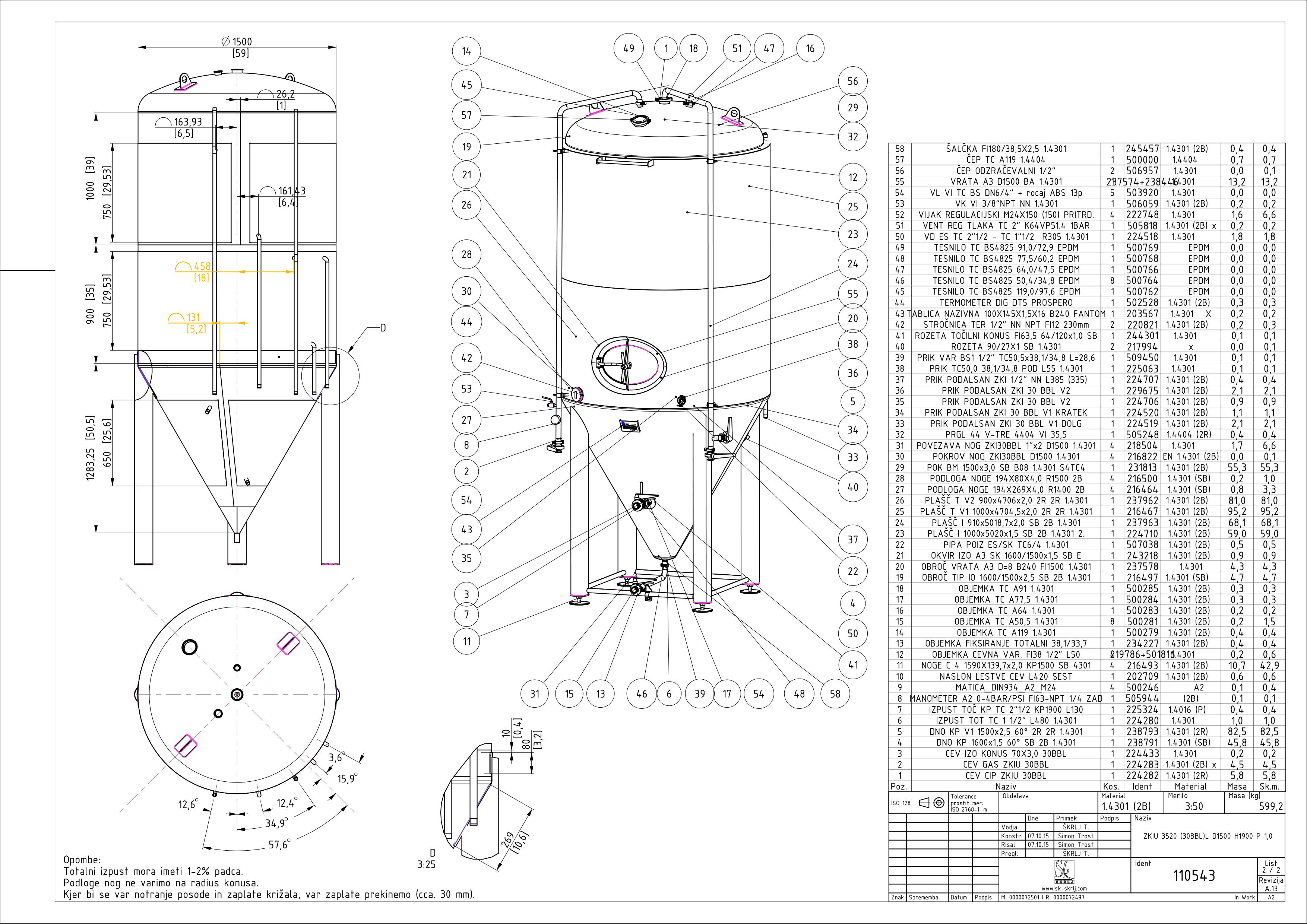

Cylindroconical fermentation and storage tank, insulated
ZKIU 3520/30 D1500 H1900 0/+1 PR
Material: 110543
Standard: PR
Nominal volume in L: 3520
Geometrical volume [l]: 4485
Nominal volume [bbl]: 30
Internal diameter in mm: 1500
External diameter [mm]: 1600
Height H in mm: 1900
Height Z in mm: 3920
Internal diameter [in]: 59
External diameter [in]: 63
Height H [in]: 74
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
