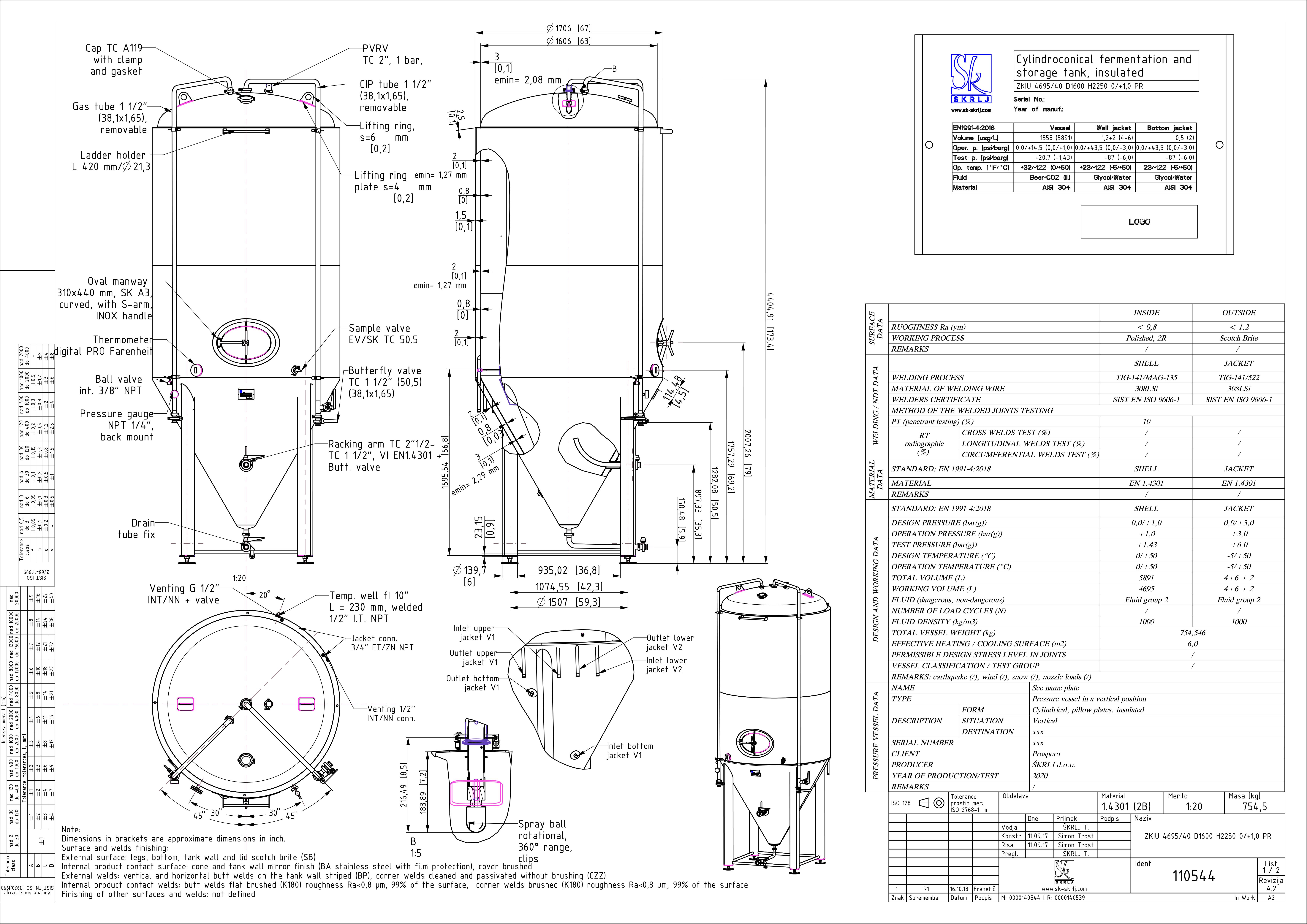

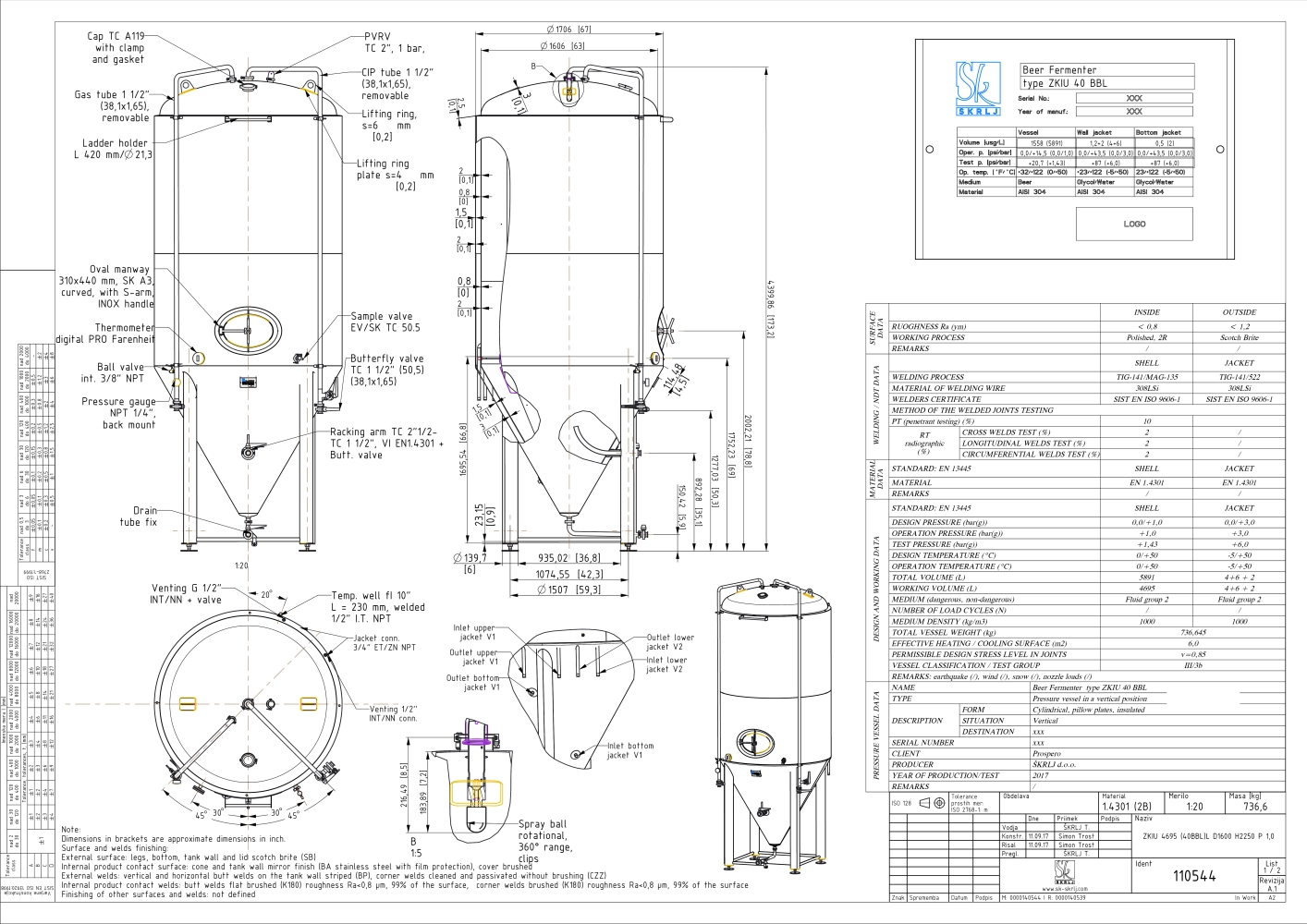

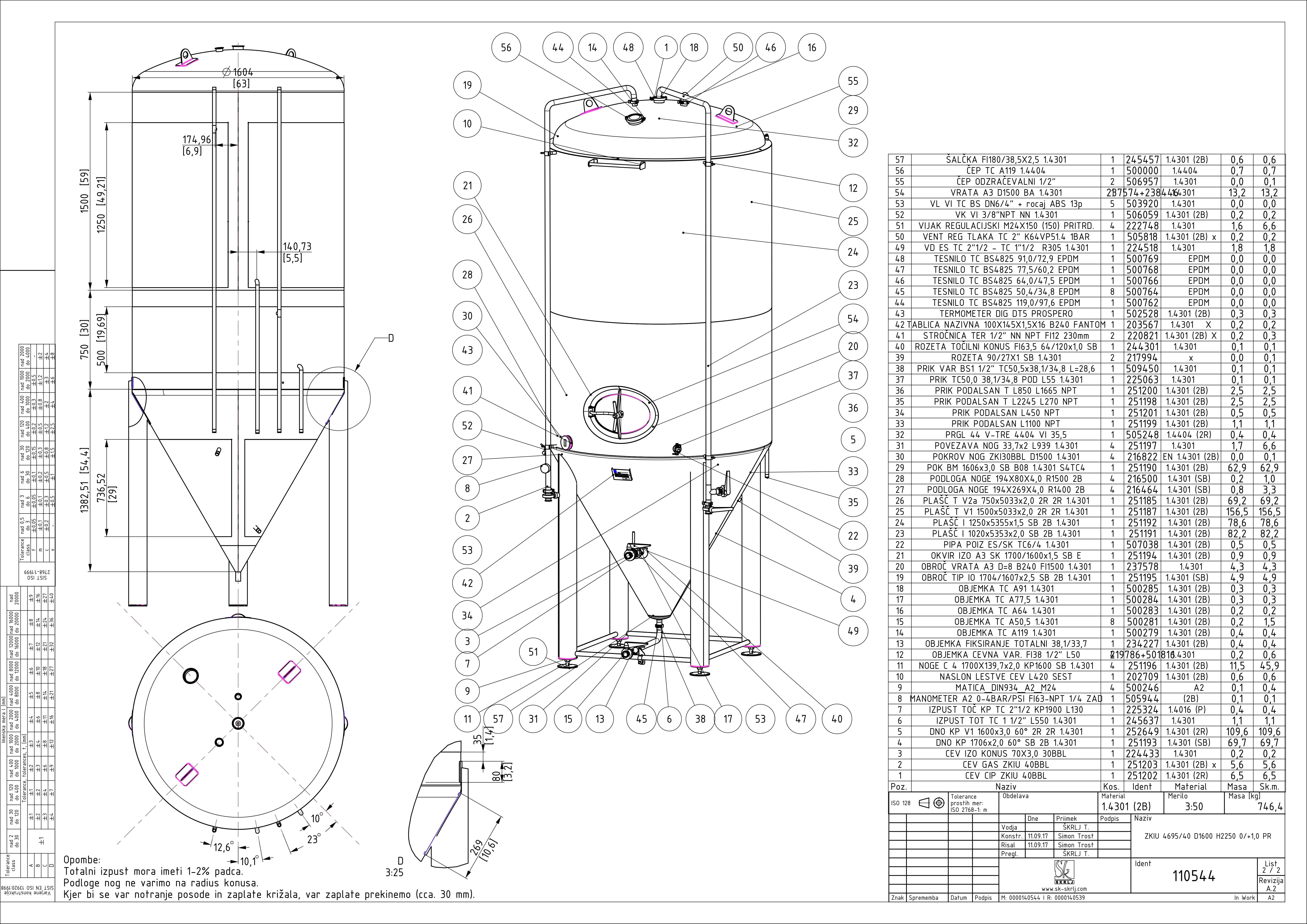

Cylindroconical fermentation and storage tank, insulated
ZKIU 4695/40 D1600 H2250 0/+1,0 PR
Material: 110544
Standard: PR
Nominal volume in L: 4695
Geometrical volume [l]: 5891
Nominal volume [bbl]: 40
Internal diameter in mm: 1600
External diameter [mm]: 1700
Height H in mm: 2250
Height Z in mm: 4400
Internal diameter [in]: 63
External diameter [in]: 67
Height H [in]: 89
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
