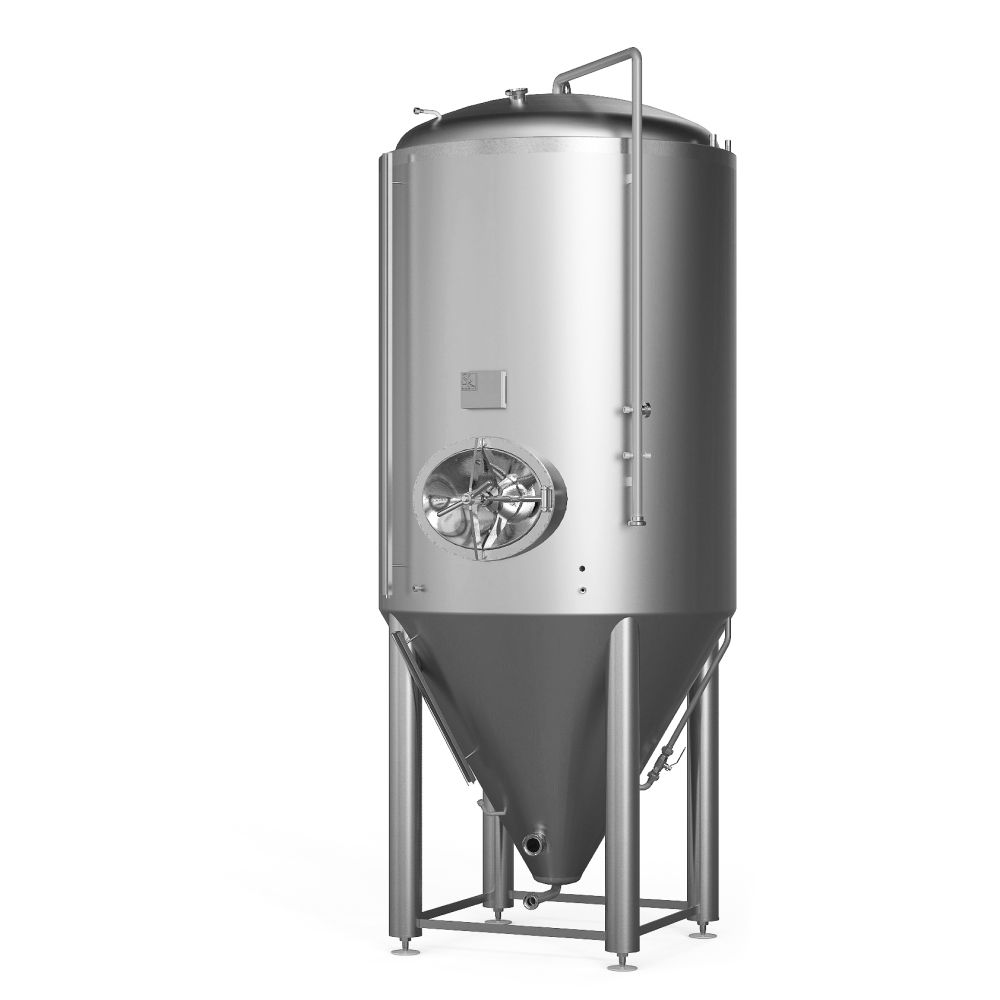

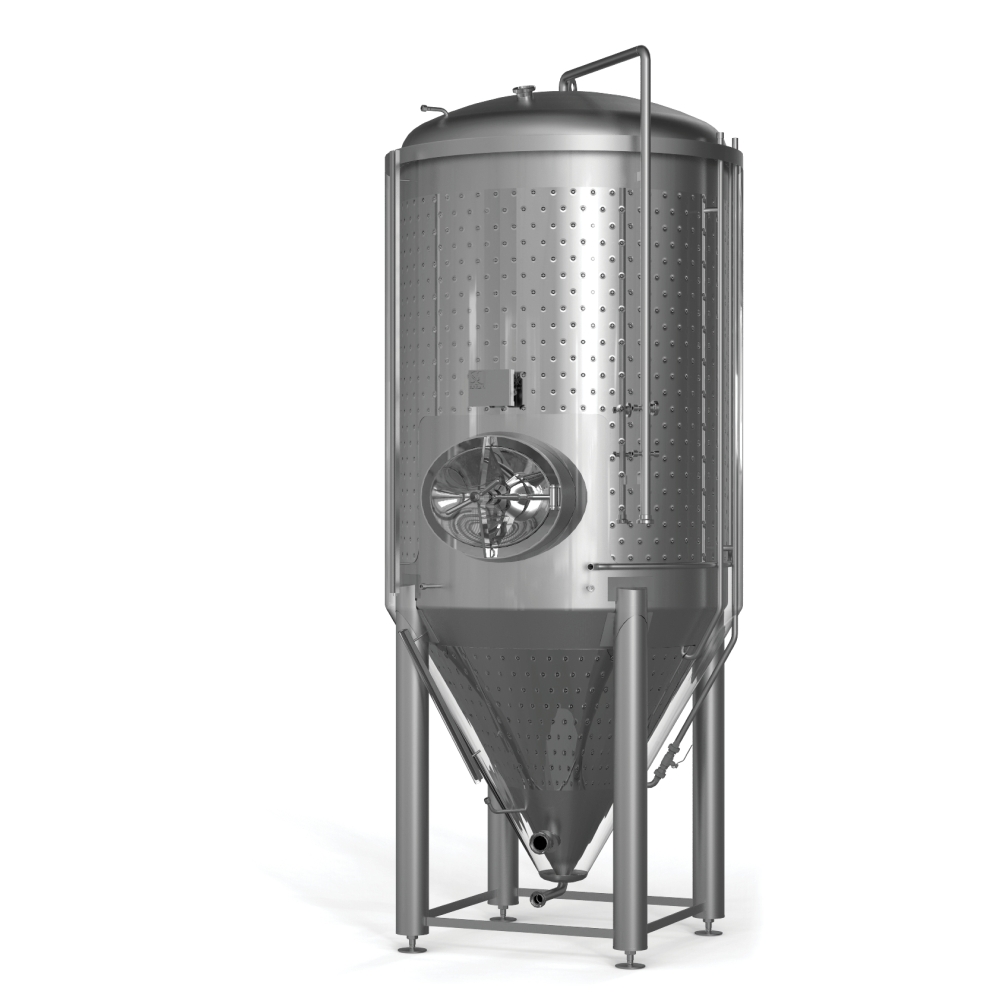

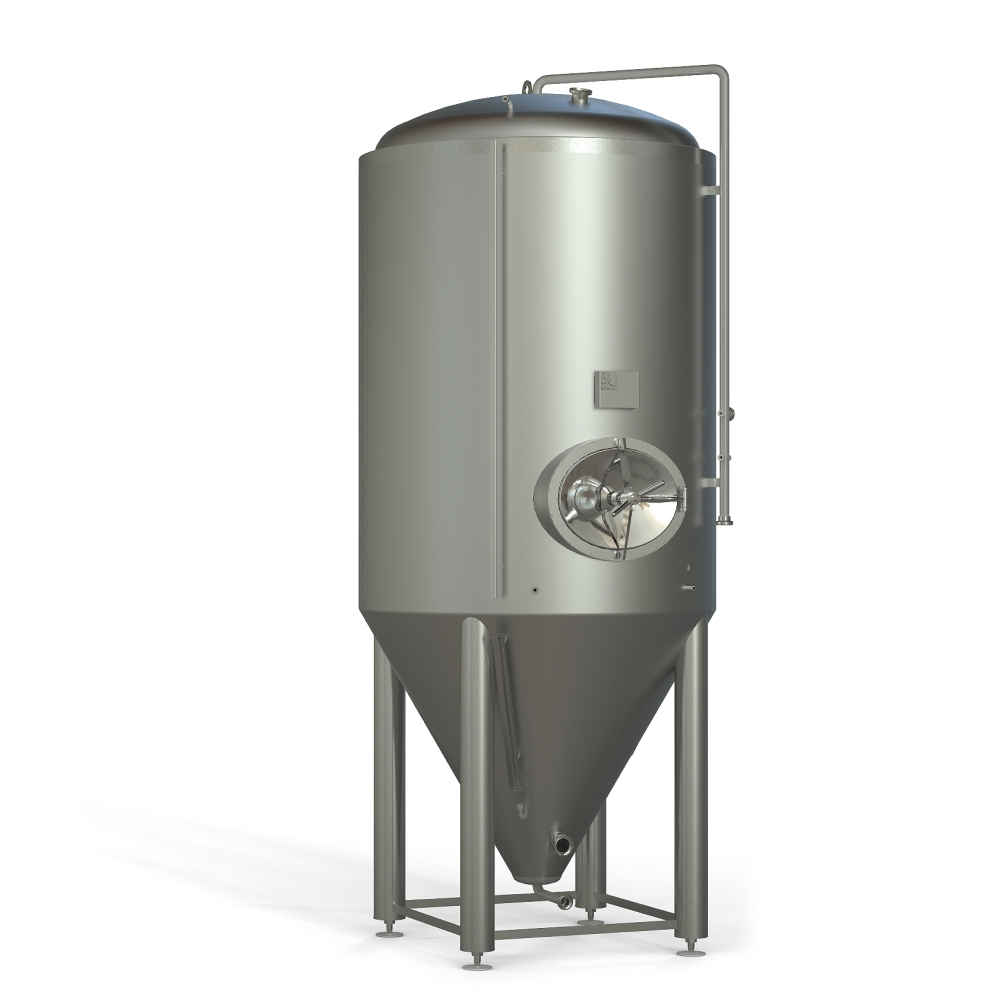

Cylindroconical fermentation and storage tank, insulated
ZKIU 9390/80 D2000 H3000 0/+1,0 PR
Material: 110547
Standard: PR
Nominal volume in L: 9390
Geometrical volume [l]: 12079
Nominal volume [bbl]: 80
Internal diameter in mm: 2000
External diameter [mm]: 2100
Height H in mm: 3000
Height Z in mm: 5500
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
