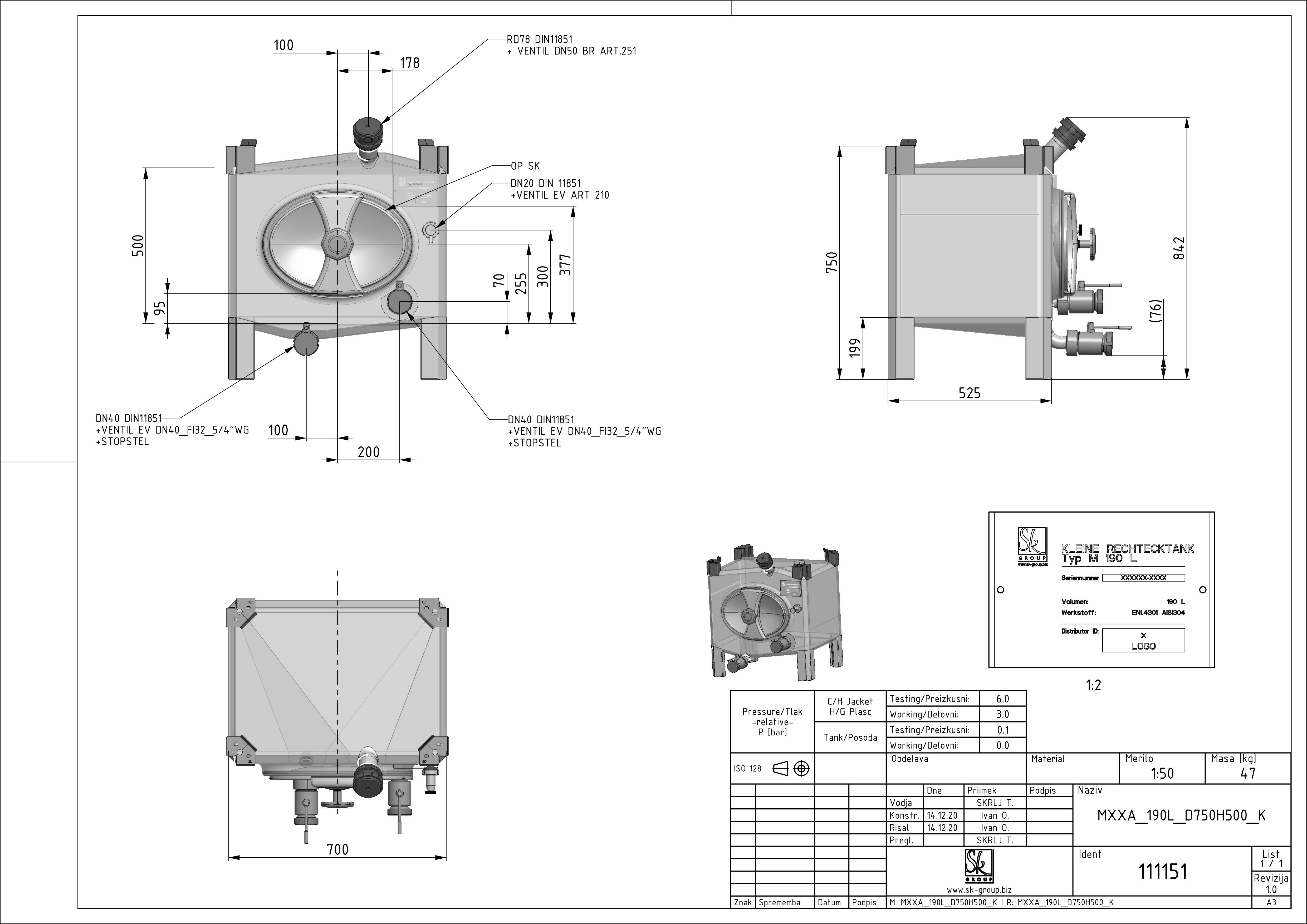

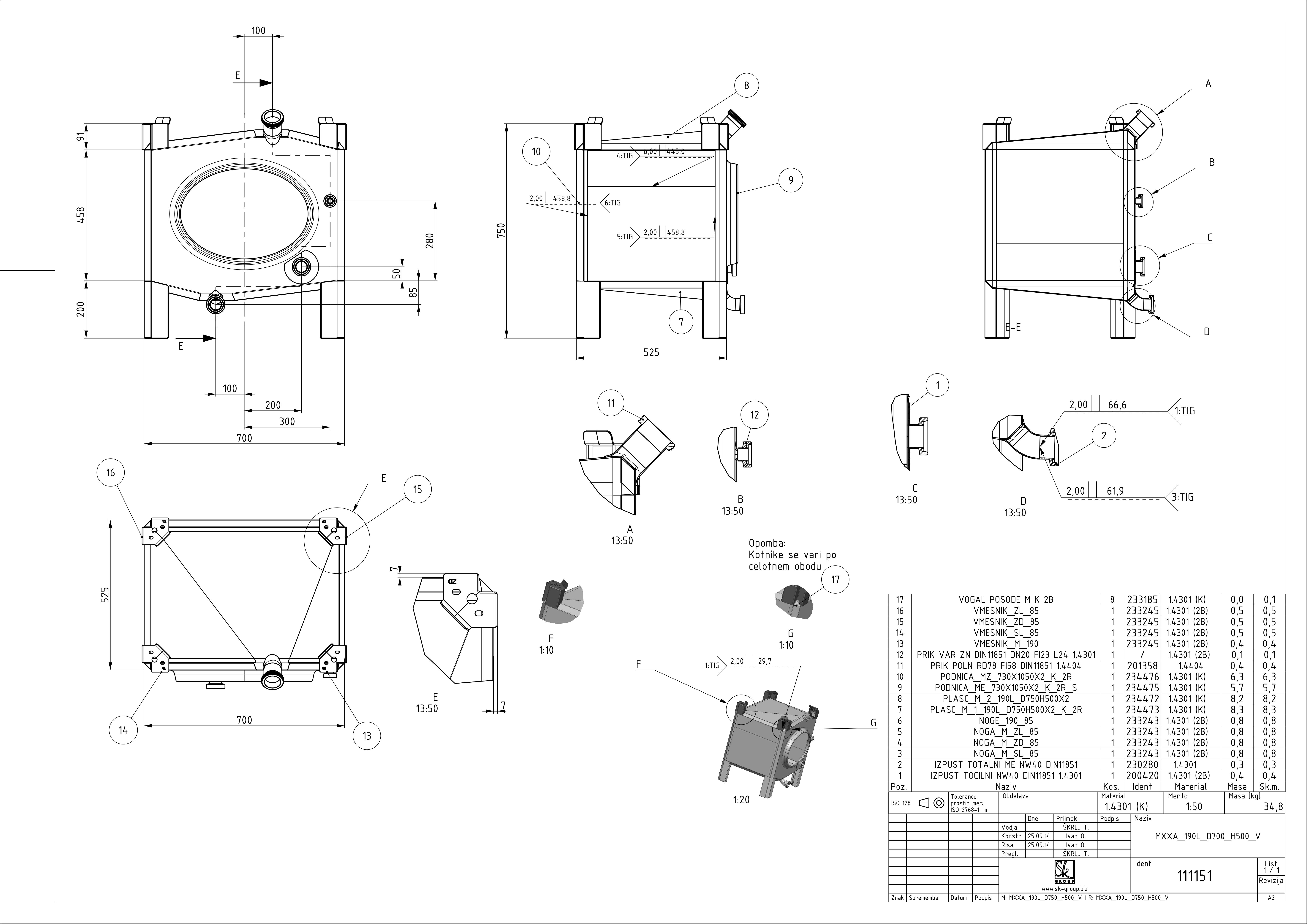

Small rectangular storage tank
MXXA 190 D700 G525 H500 0/ATM RW
Material: 111151
Standard: RW
Nominal volume in L: 190
Width D in mm: 700
Depth G in mm: 525
Height H in mm: 500
Height Z in mm: 750/790
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
