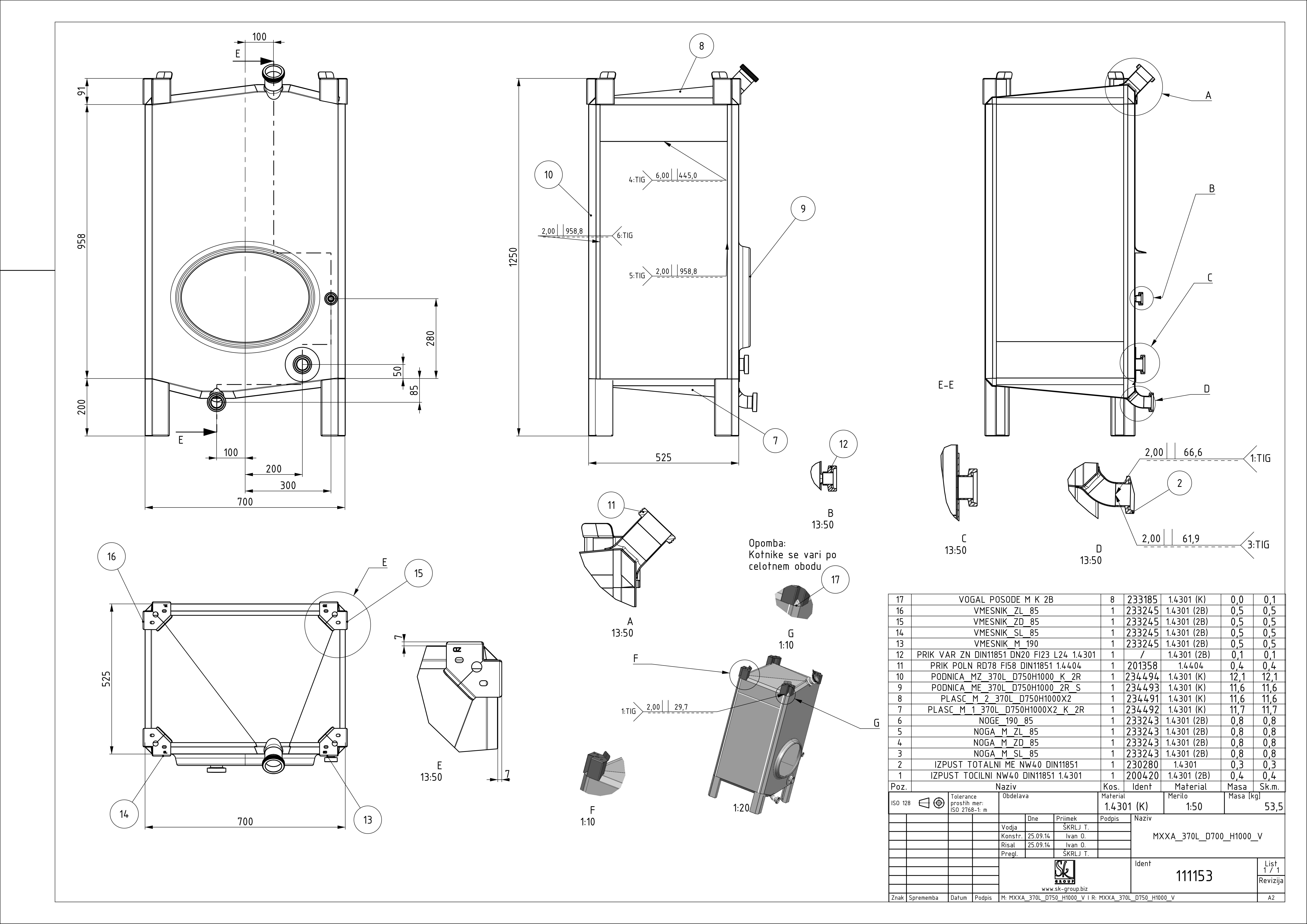

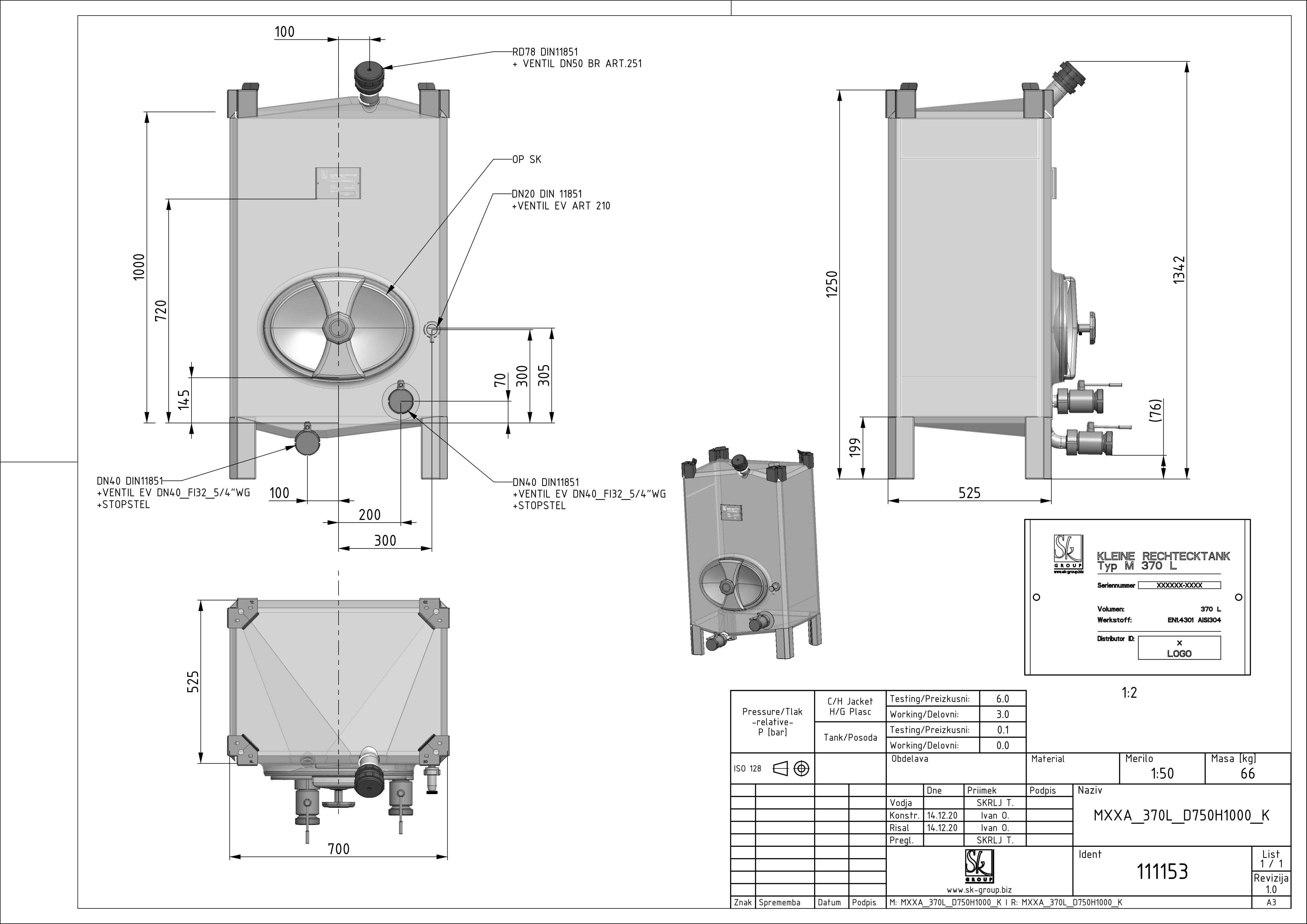

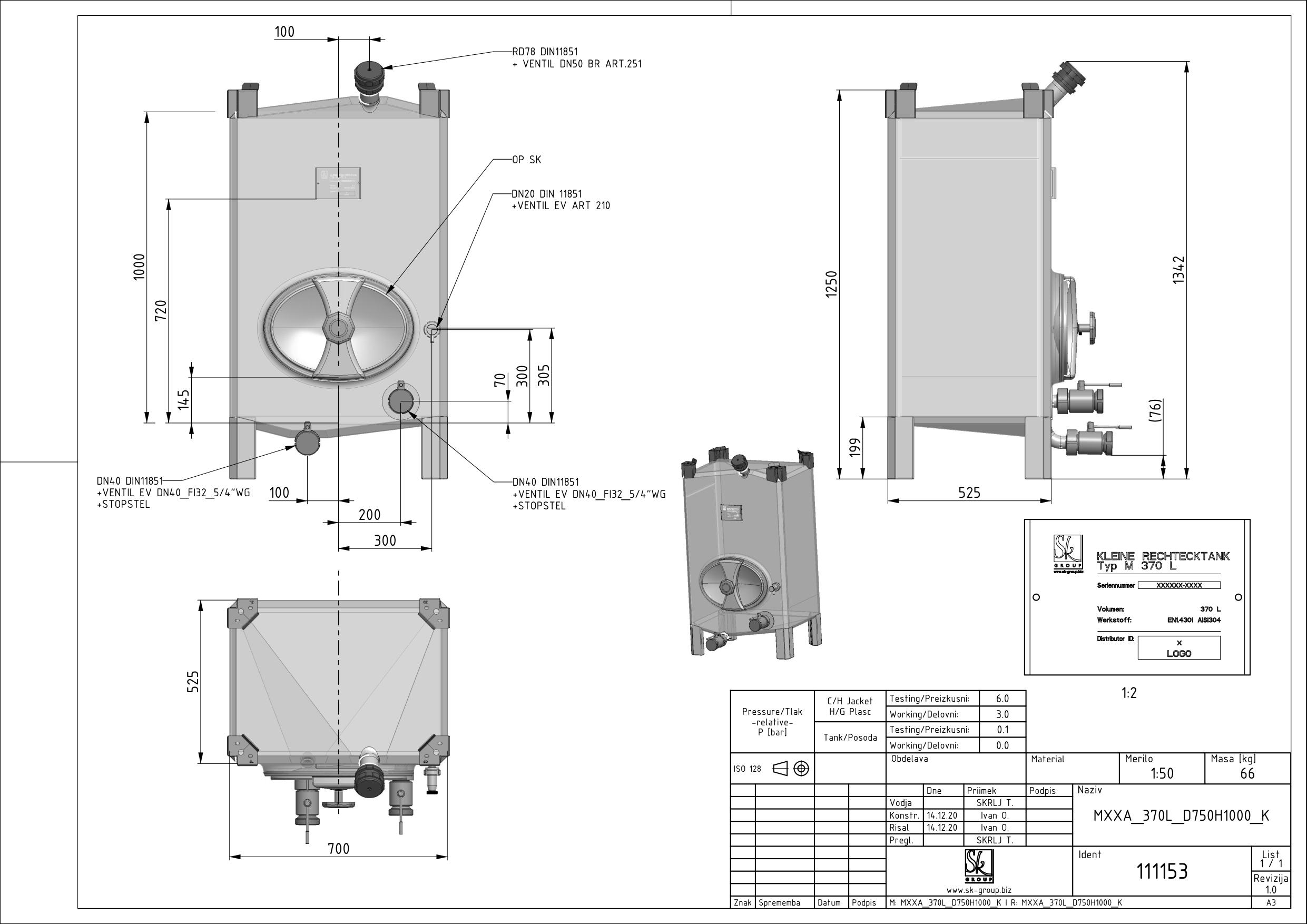

Small rectangular storage tank
MXXA 370 D700 G525 H1000 0/ATM RW
Material: 111153
Standard: RW
Nominal volume in L: 370
Width D in mm: 700
Depth G in mm: 525
Height H in mm: 1000
Height Z in mm: 1290
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
