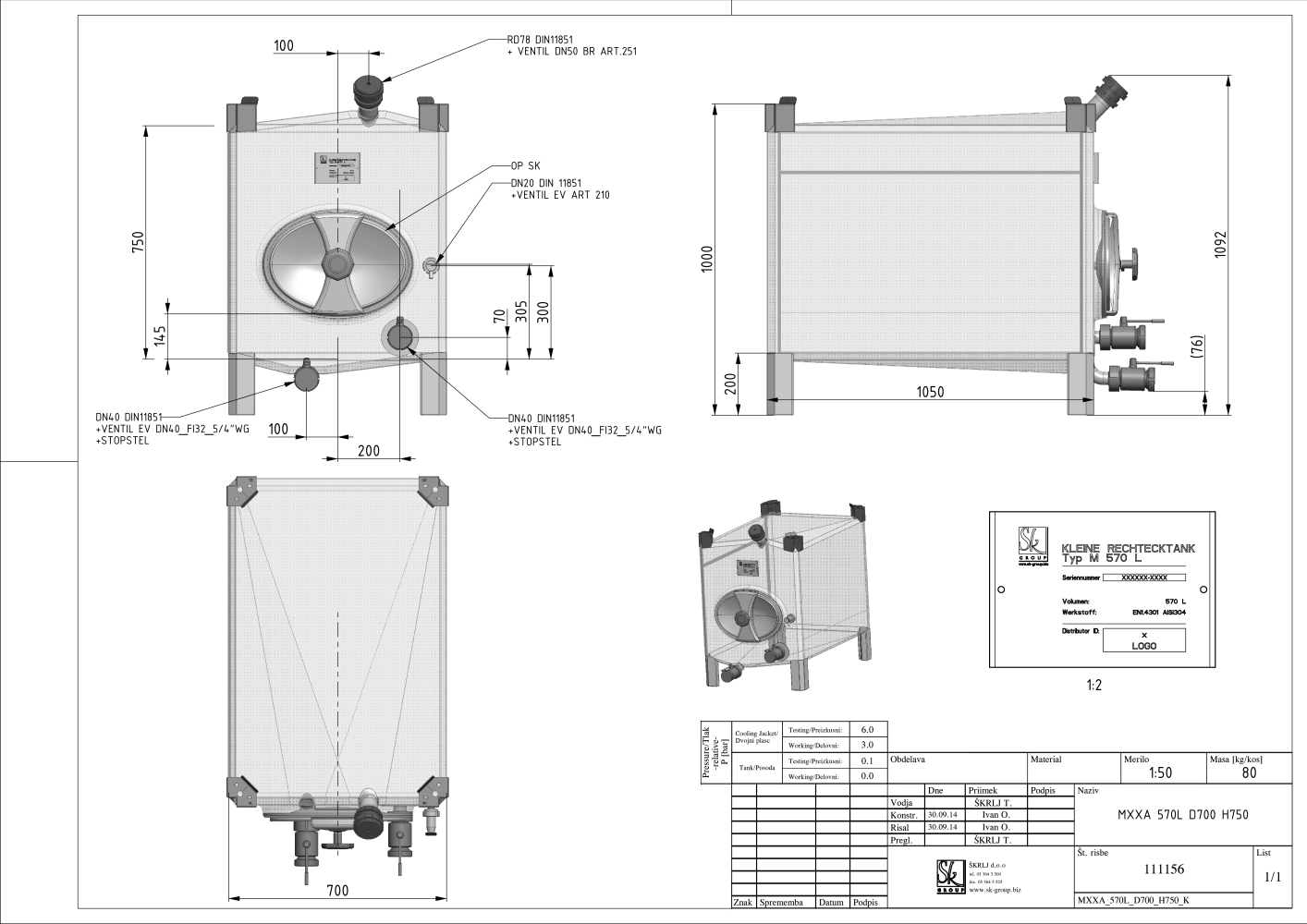

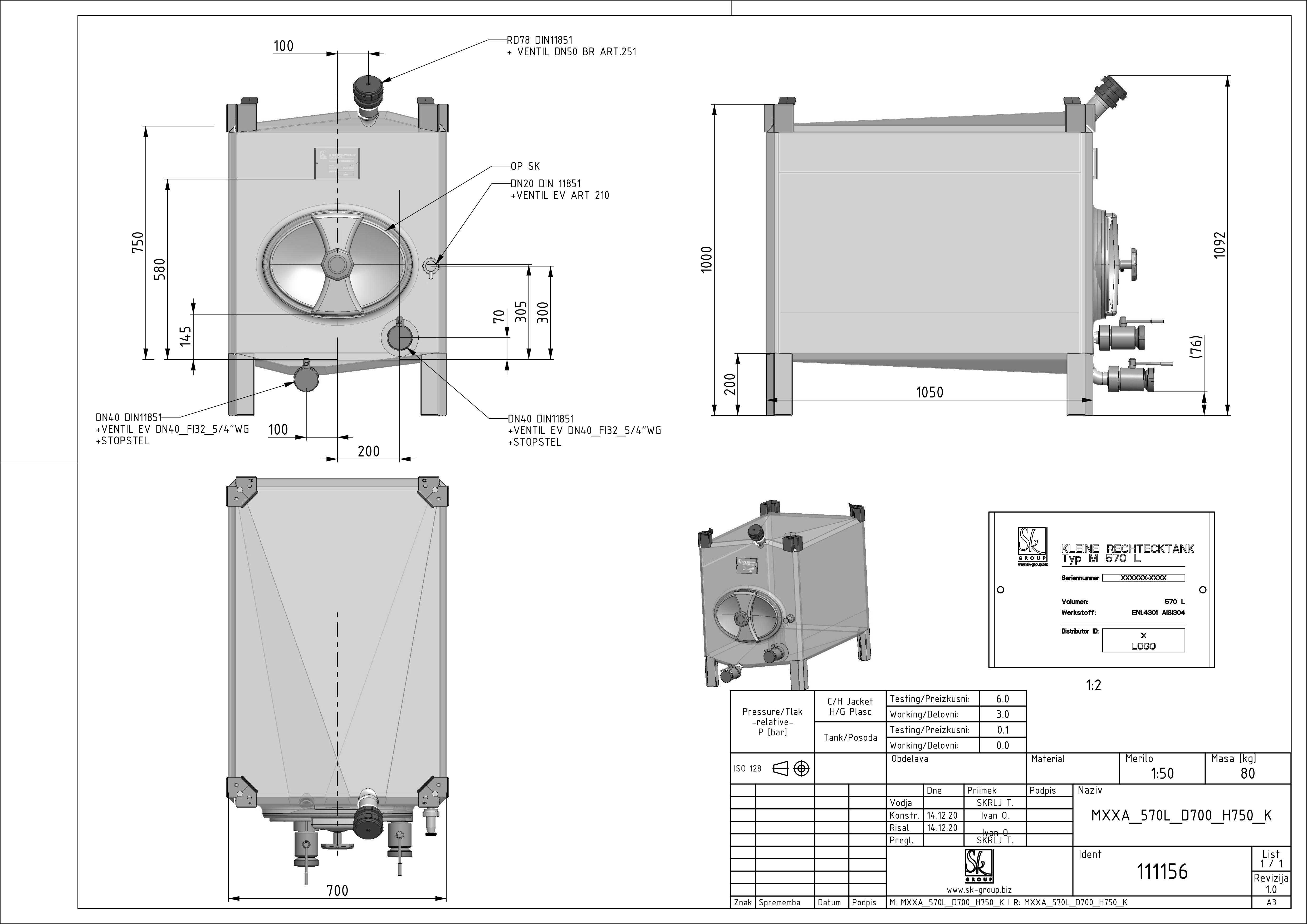

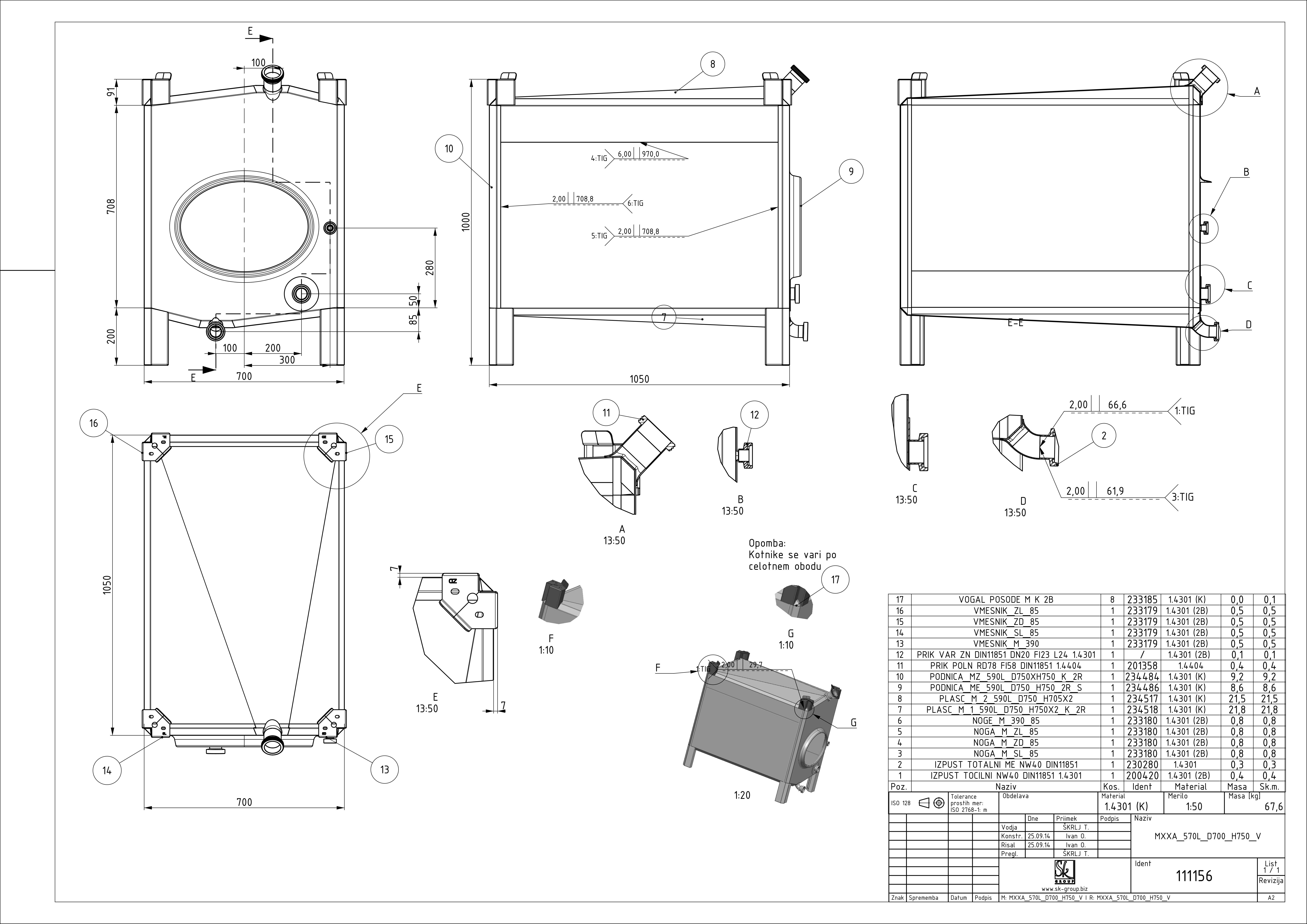

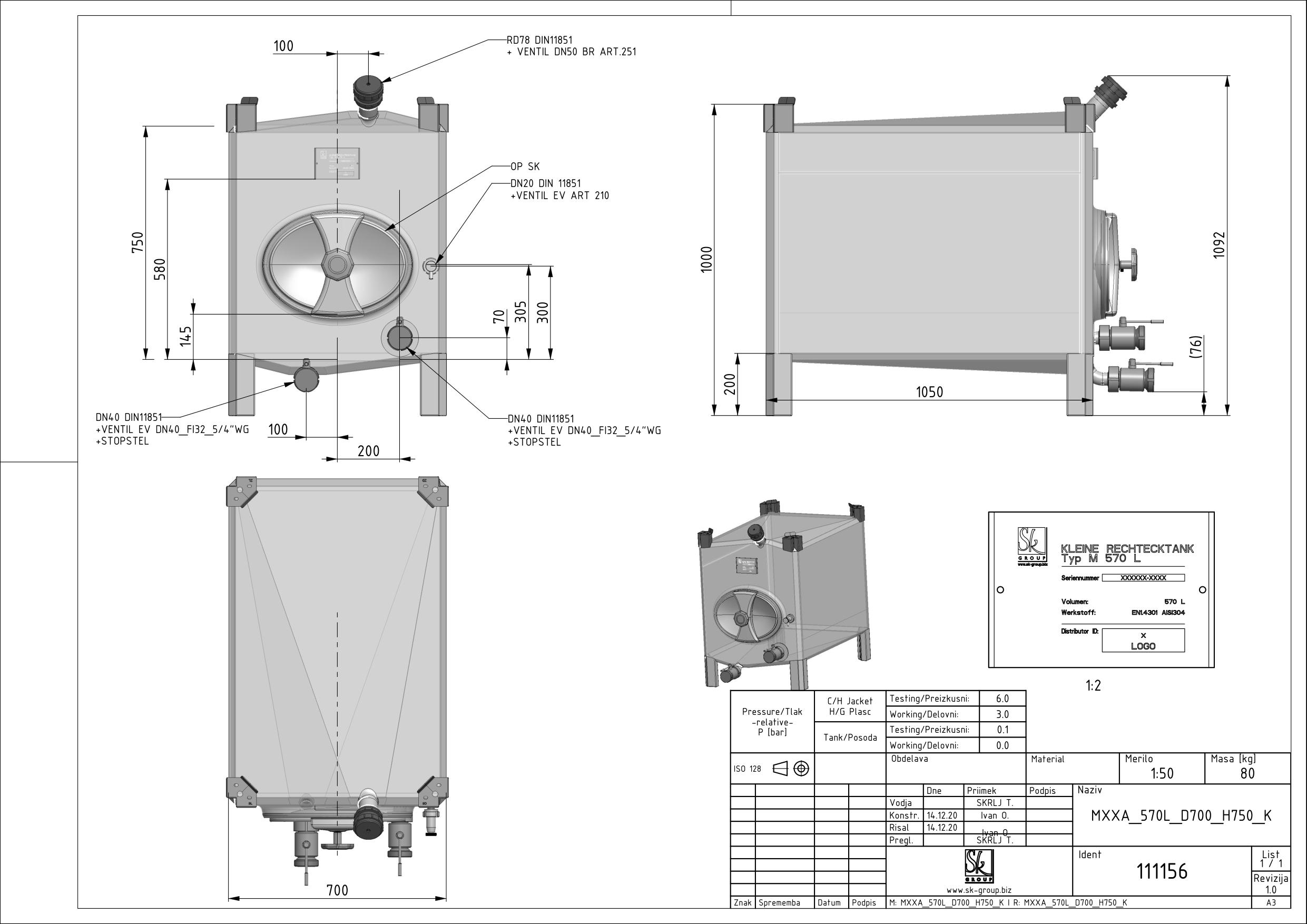

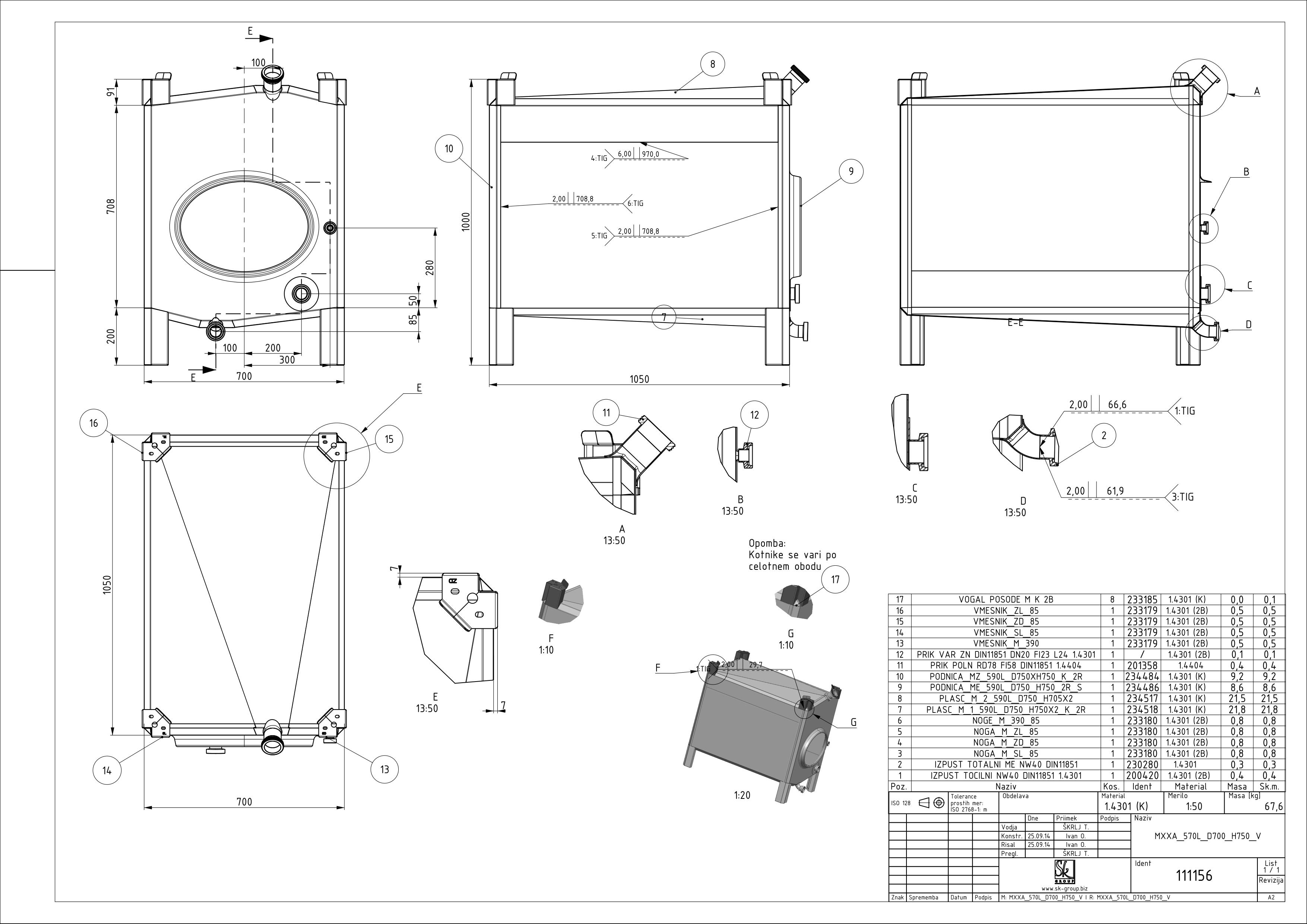

Small rectangular storage tank
MXXA 570 D700 G1050 H750 0/ATM RW
Material: 111156
Standard: RW
Nominal volume in L: 570
Width D in mm: 700
Depth G in mm: 1050
Height H in mm: 750
Height Z in mm: 1050
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
