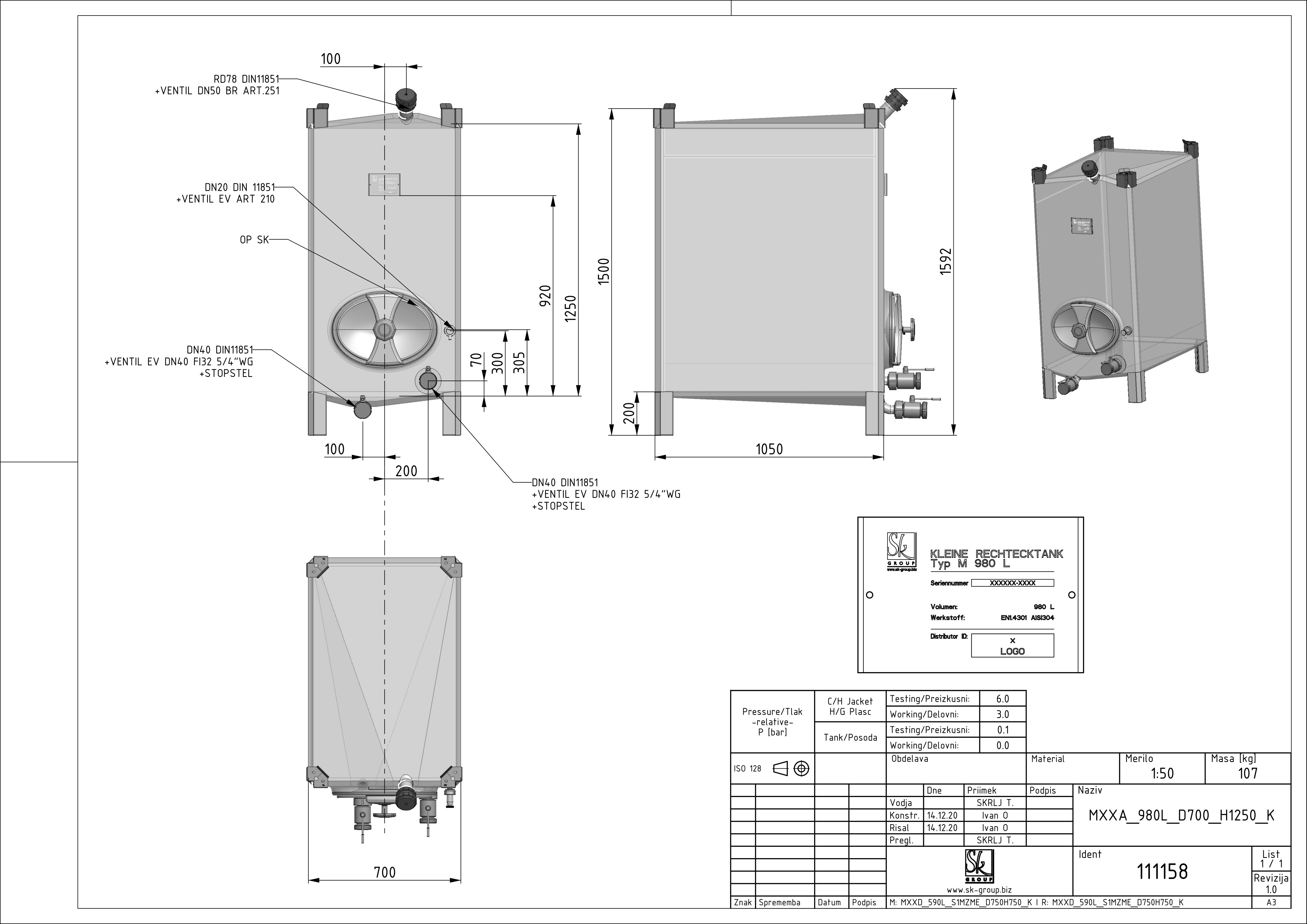

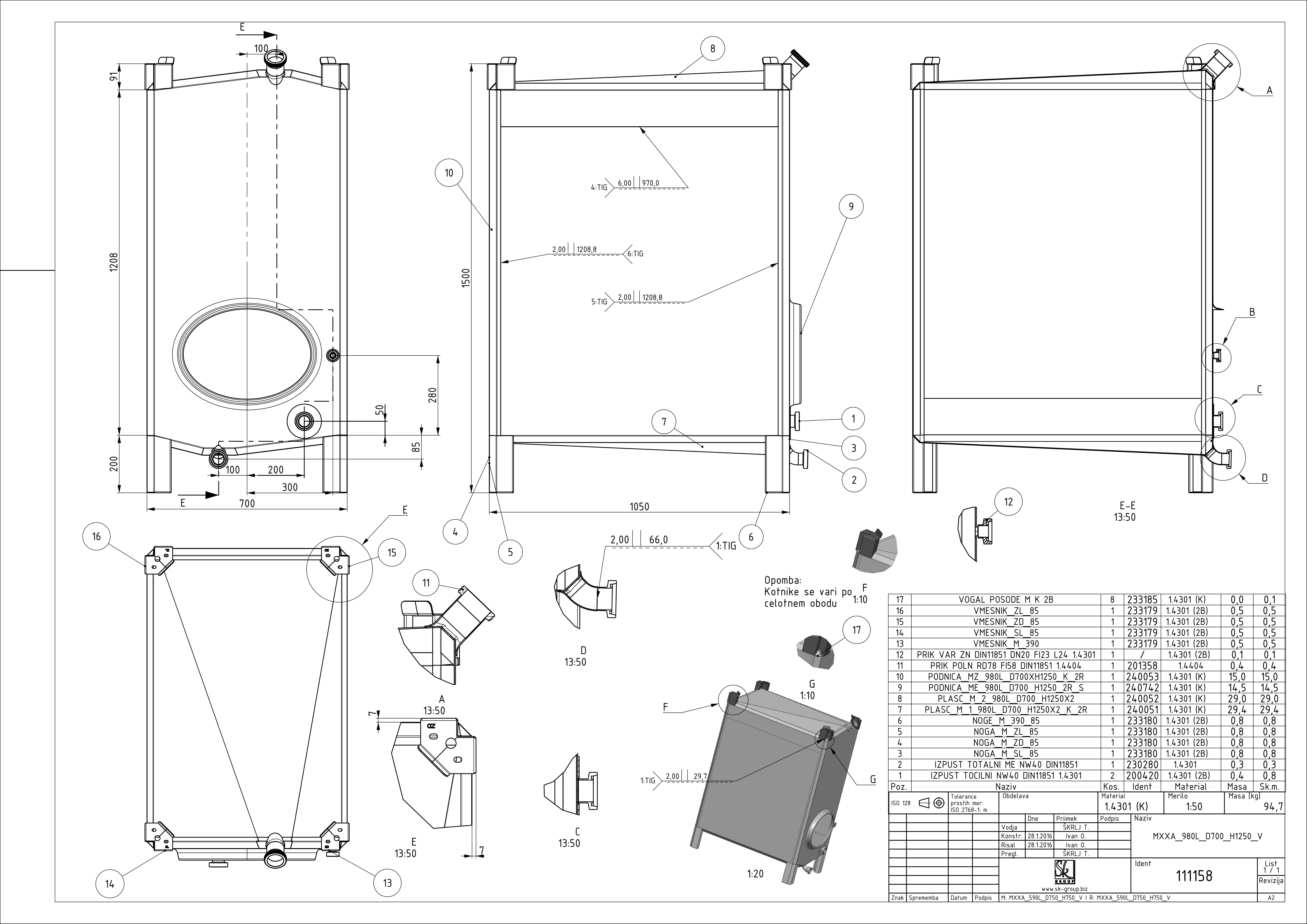

Small rectangular storage tank
MXXA 980 D700 G1050 H1250 0/ATM RW
Material: 111158
Standard: RW
Nominal volume in L: 980
Width D in mm: 700
Depth G in mm: 1050
Height H in mm: 1250
Height Z in mm: 1550
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
