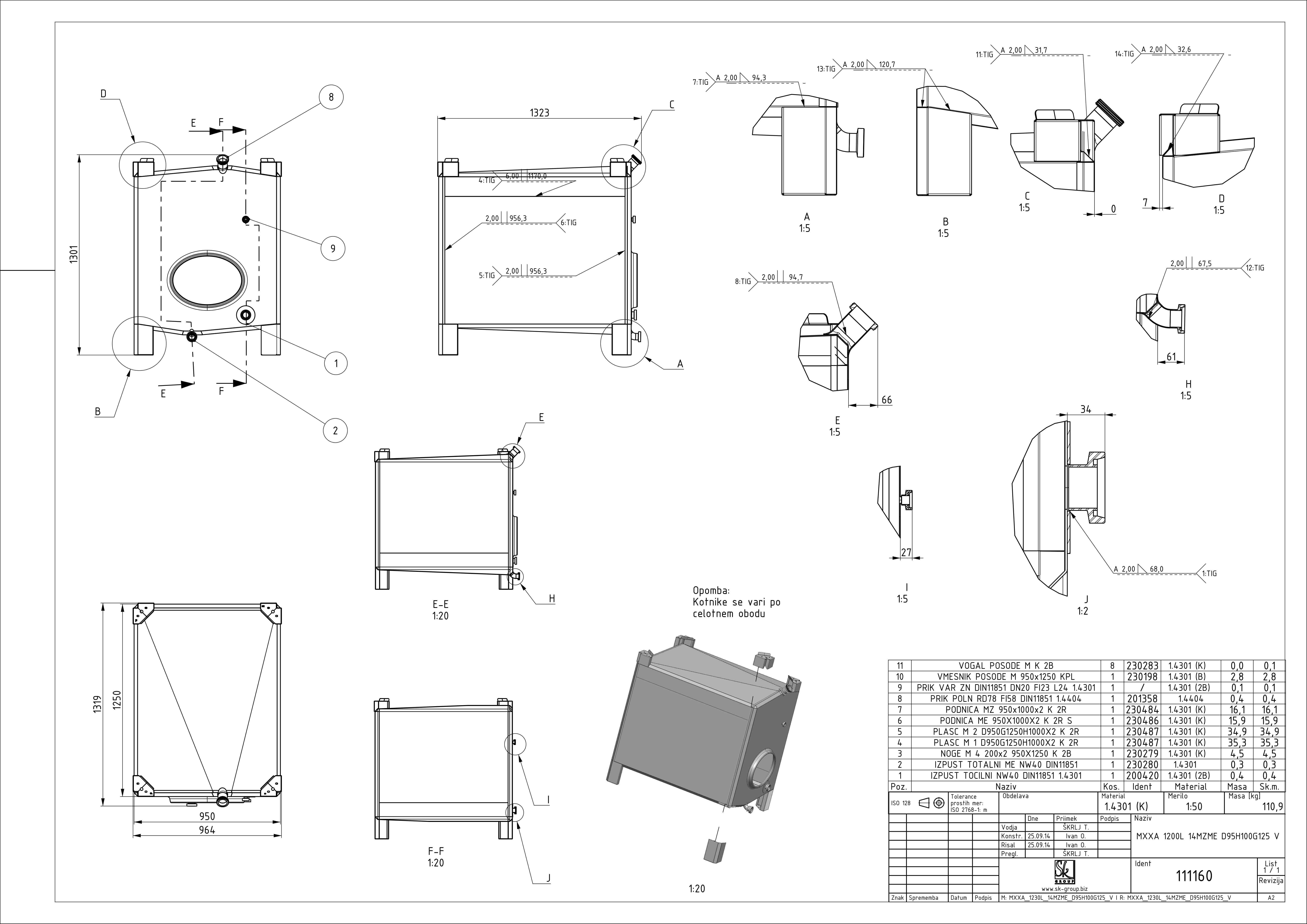

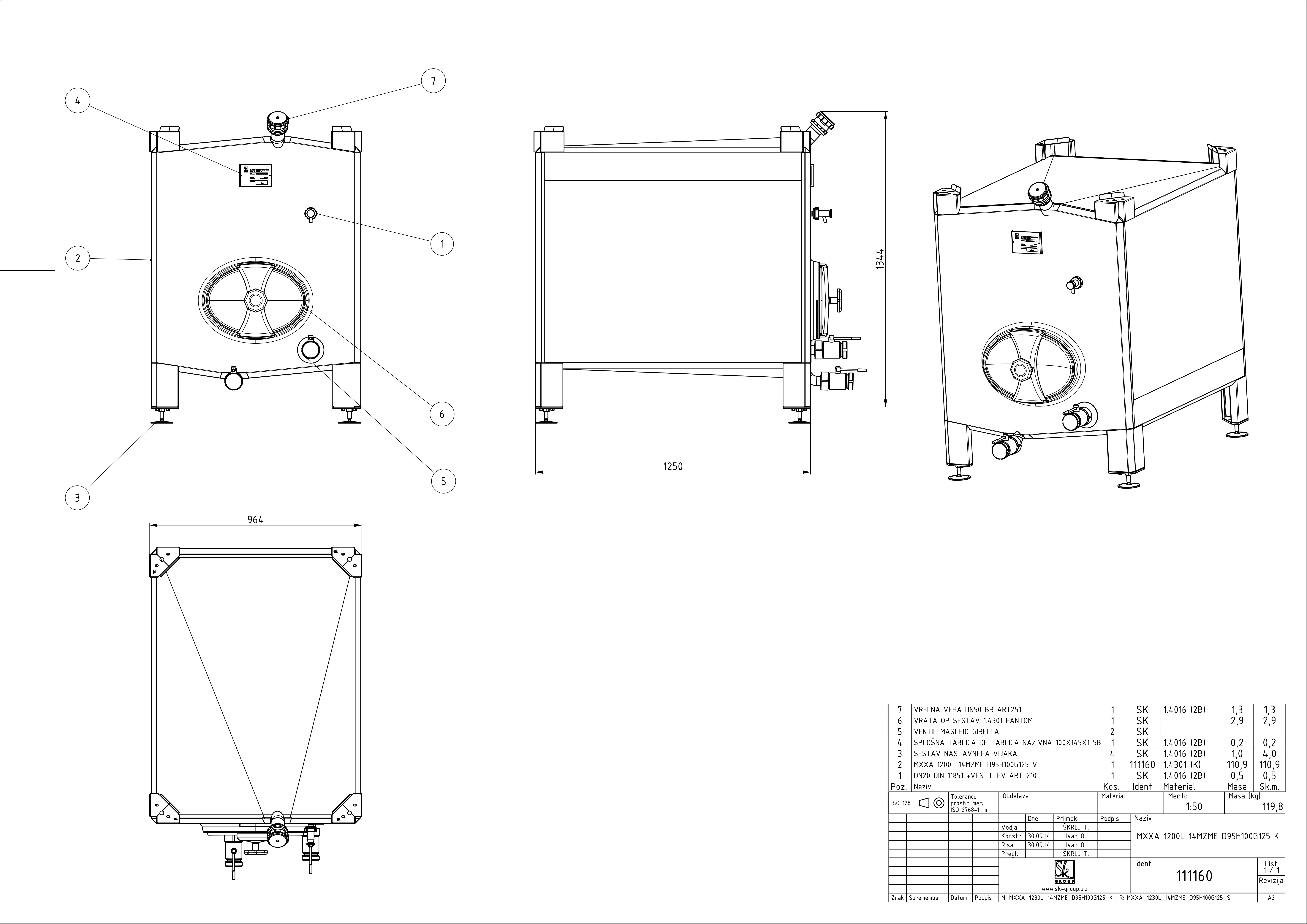

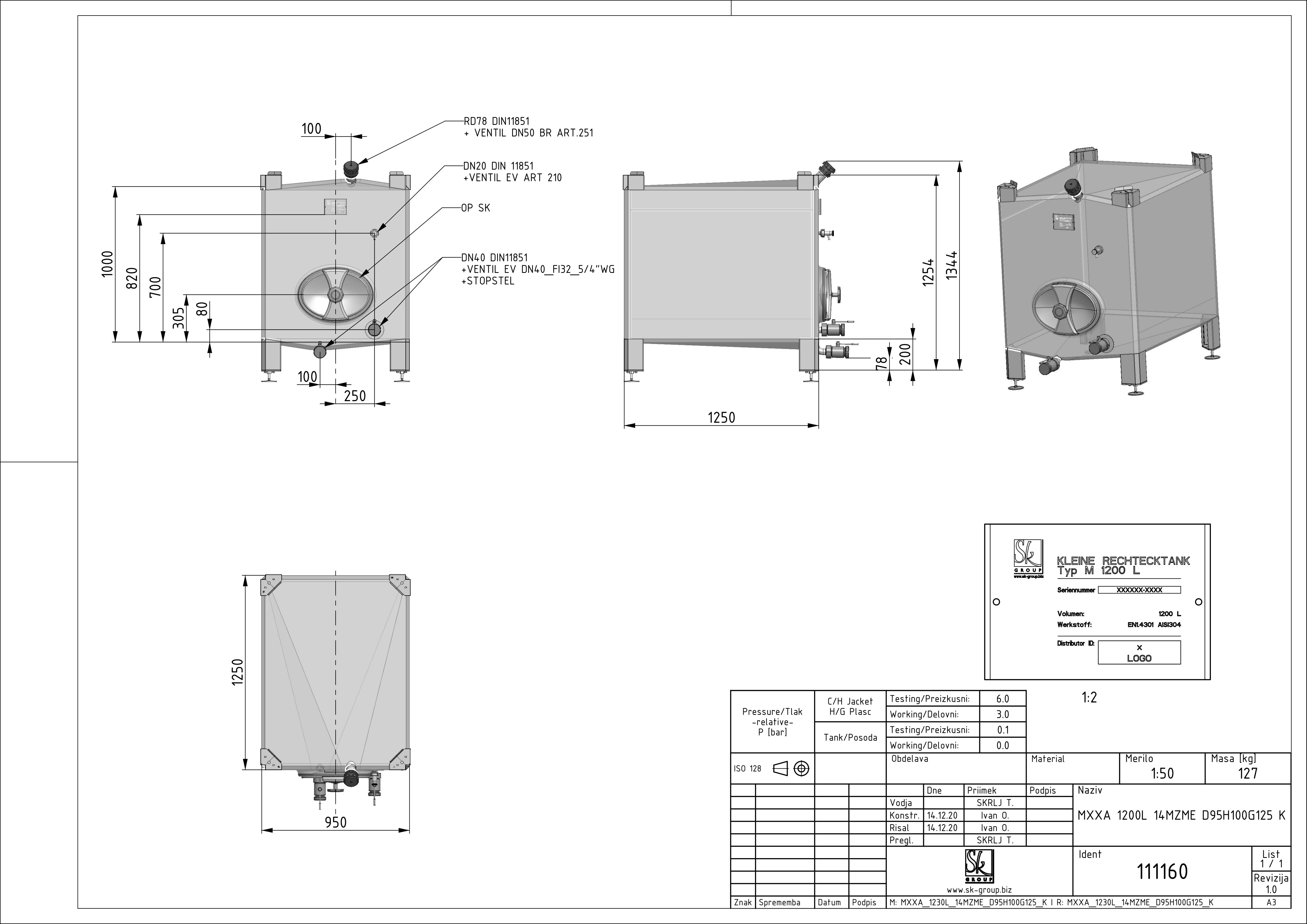

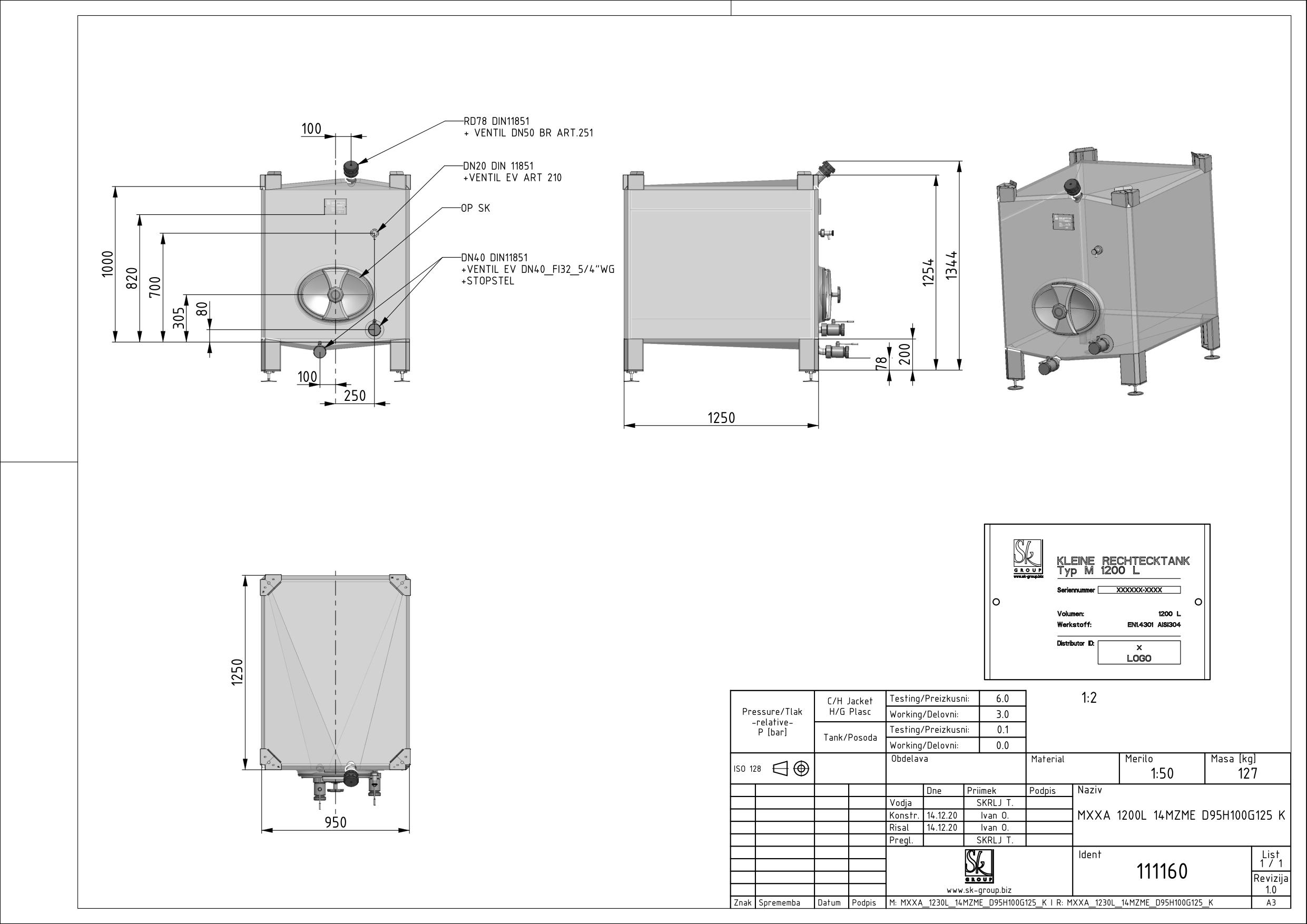

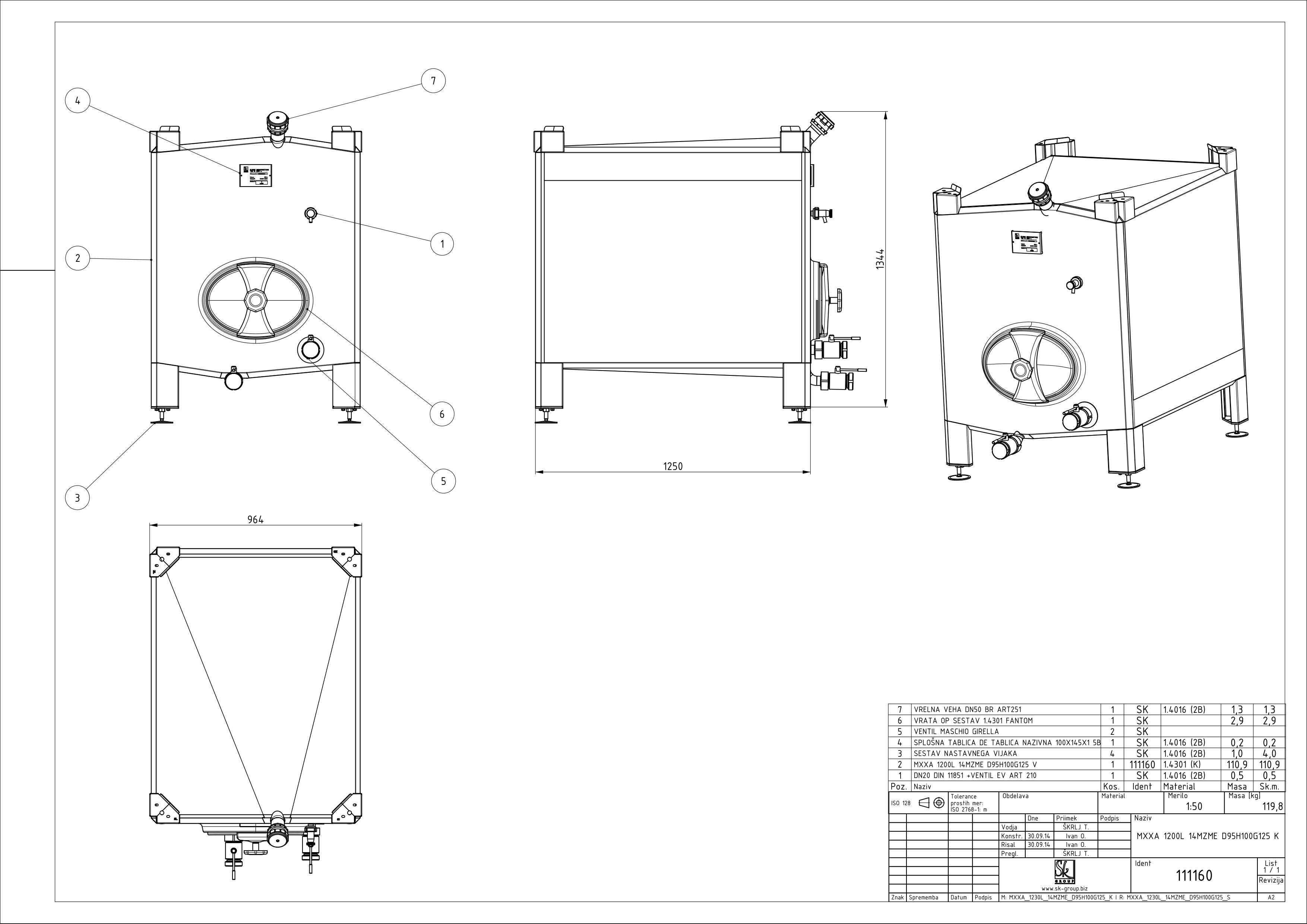

Small rectangular storage tank
MXXA 1230 D950 G1250 H1000 0/ATM RW
Material: 111160
Standard: RW
Nominal volume in L: 1230
Width D in mm: 950
Depth G in mm: 1250
Height H in mm: 1000
Height Z in mm: 1290
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
