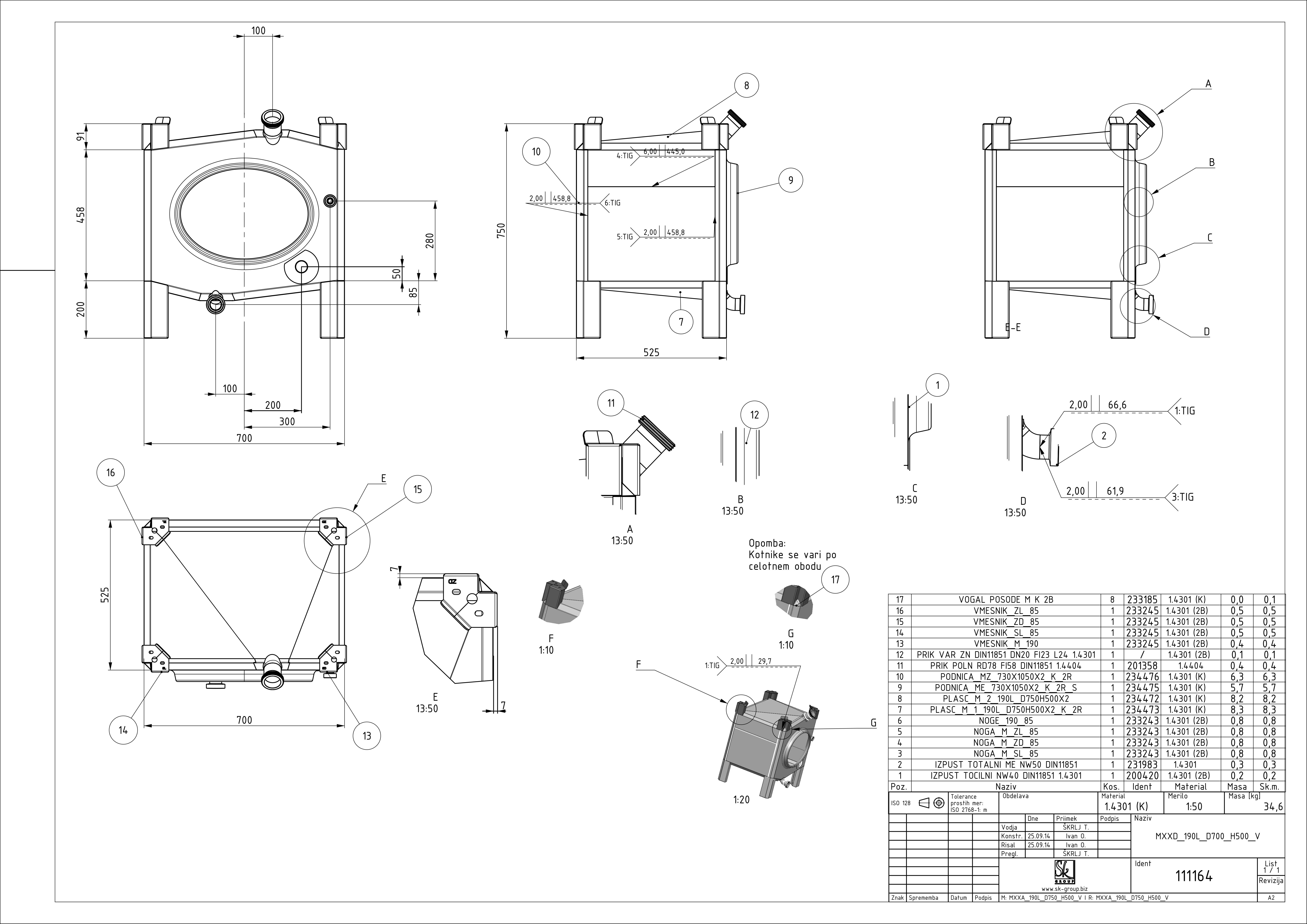

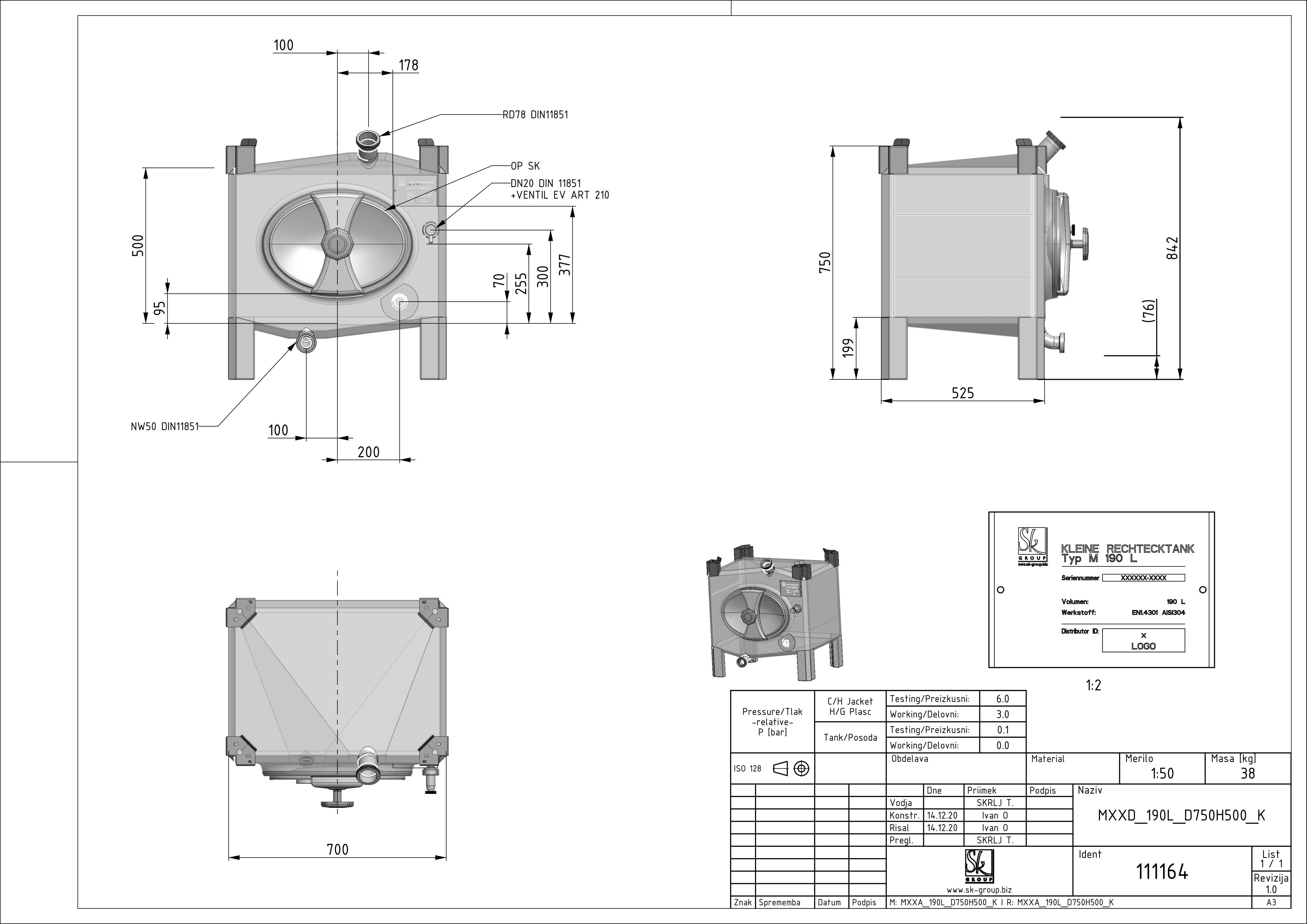

Small rectangular storage tank

MXXD 190 D700 G525 H500 0/ATM

Article no.: 111164

Made of Stainless steel (inox, stainless).

Standard: KL

Nominal volume in L: 190

Width D in mm: 700

Depth G in mm: 525

Jacket height H in mm: 500

Total height Z in mm: 750/790

Load: 1100 KG

Min. operating press. [barg]: 0

Max. operating pressure [barg]: atmospheric
