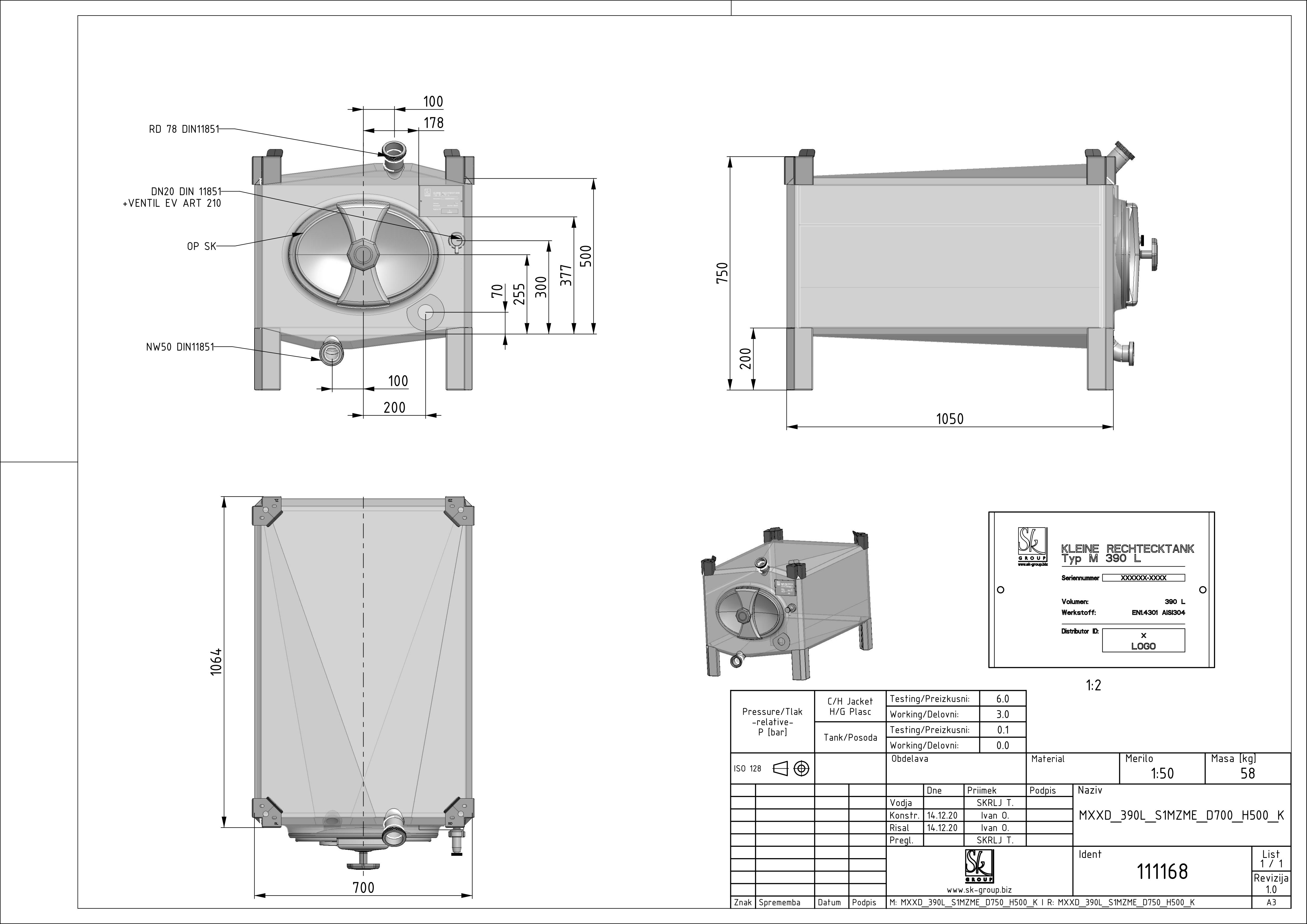

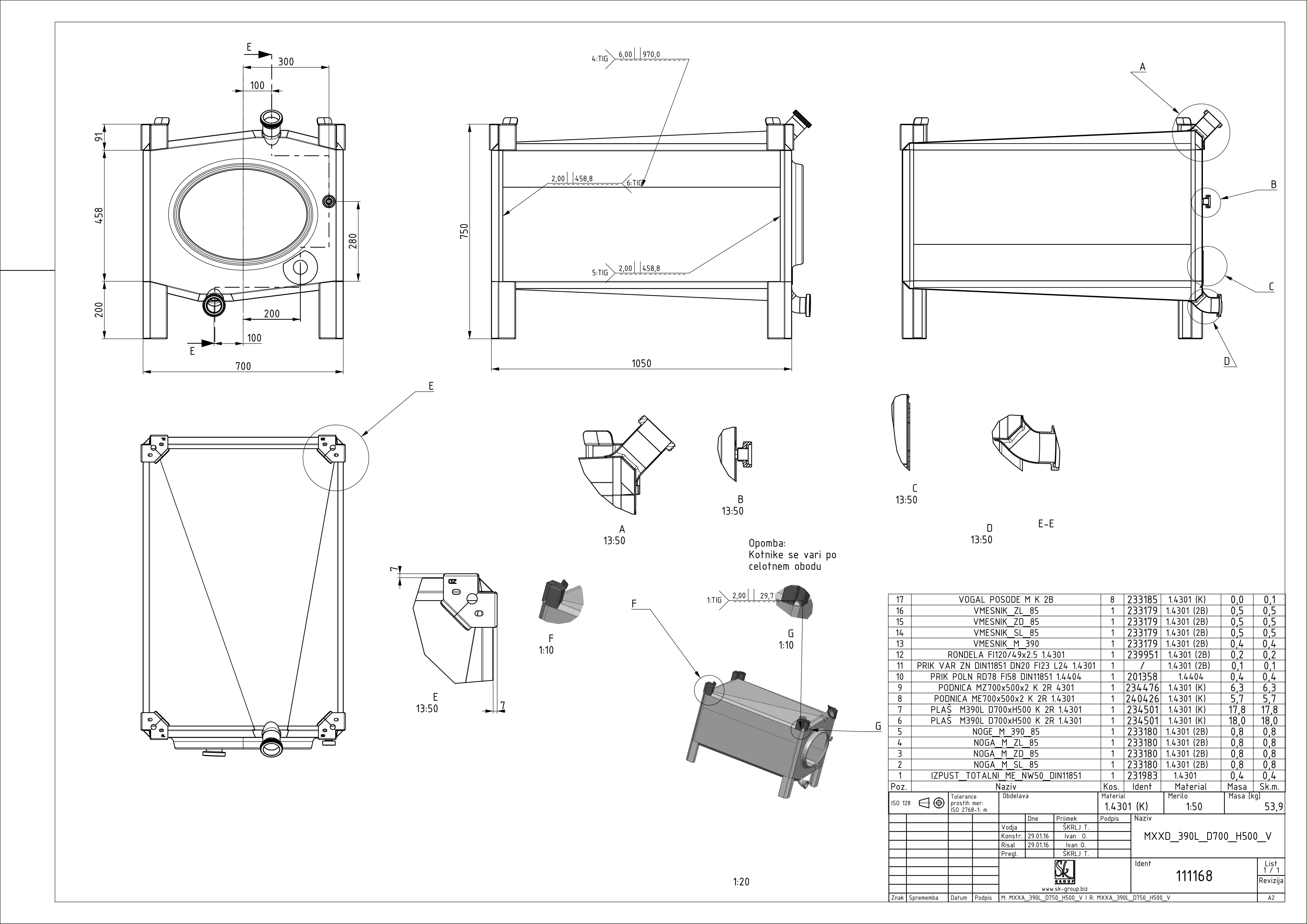

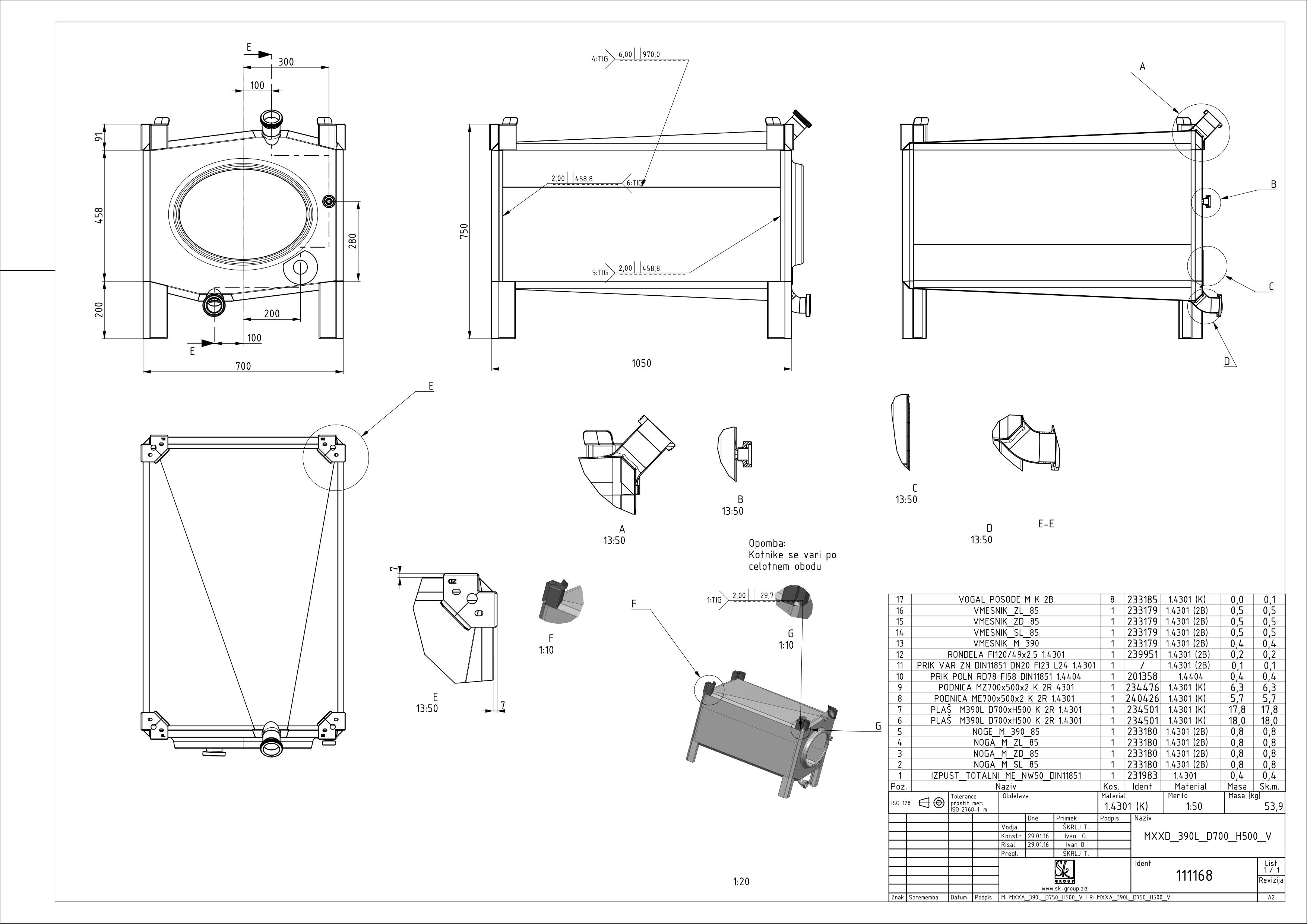

Small rectangular storage tank
MXXD 390 D700 G1050 H500 0/ATM KL
Material: 111168
Standard: KL
Nominal volume in L: 390
Width D in mm: 700
Depth G in mm: 1050
Height H in mm: 500
Height Z in mm: 750/790
Load: 1100
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
