E03 Semiautomatic Labeling Machine
E03 230 230V 50/60HZ F2
Material: 114425
Use: The labeling machine is used for applying labels on bottles and other containers of similar cylindrical shape. It enables the a pplication of one or two labels on the same object (front and back; from same label roll). The labeling machine's support frame is made of stainless material. Its robust design and quality materials guarantee a long service life, reliability, and easy maintenance.
Additional photocell: The additional F2 photoelectric sensor detects the existing label or emblem on the bottle and enables precise positioning and application of the (second) label.
Capacity: 500-900 bottles per hour (one label)
Bottle diameter: 55-115 mm

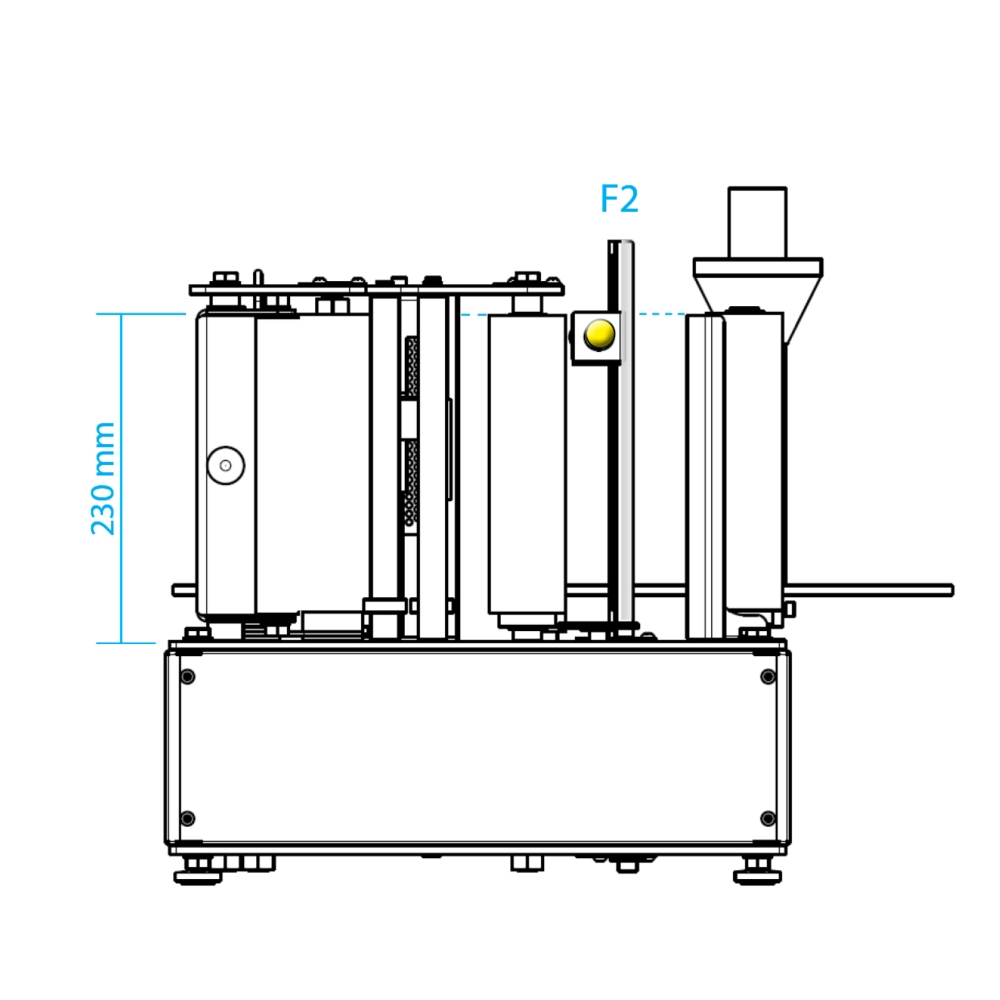

Roller height: 230 mm
Max. roll height: 190 mm
Max. object conicity: ≤ 1°
Input power: 0,2kW
Supply voltage: 230V 50/60Hz
Weight [kg]: approx. 55 kg
