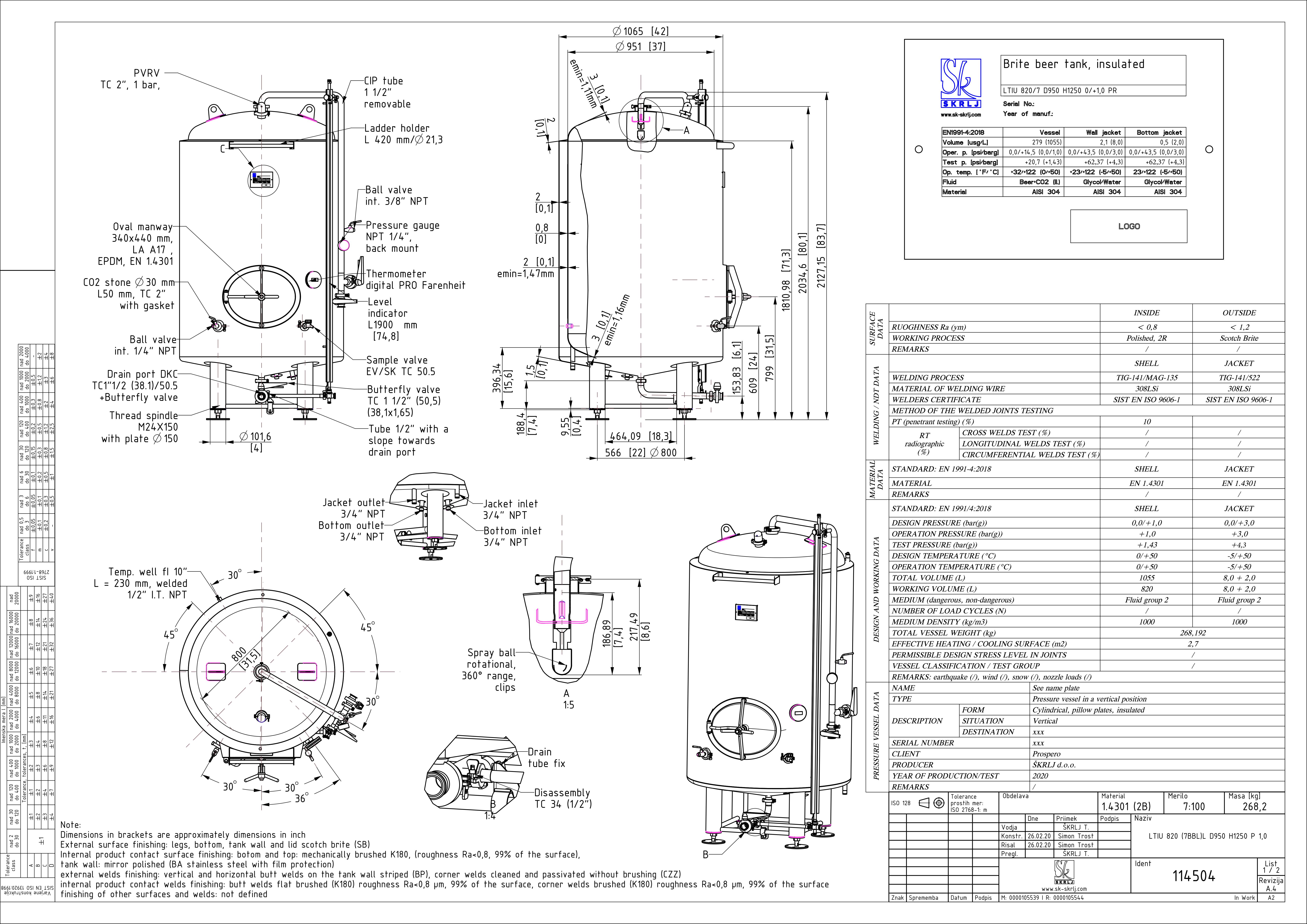

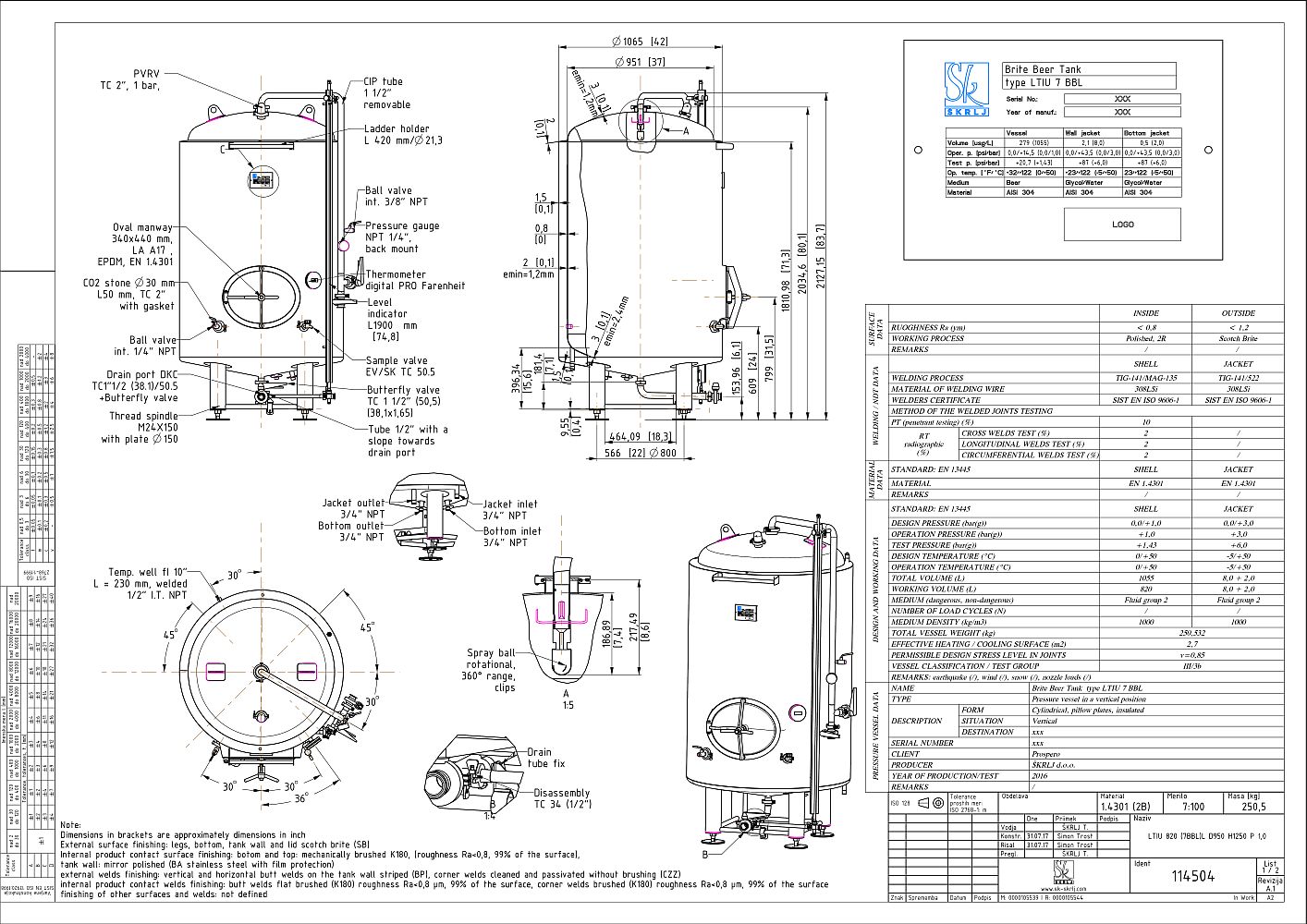

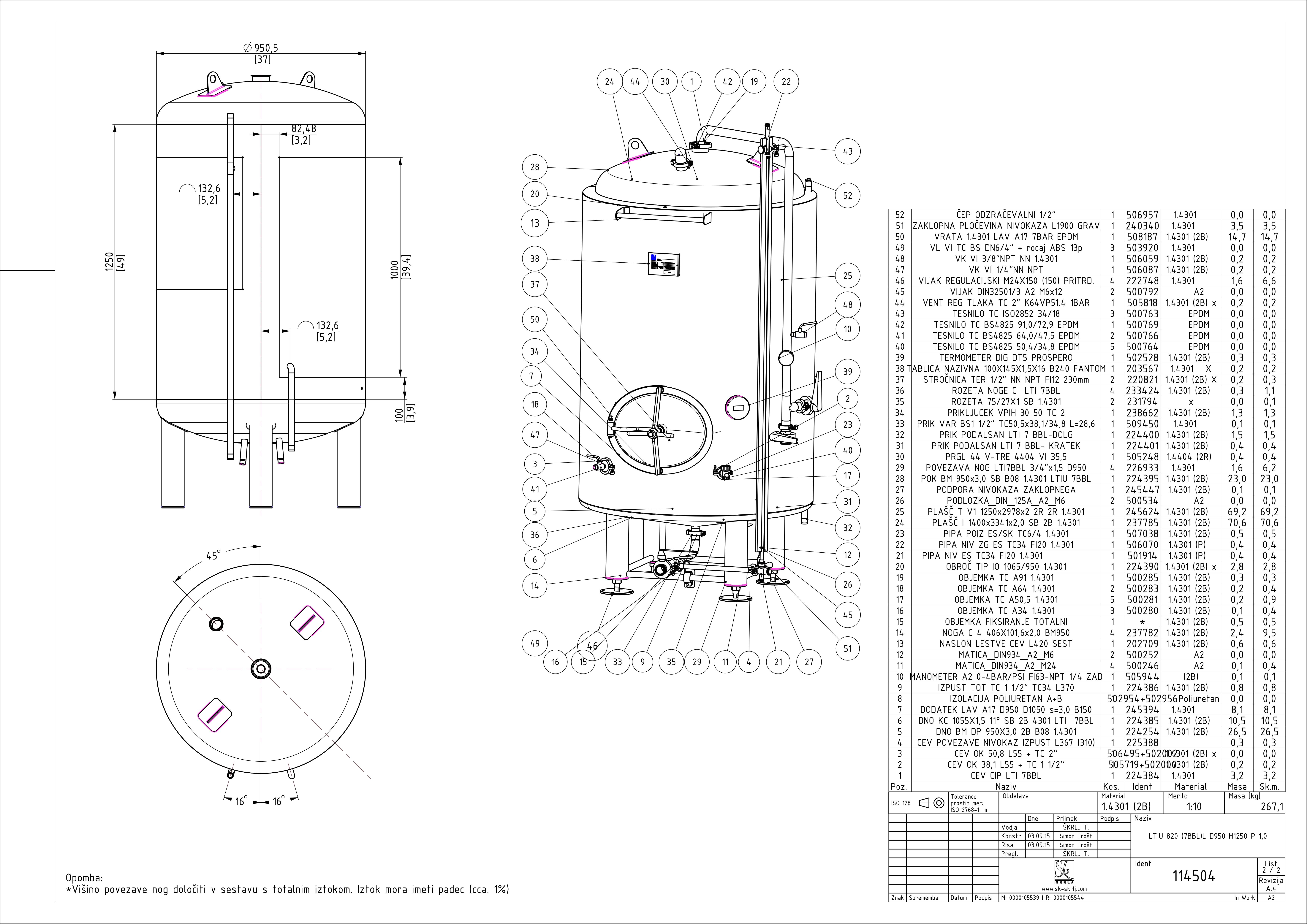

Brite beer tank, insulated
LTIU 820/7 D950 H1250 0/+1,0 PR
Material: 114504
Standard: PR
Nominal volume in L: 820
Geometrical volume [l]: 1055
Nominal volume [bbl]: 7
Internal diameter in mm: 950
External diameter [mm]: 1050
Height H in mm: 1250
Height Z in mm: 2130
Internal diameter [in]: 37
External diameter [in]: 42
Height H [in]: 49
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: +1,4
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
