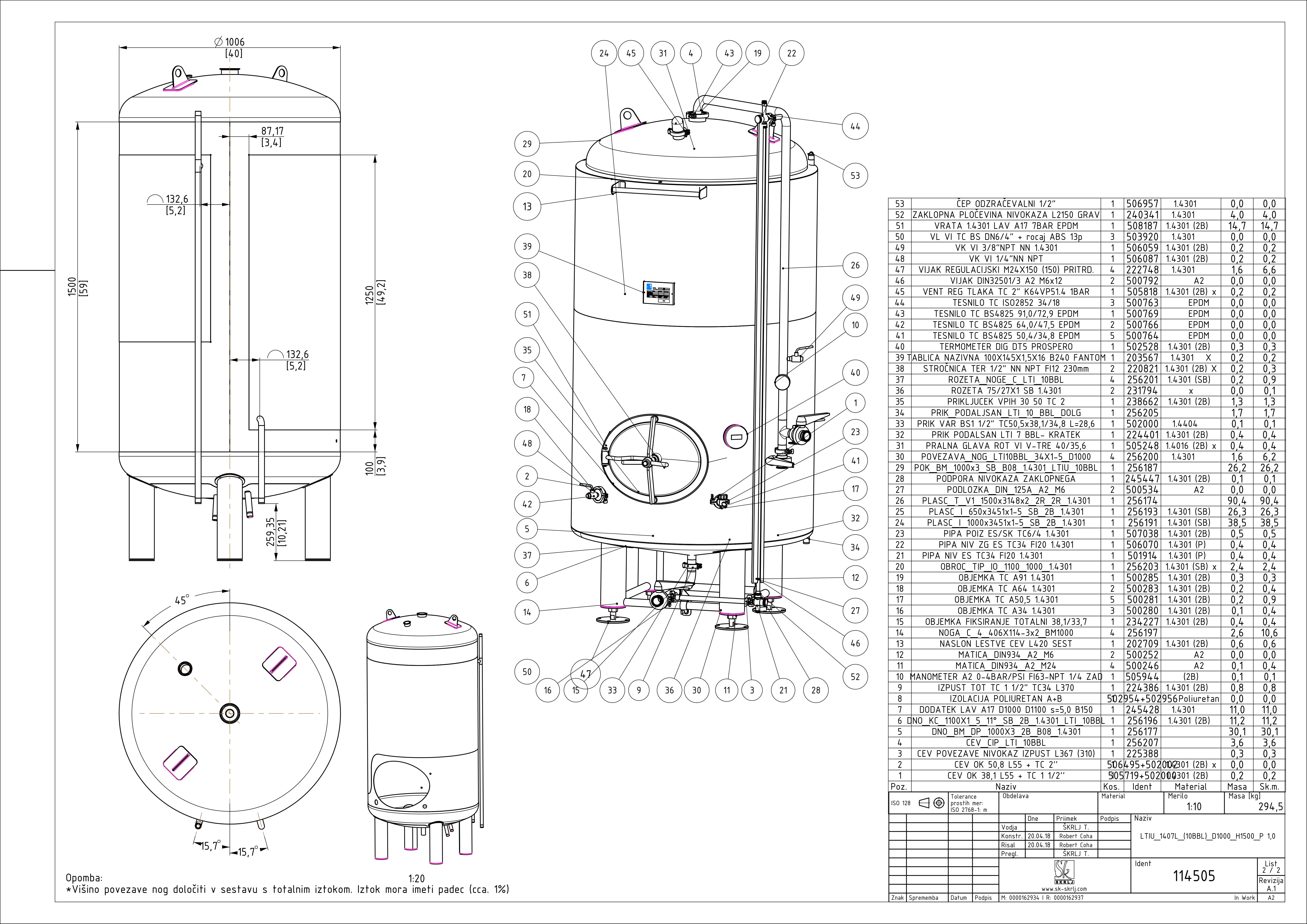

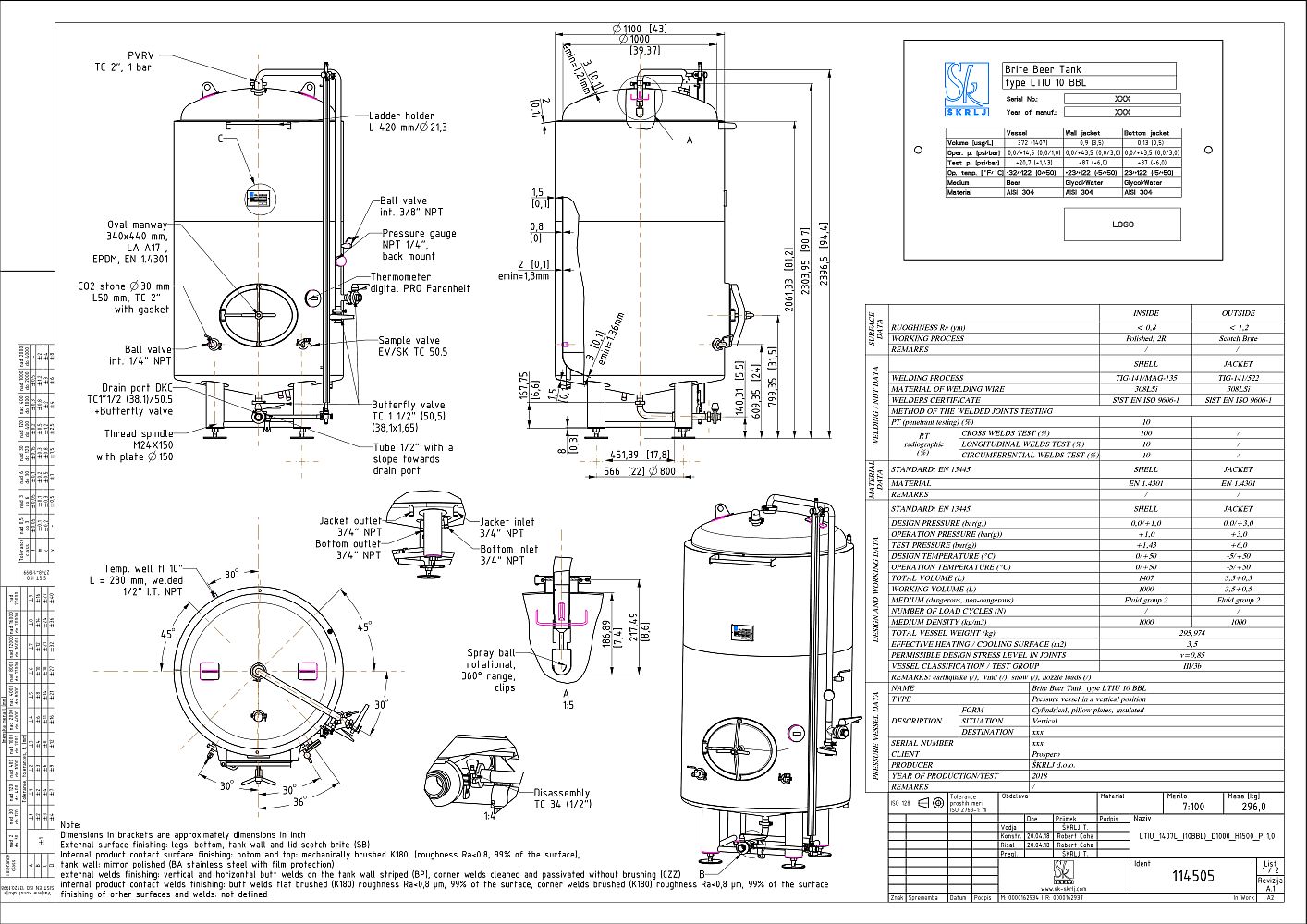

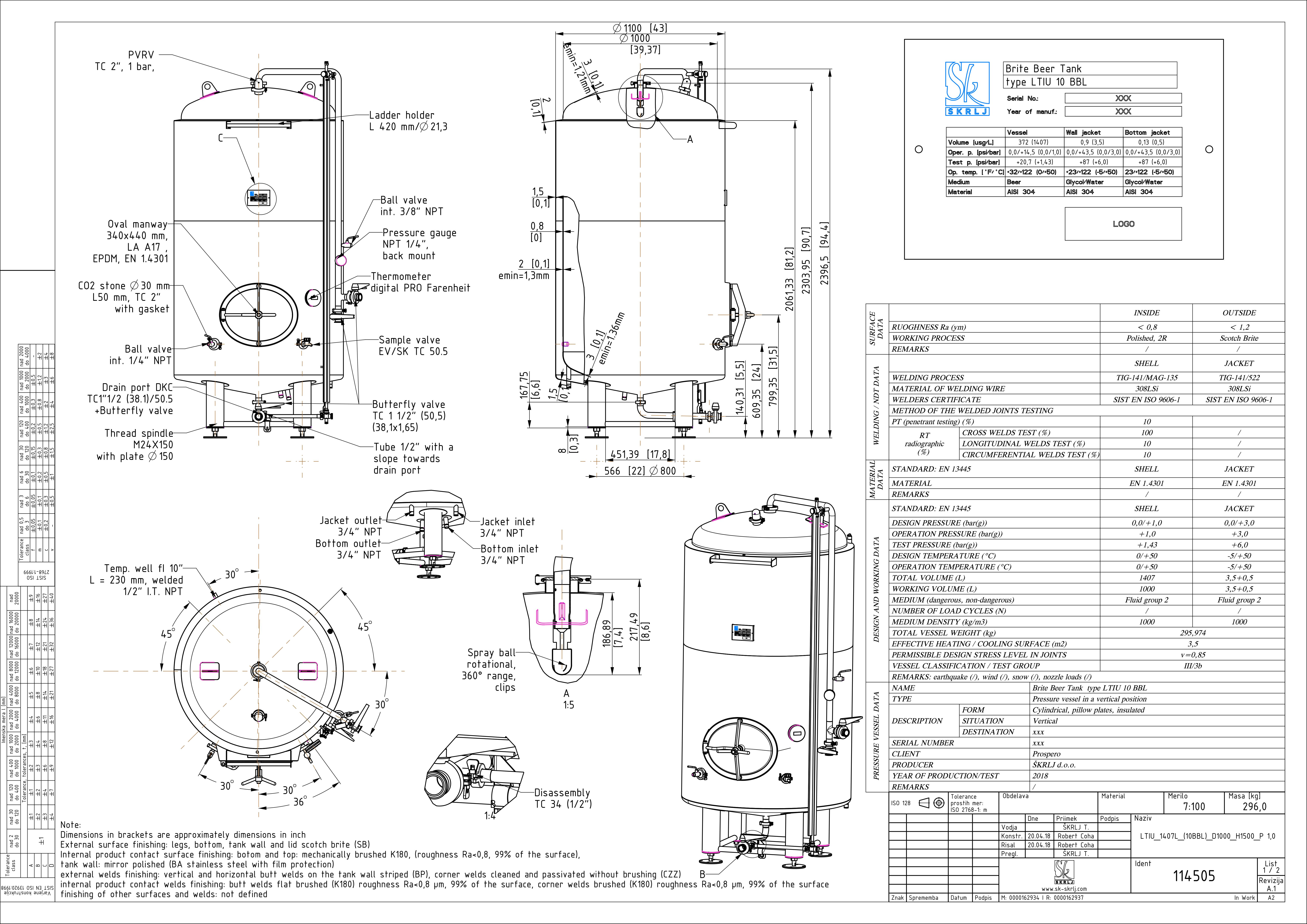

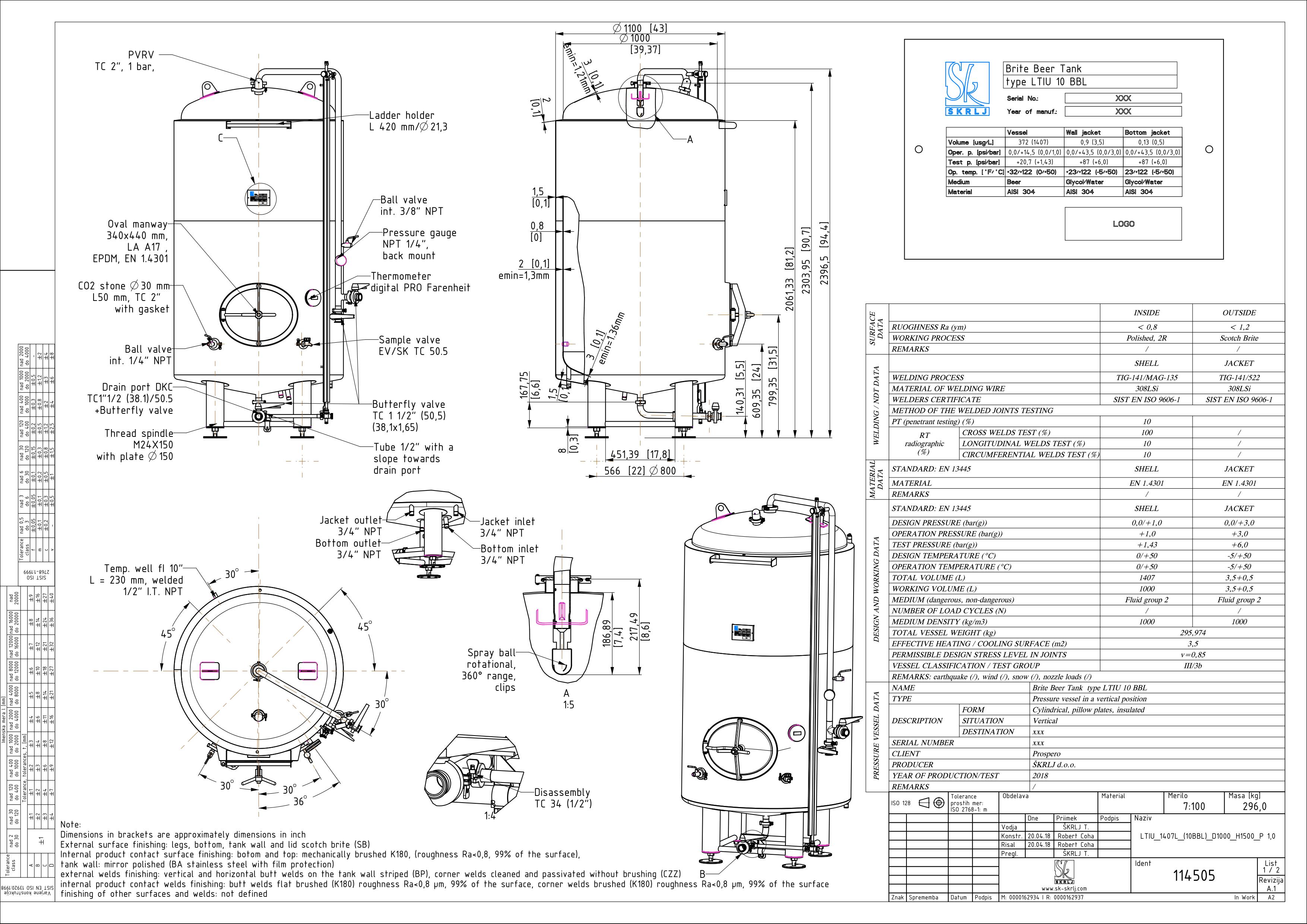

Brite beer tank, insulated
LTIU 1175/10 D1000 H1500 0/+1,0 PR
Material: 114505
Standard: PR
Nominal volume in L: 1175
Geometrical volume [l]: 1376
Nominal volume [bbl]: 10
Internal diameter in mm: 1000
External diameter [mm]: 1100
Height H in mm: 1500
Height Z in mm: 2350
Internal diameter [in]: 39
External diameter [in]: 43
Height H [in]: 59
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: +1,4
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
