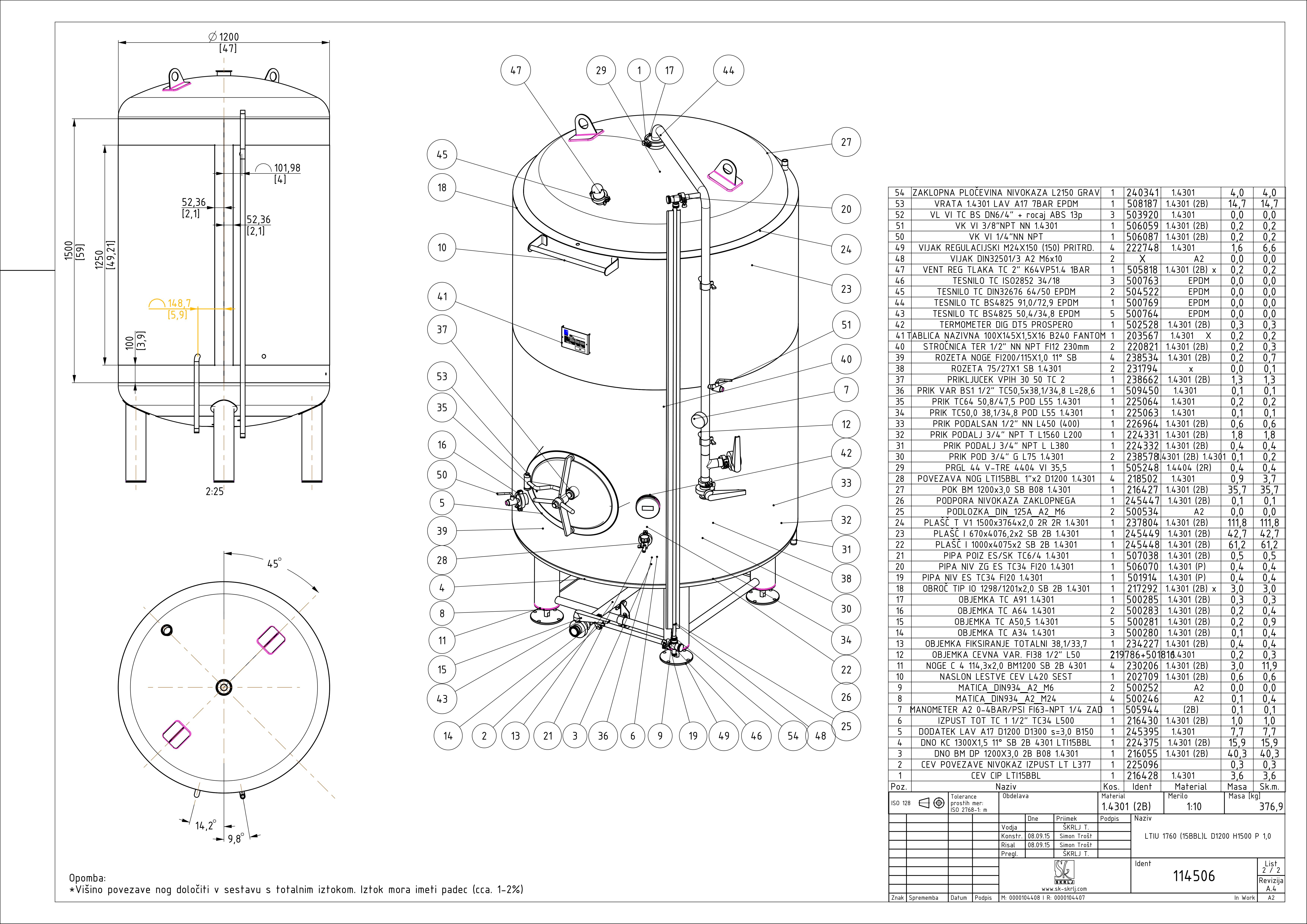

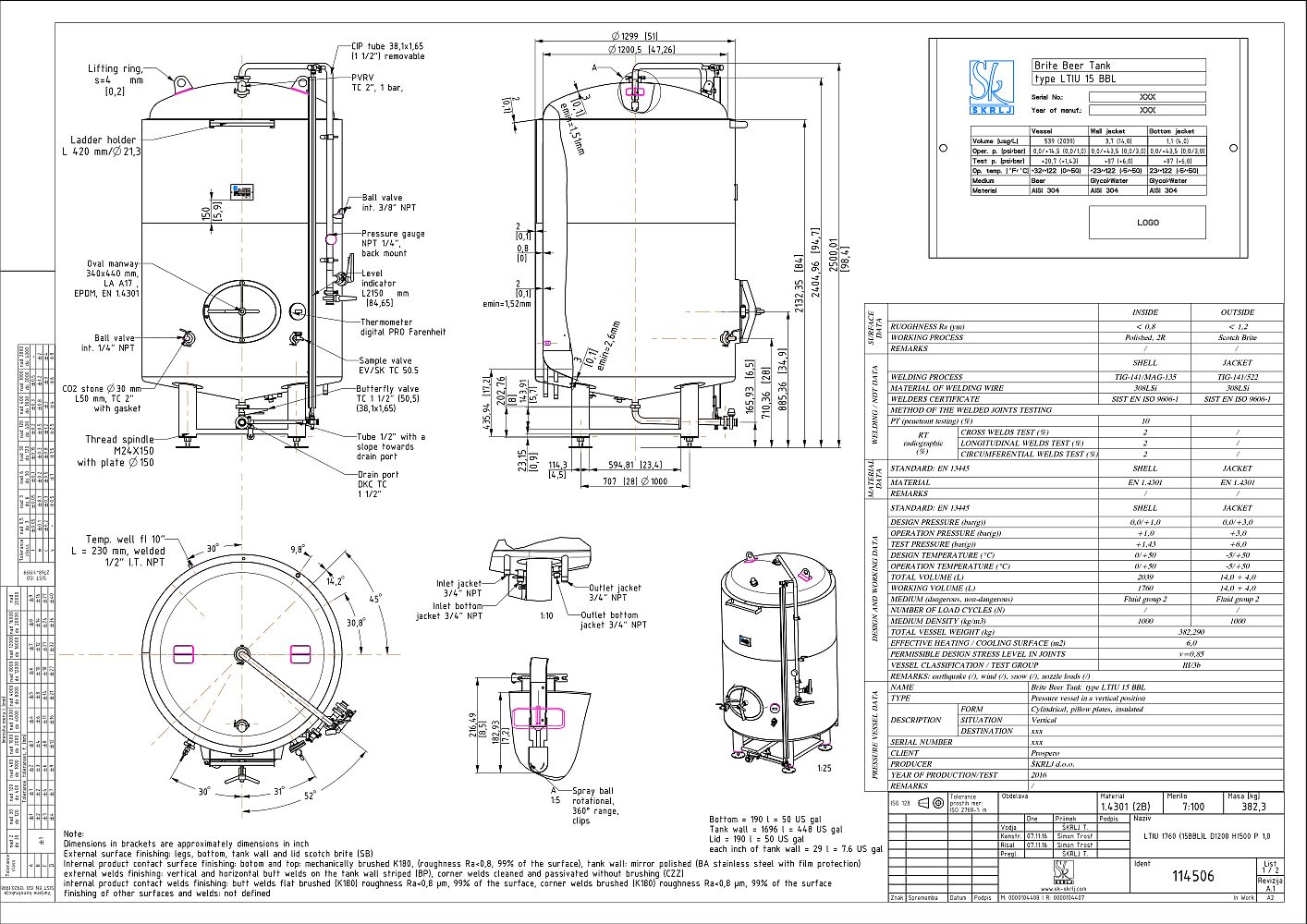

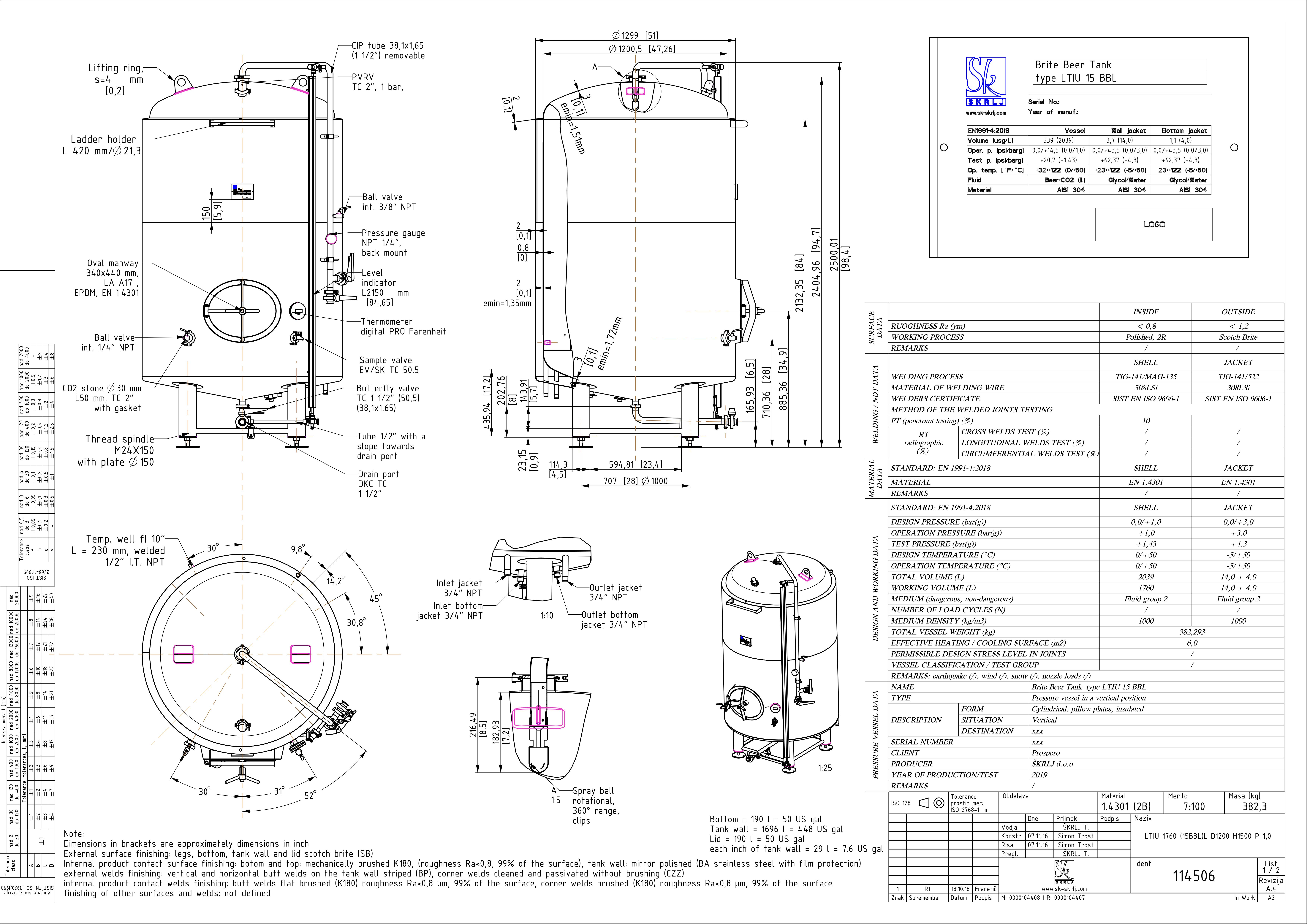

Brite beer tank, insulated
LTIU 1760/15 D1200 H1500 0/+1,0 PR
Material: 114506
Standard: PR
Nominal volume in L: 1760
Geometrical volume [l]: 2039
Nominal volume [bbl]: 15
Internal diameter in mm: 1200
External diameter [mm]: 1300
Height H in mm: 1500
Height Z in mm: 2500
Internal diameter [in]: 47,3
External diameter [in]: 51
Height H [in]: 59
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
