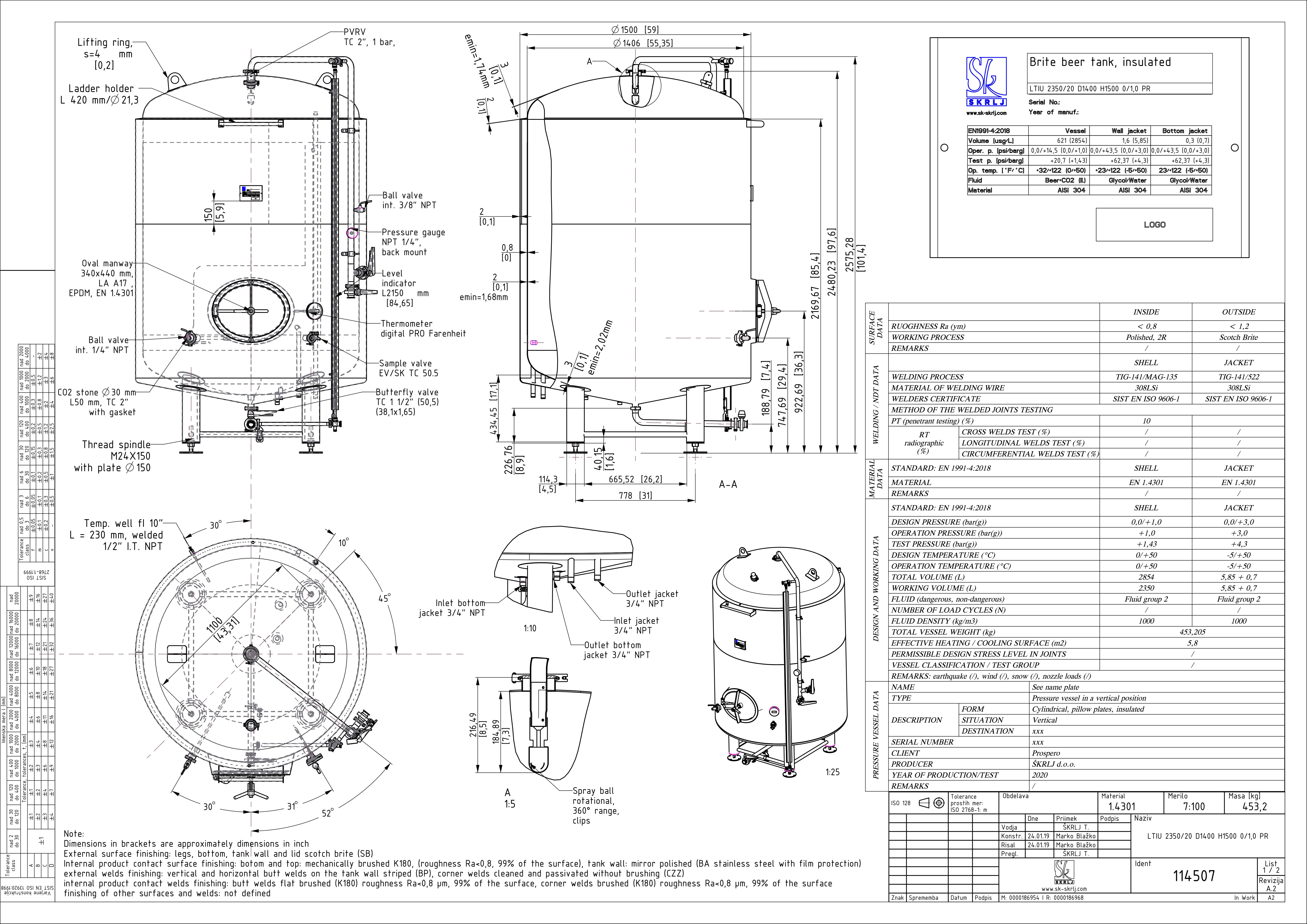

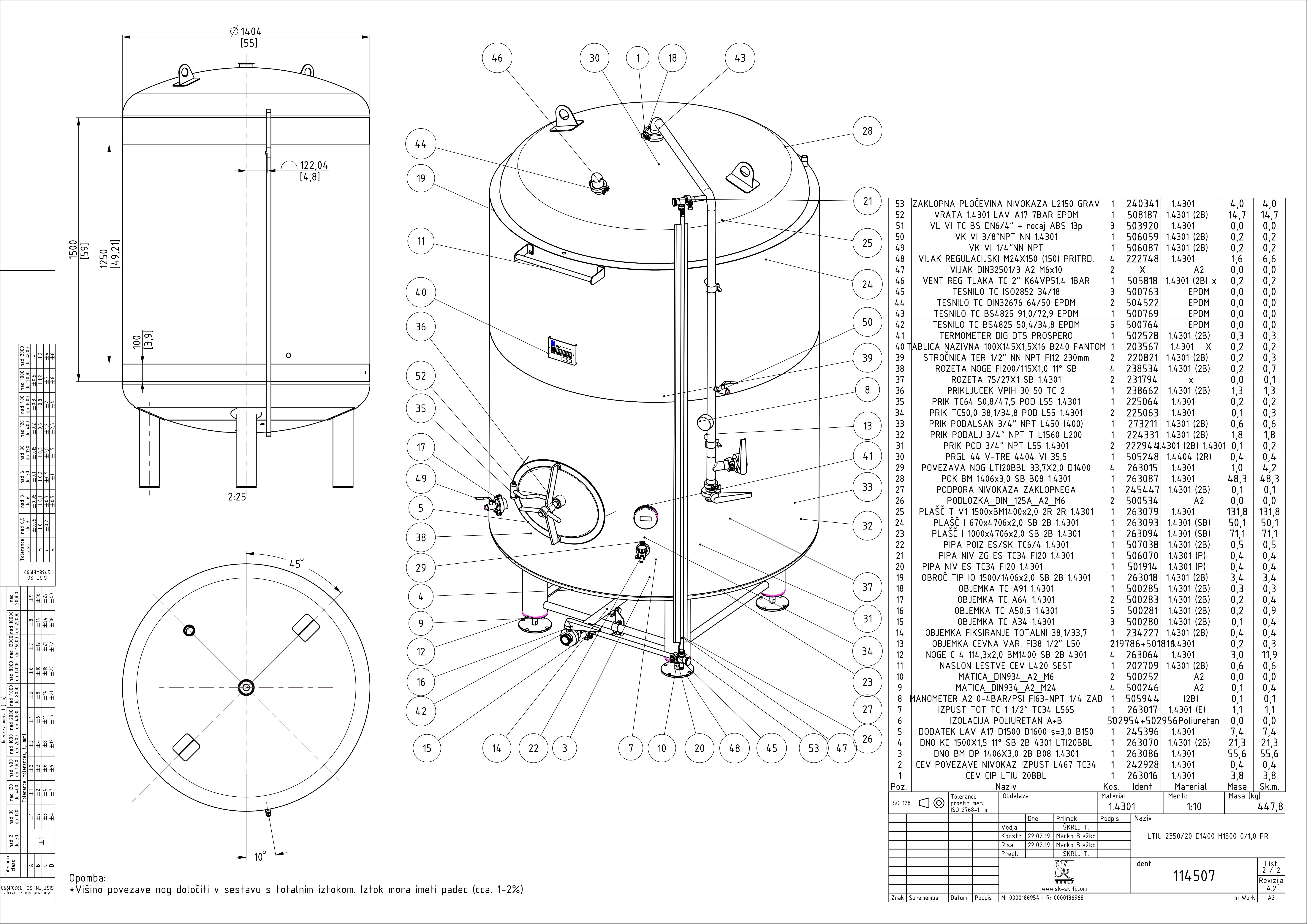

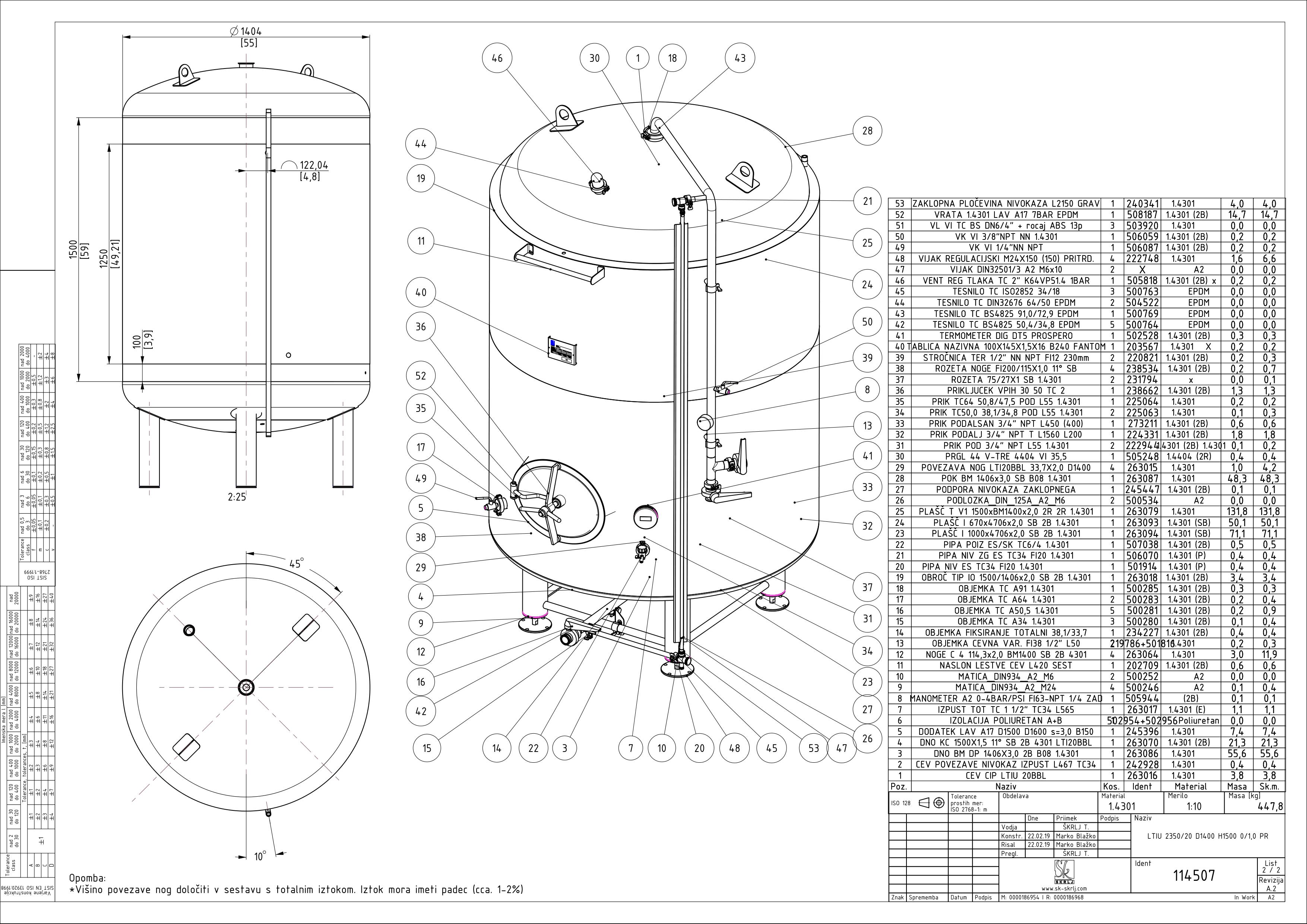

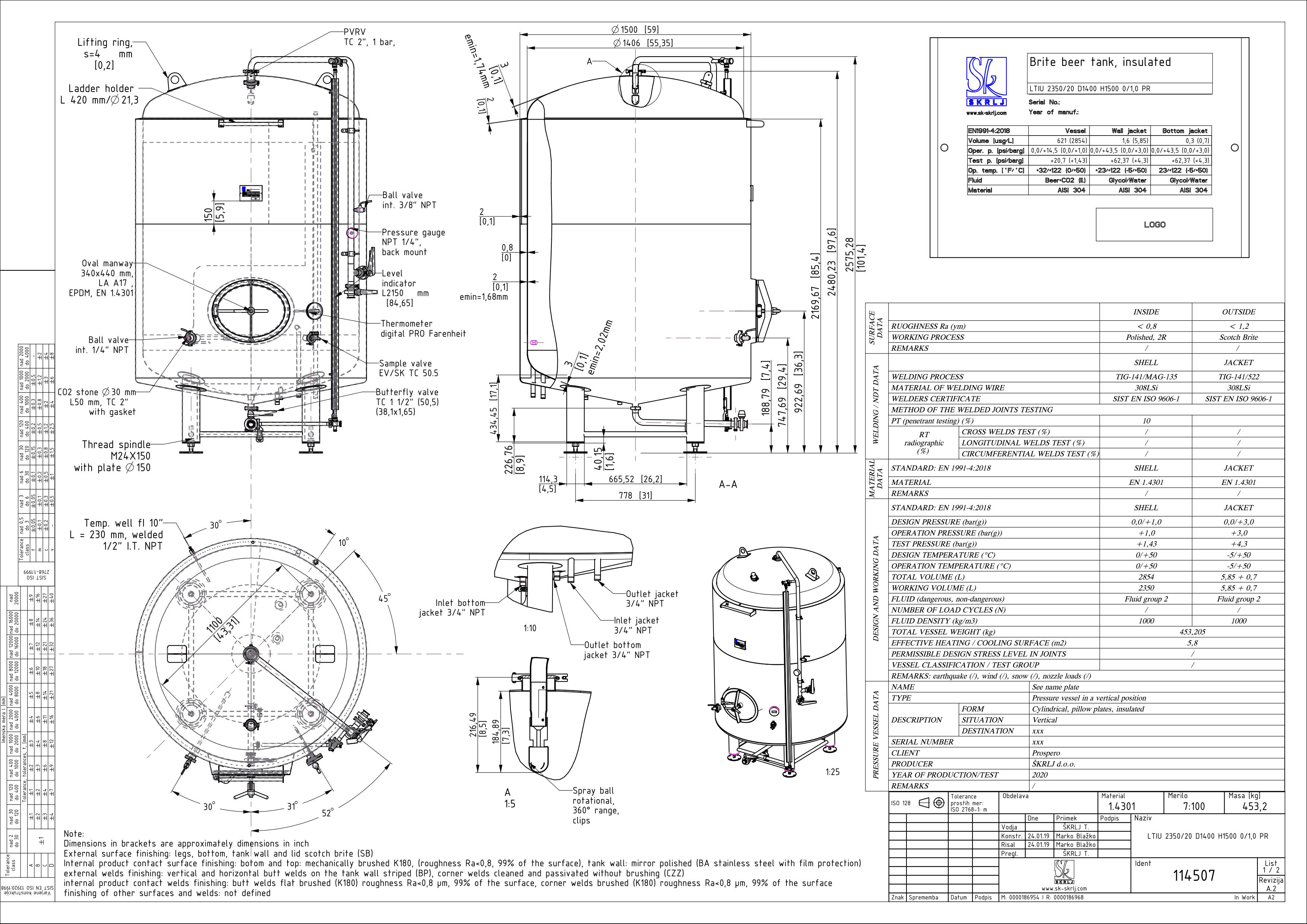

Brite beer tank, insulated
LTIU 2350/20 D1400 H1500 0/1,0 PR
Material: 114507
Standard: PR
Nominal volume in L: 2350
Geometrical volume [l]: 2854
Nominal volume [bbl]: 20
Internal diameter in mm: 1400
External diameter [mm]: 1500
Height H in mm: 1500
Height Z in mm: 2600
Internal diameter [in]: 55
External diameter [in]: 59
Height H [in]: 59
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3,0
Min. DJ design p. [barg]: 0
