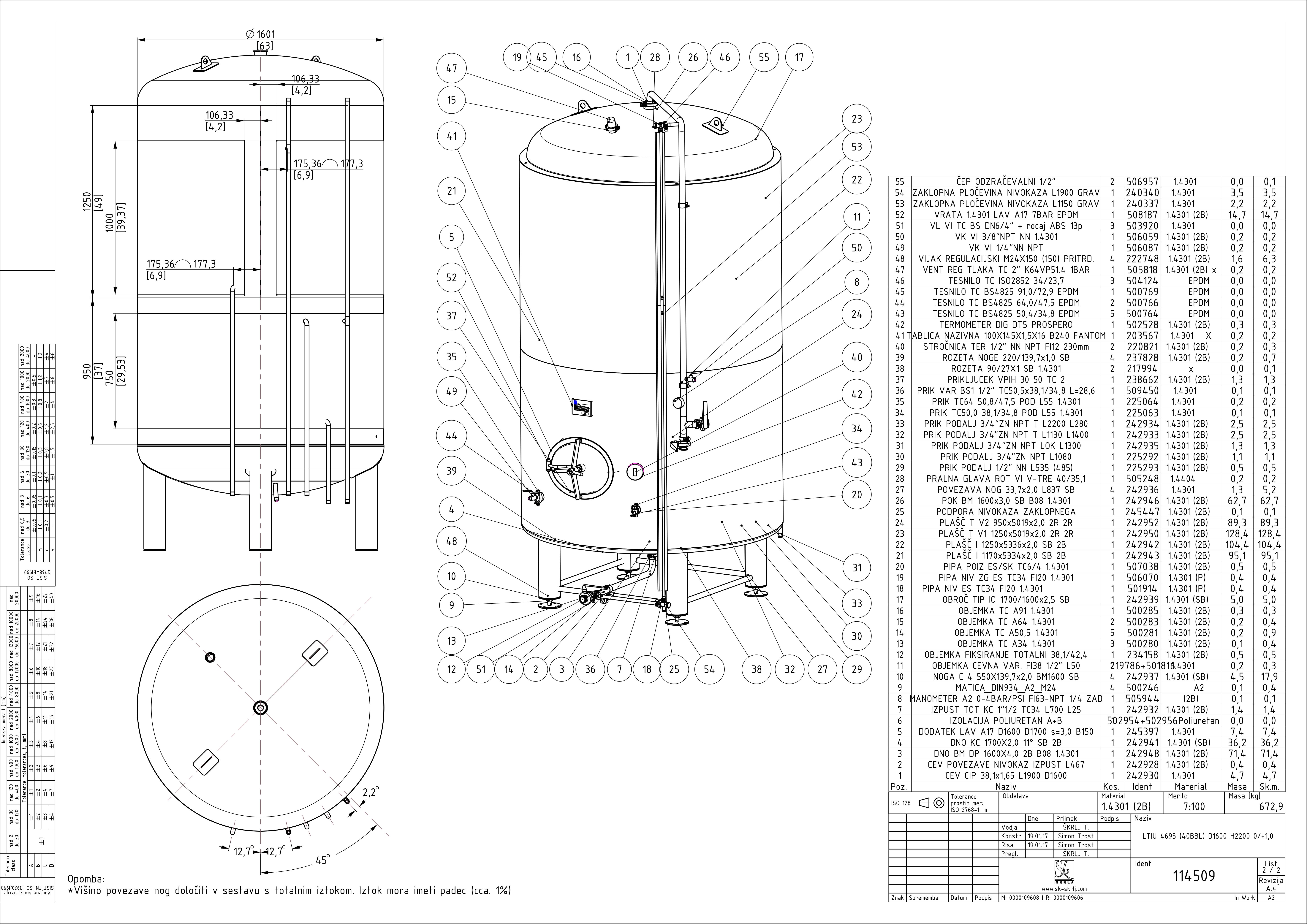

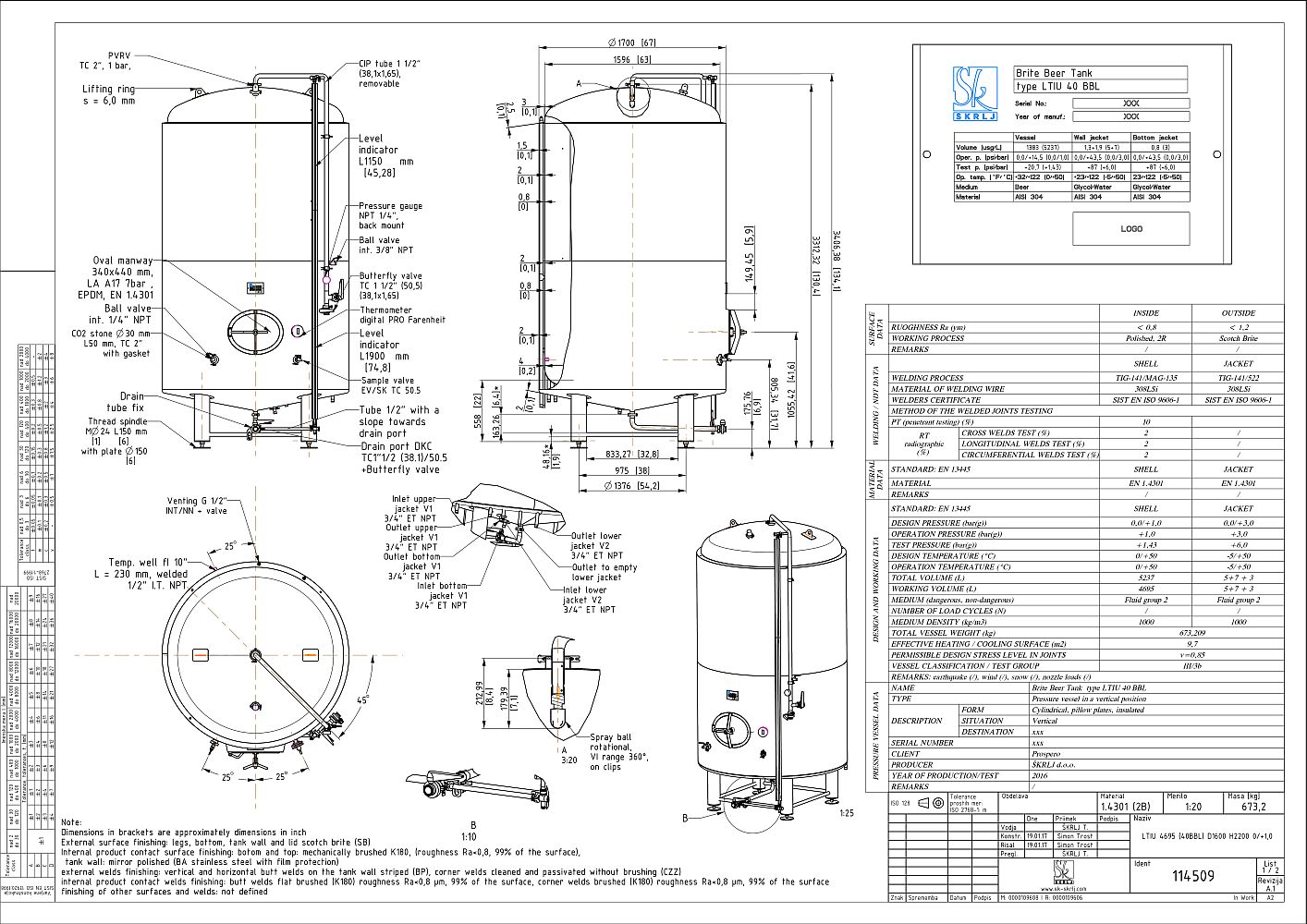

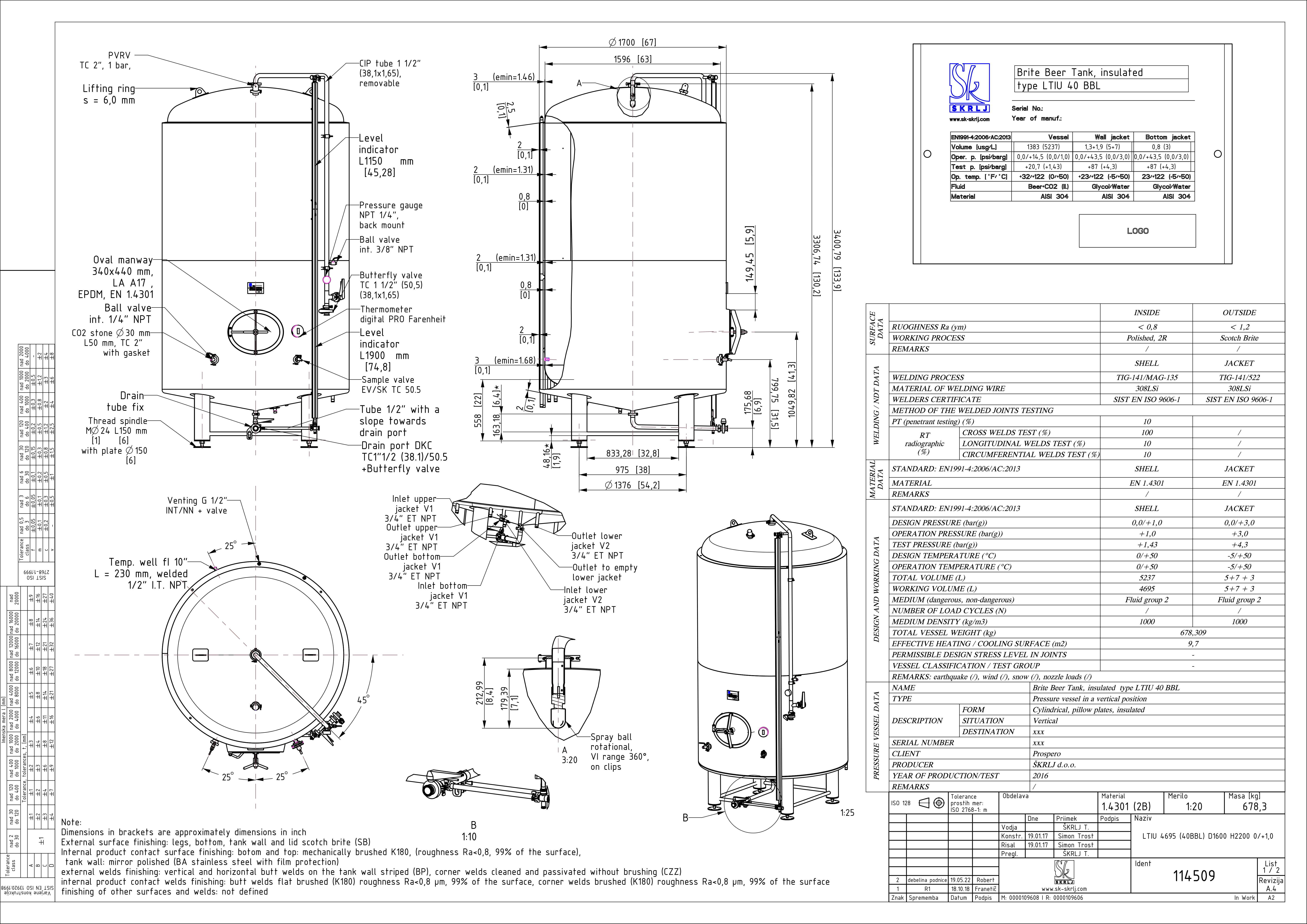

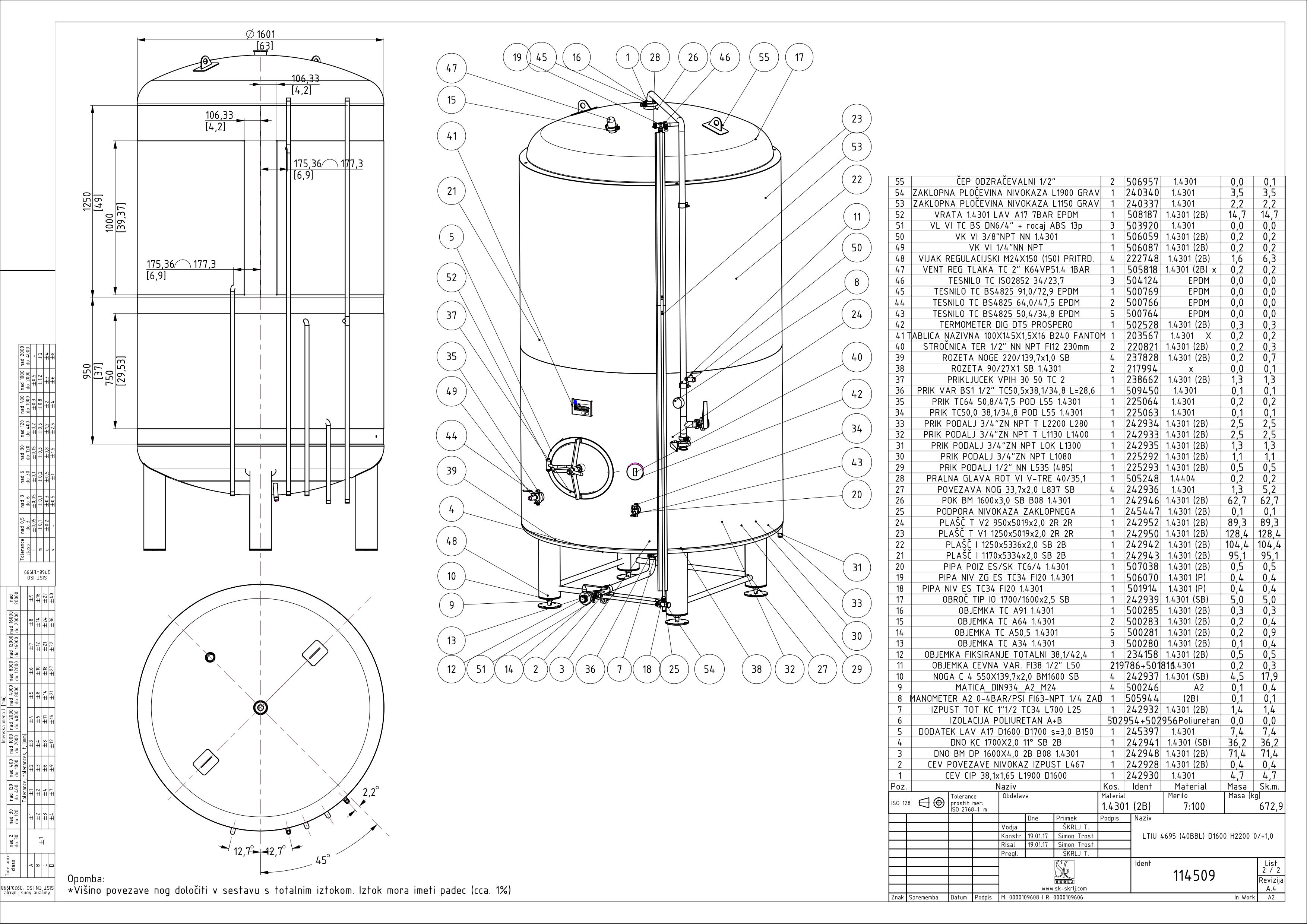

Brite beer tank, insulated
LTIU 4695/40 D1600 H2200 0/1,0 PR
Material: 114509
Standard: PR
Nominal volume in L: 4695
Geometrical volume [l]: 5237
Nominal volume [bbl]: 40
Internal diameter in mm: 1600
External diameter [mm]: 1700
Height H in mm: 2200
Height Z in mm: 3410
Internal diameter [in]: 63
External diameter [in]: 67
Height H [in]: 86
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
