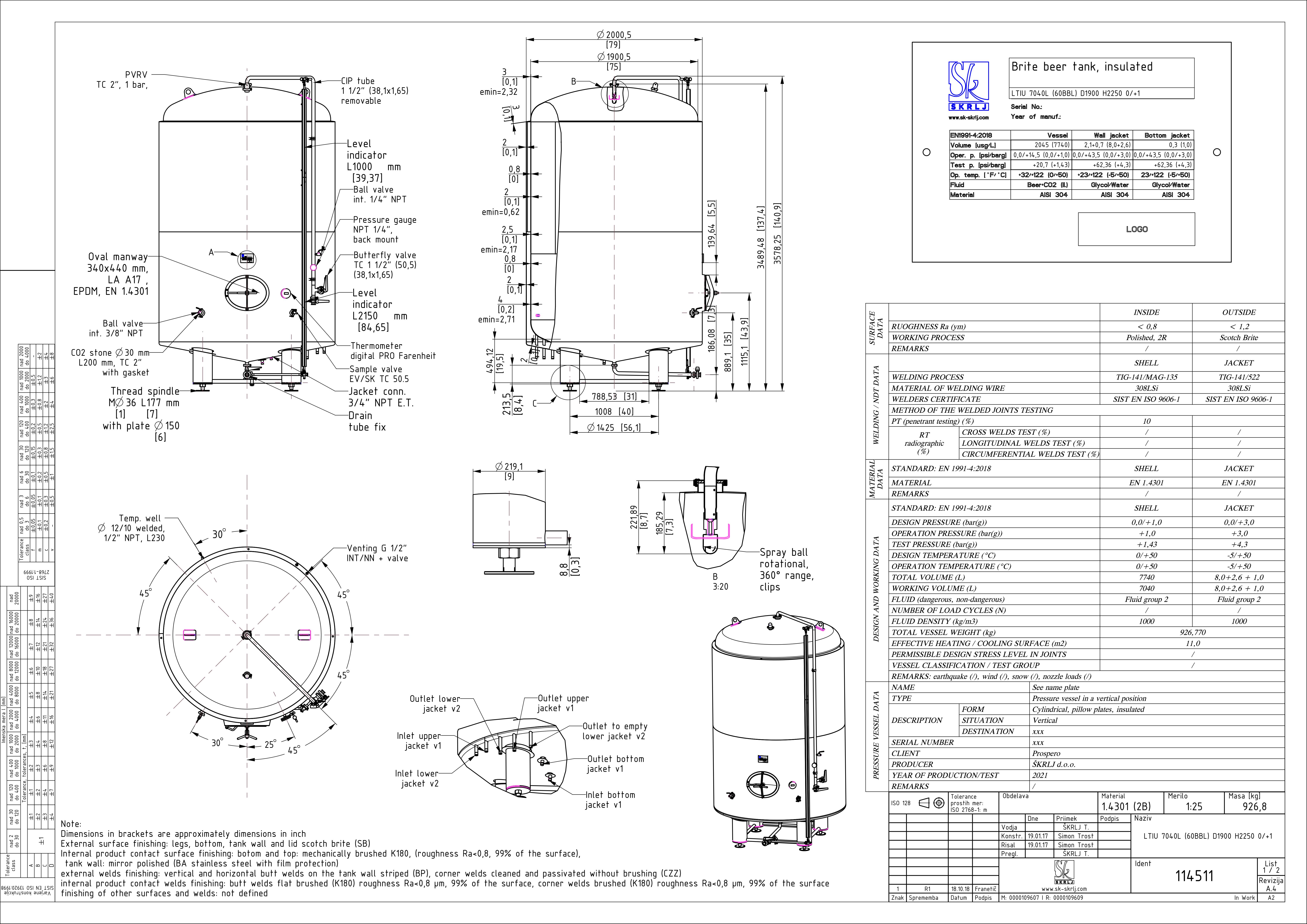

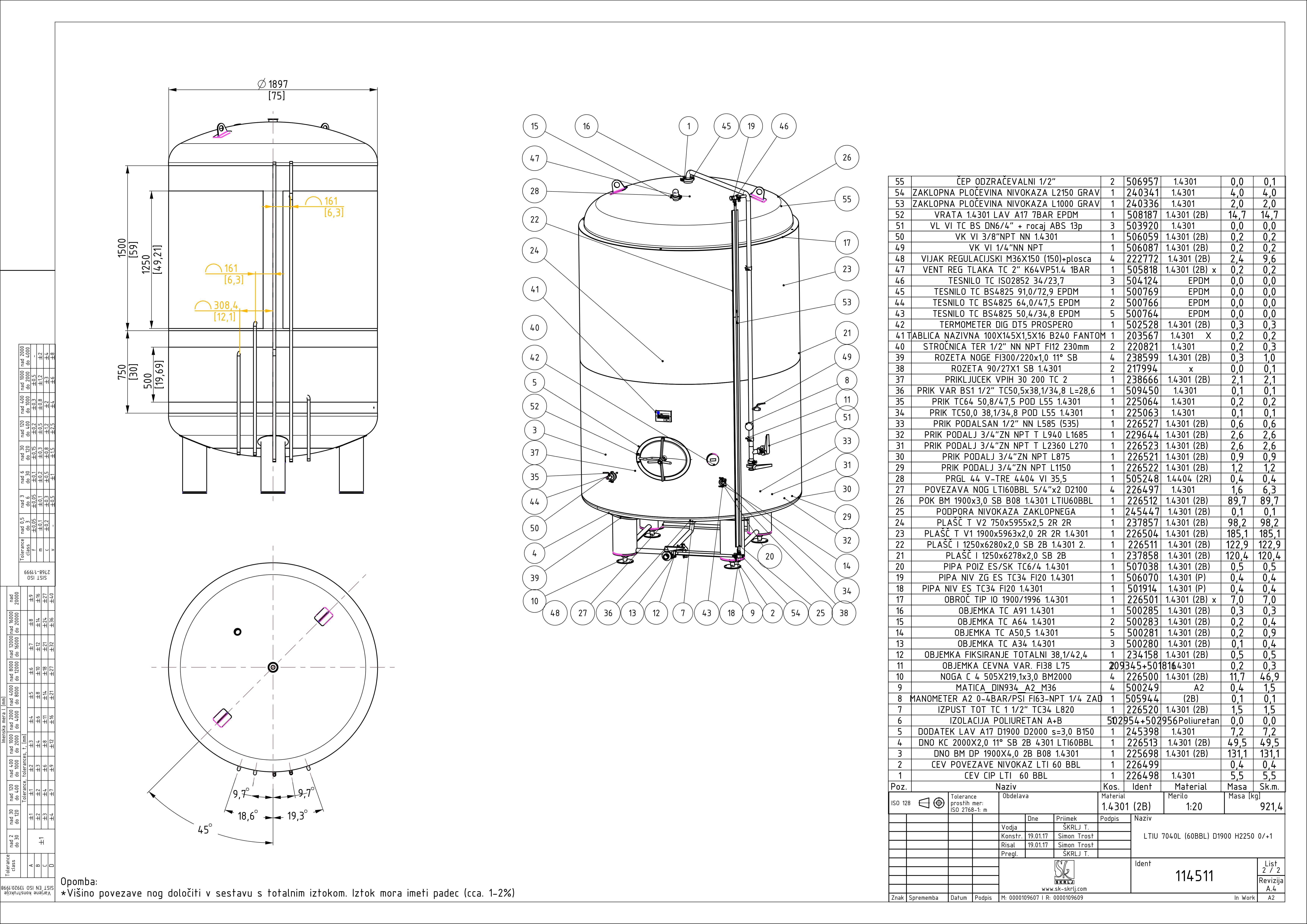

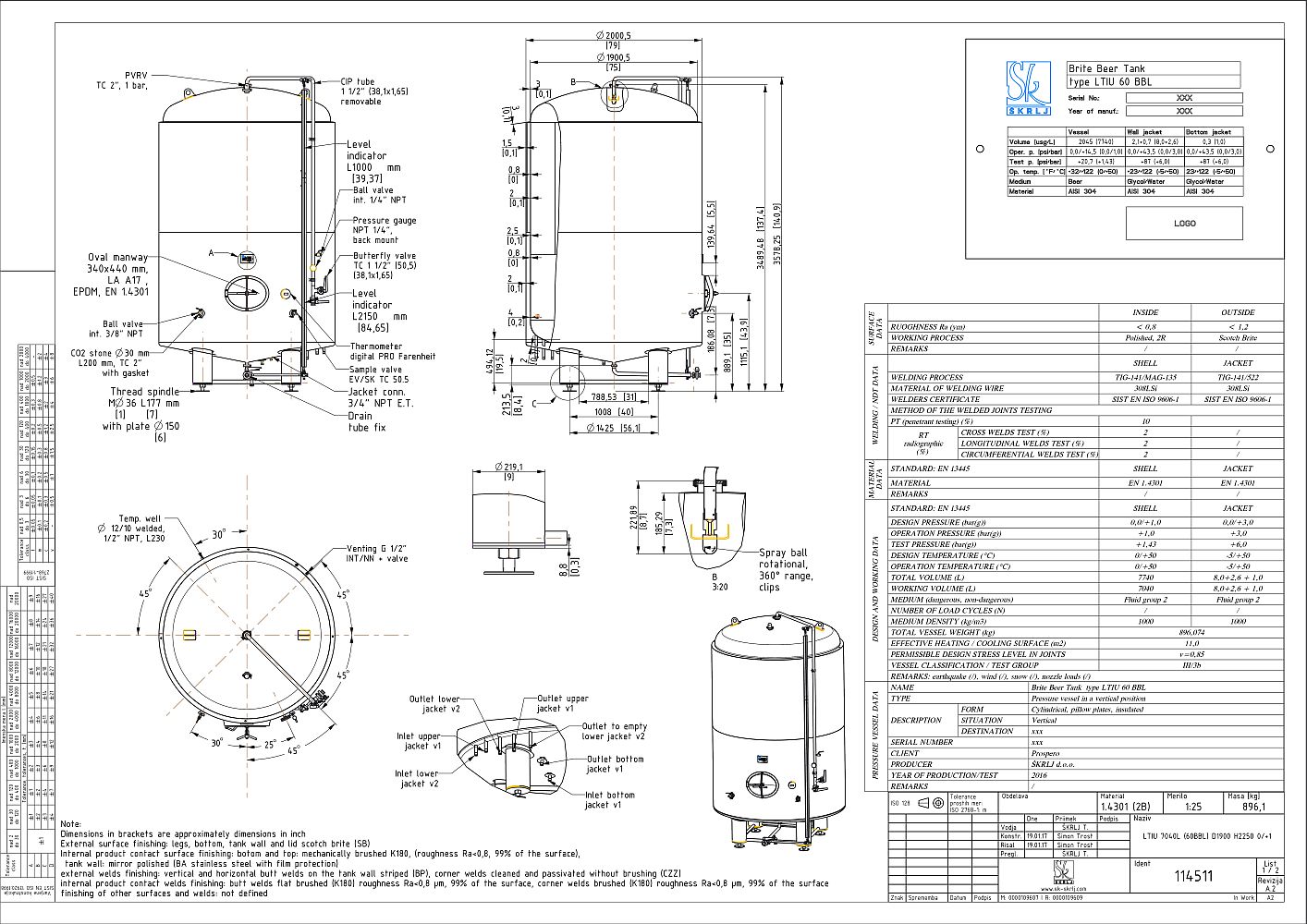

Brite beer tank, insulated
LTIU 7040/60 D1900 H2250 0/1,0 PR
Material: 114511
Standard: PR
Nominal volume in L: 7040
Geometrical volume [l]: 7744
Nominal volume [bbl]: 60
Internal diameter in mm: 1900
External diameter [mm]: 2000
Height H in mm: 2250
Height Z in mm: 3580
Internal diameter [in]: 75
External diameter [in]: 79
Height H [in]: 89
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
