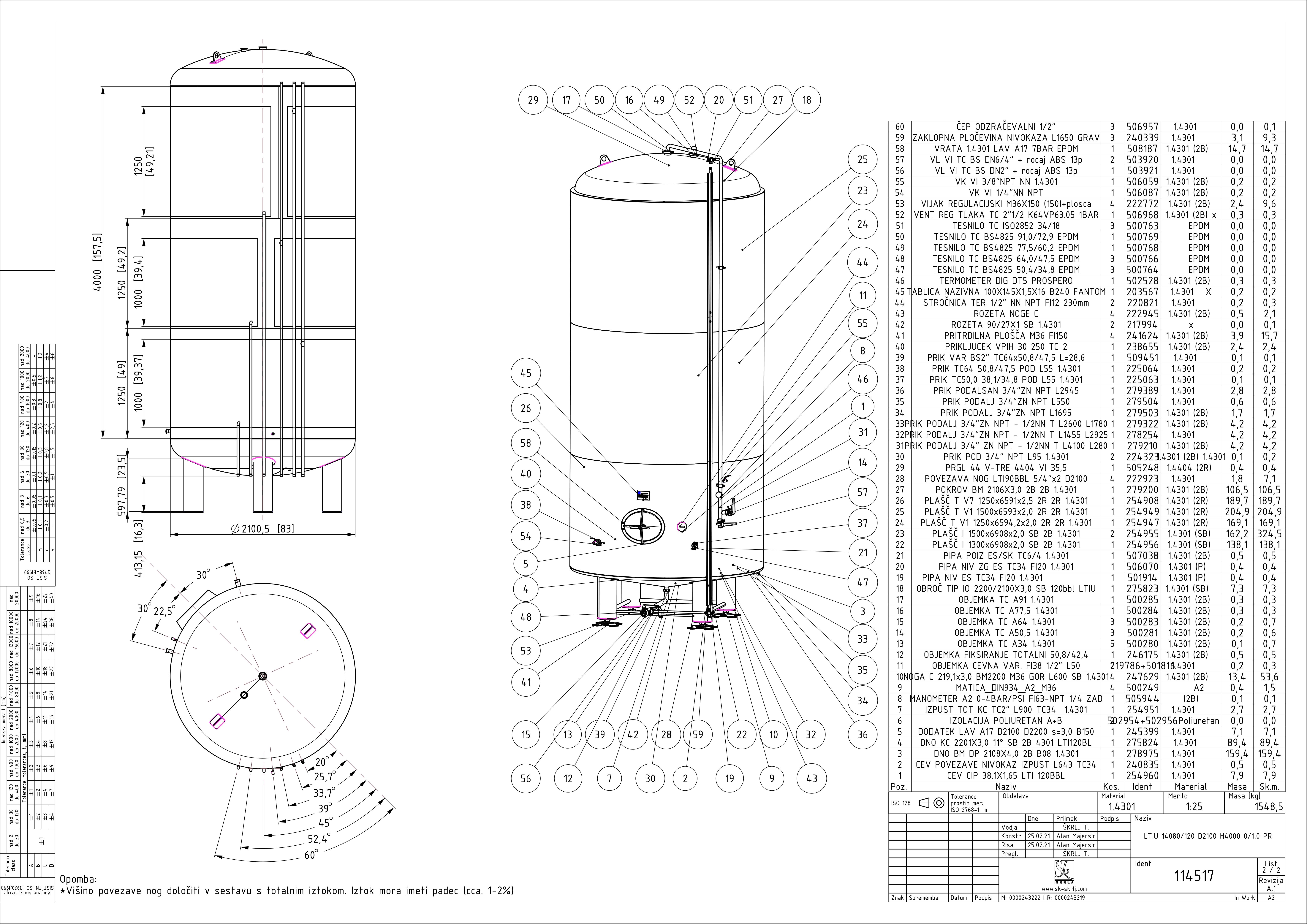

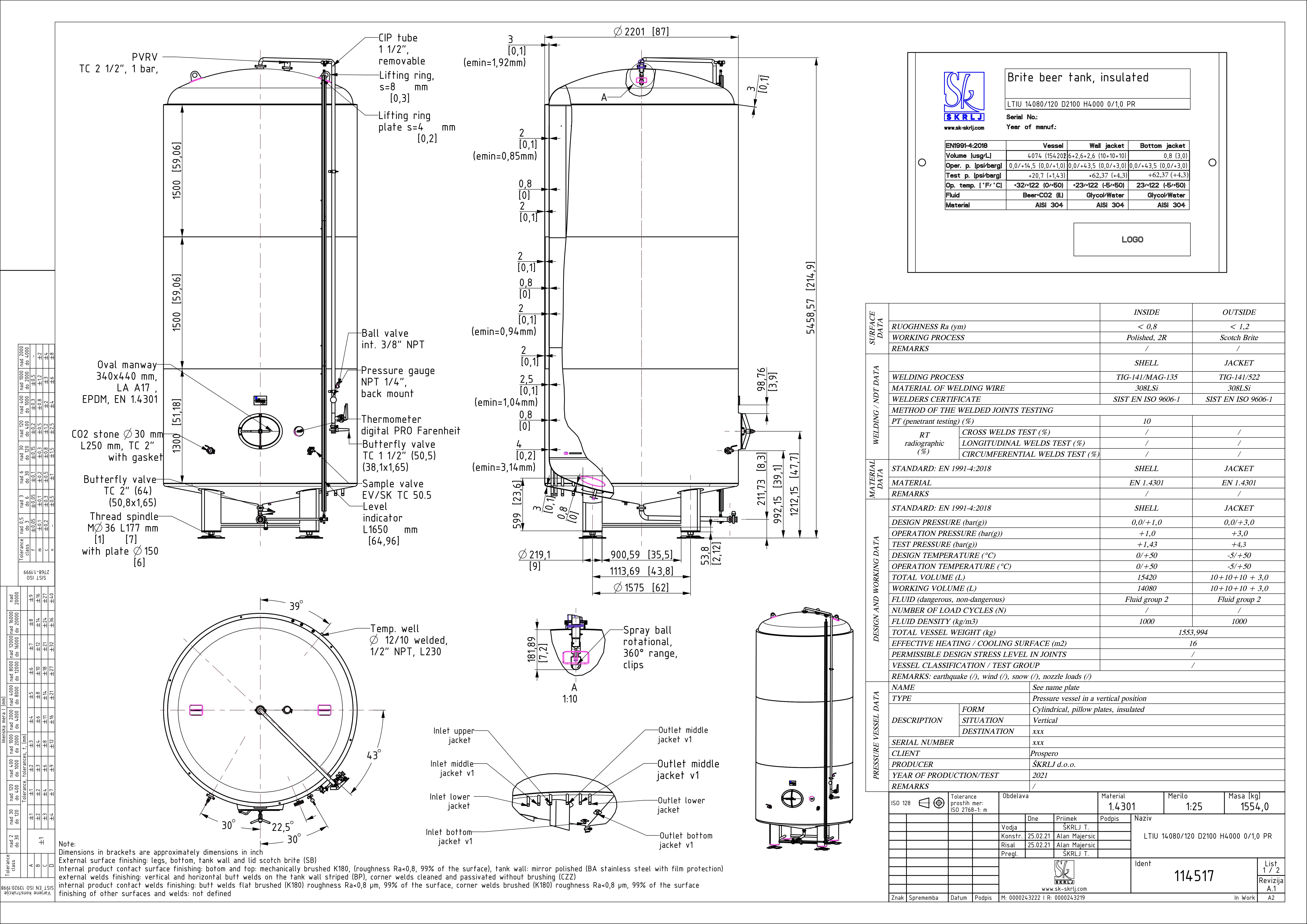

Brite beer tank, insulated
LTIU 14080/120 D2100 H4000 0/1,0 PR
Material: 114517
Standard: PR
Nominal volume in L: 14080
Geometrical volume [l]: 15698
Nominal volume [bbl]: 120
Internal diameter in mm: 2100
External diameter [mm]: 2200
Height H in mm: 4000
Height Z in mm: 5500
Internal diameter [in]: 82
External diameter [in]: 86
Height H [in]: 157
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
