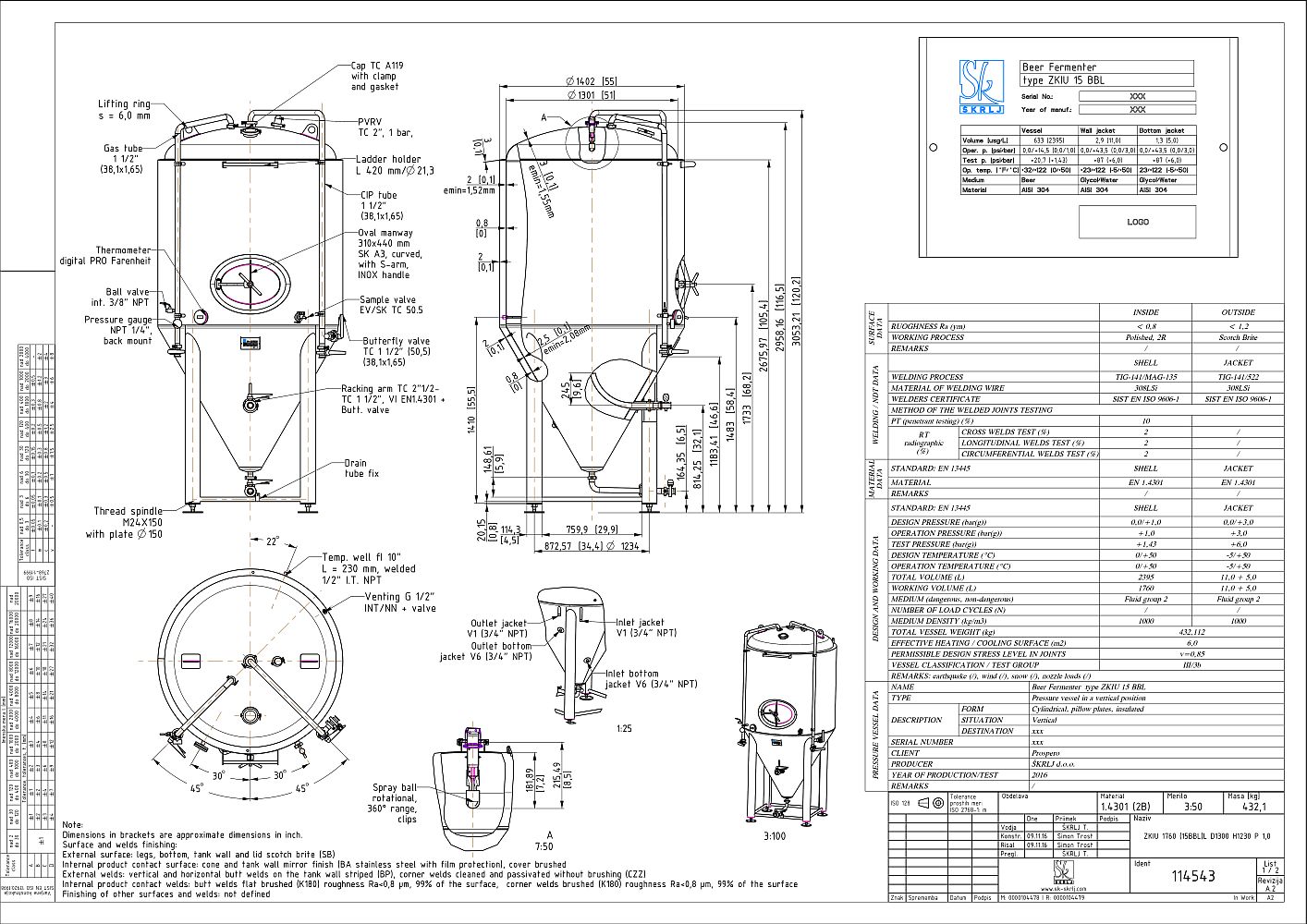

Cylindroconical fermentation and storage tank, insulated
ZKIU 1760/15 D1300 H1230 0/1,0 PR
Material: 114543
Standard: PR
Nominal volume in L: 1760
Geometrical volume [l]: 2395
Nominal volume [bbl]: 15
Internal diameter in mm: 1300
External diameter [mm]: 1400
Height H in mm: 1230
Height Z in mm: 3054
Internal diameter [in]: 51
External diameter [in]: 55
Height H [in]: 48,4
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
