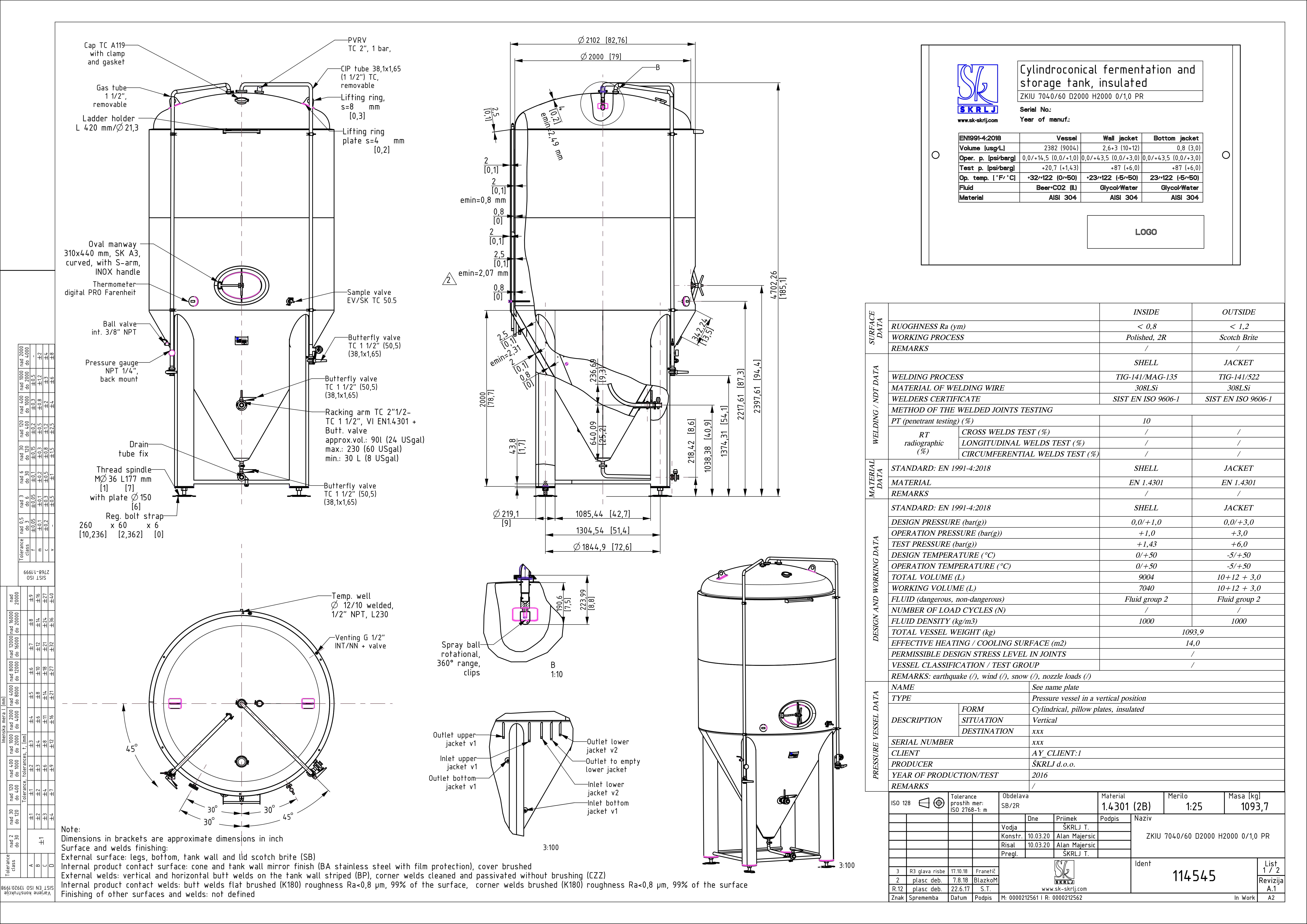

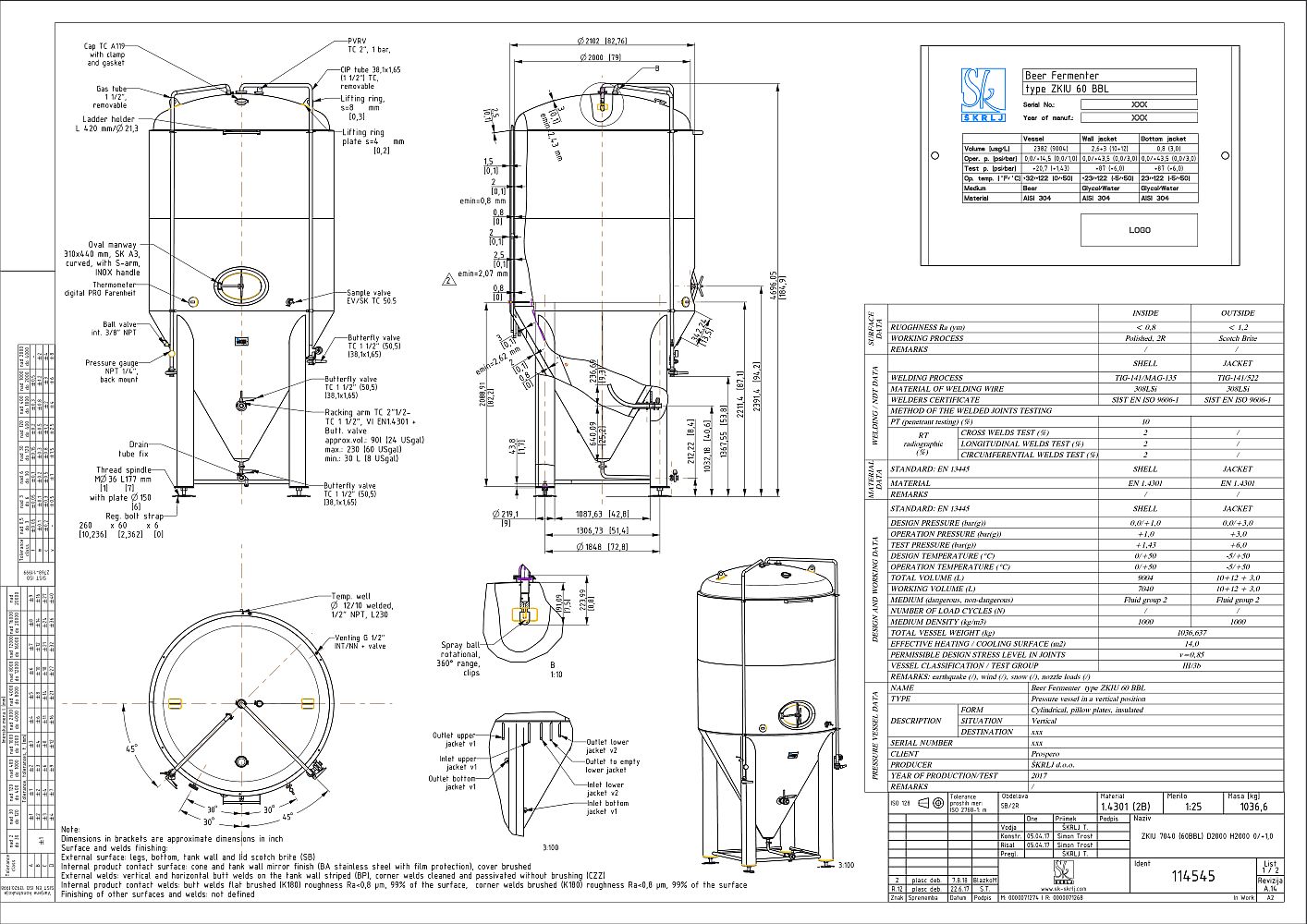

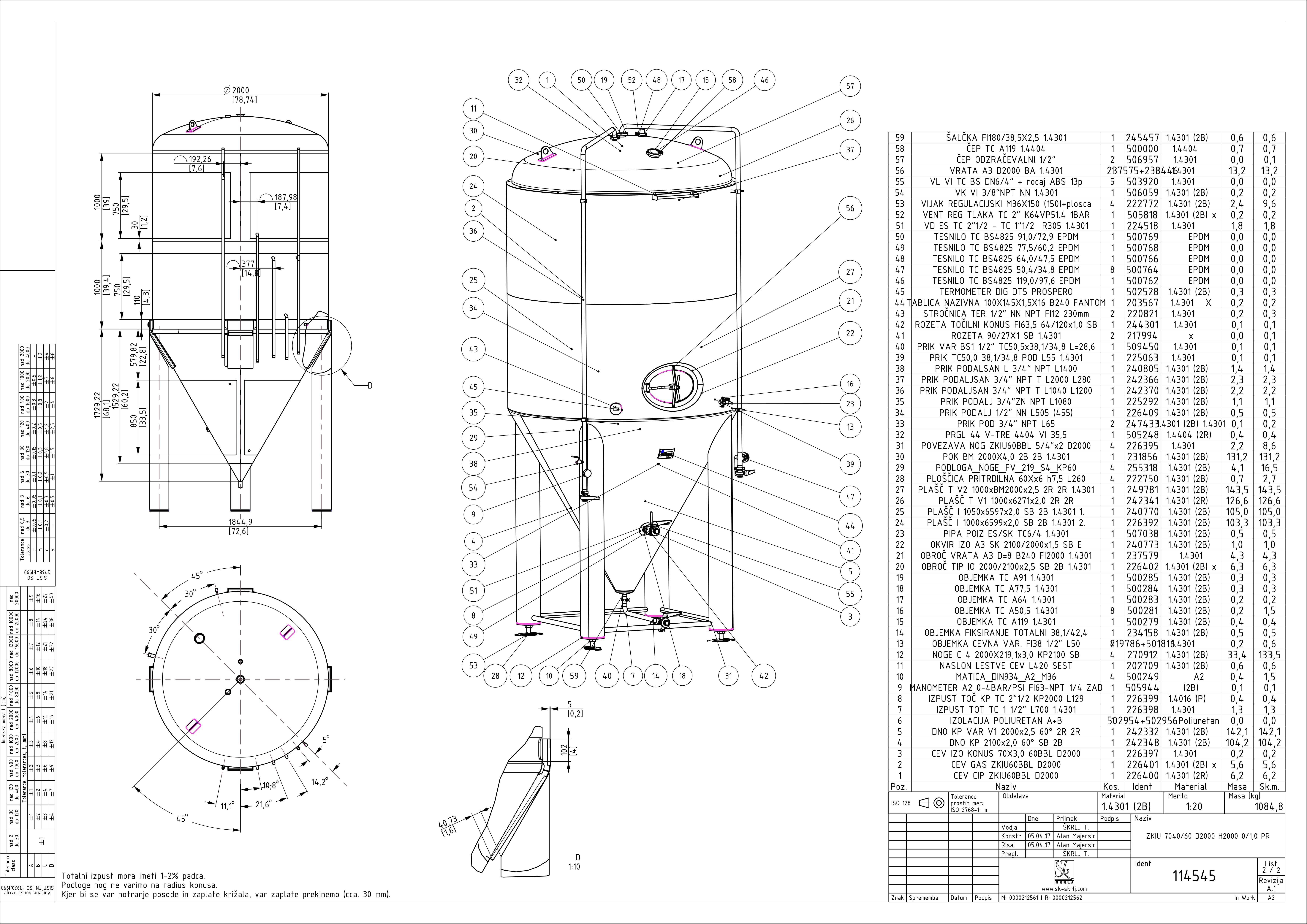

Cylindroconical fermentation and storage tank, insulated
ZKIU 7040/60 D2000 H2000 0/1,0 PR
Material: 114545
Standard: PR
Nominal volume in L: 7040
Geometrical volume [l]: 9004
Nominal volume [bbl]: 60
Internal diameter in mm: 2000
External diameter [mm]: 2102
Height H in mm: 2000
Height Z in mm: 4696
Internal diameter [in]: 79
External diameter [in]: 82,7
Height H [in]: 78
Min. operating press. [barg]: 0
Max. operating press. [barg]: 1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
