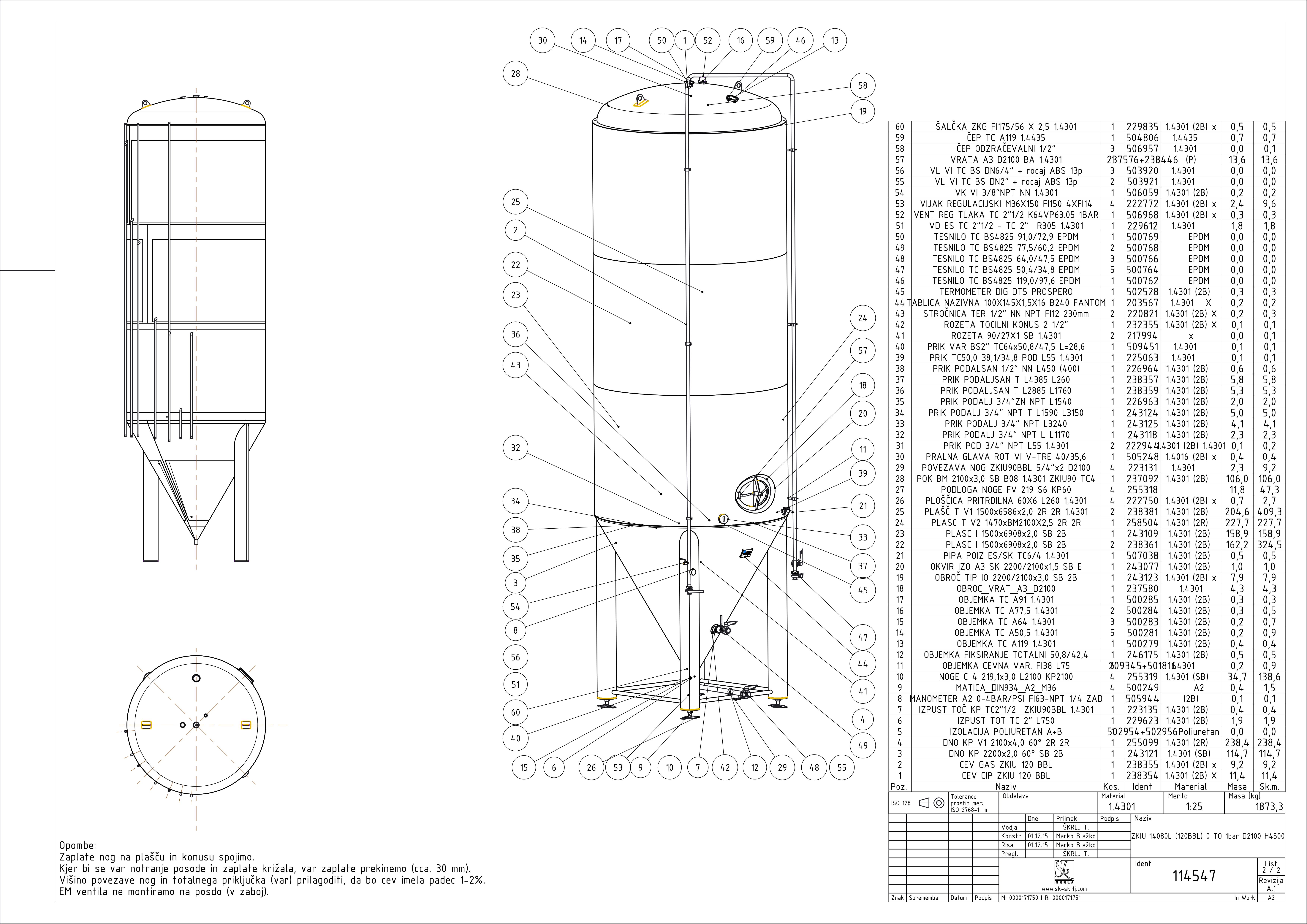

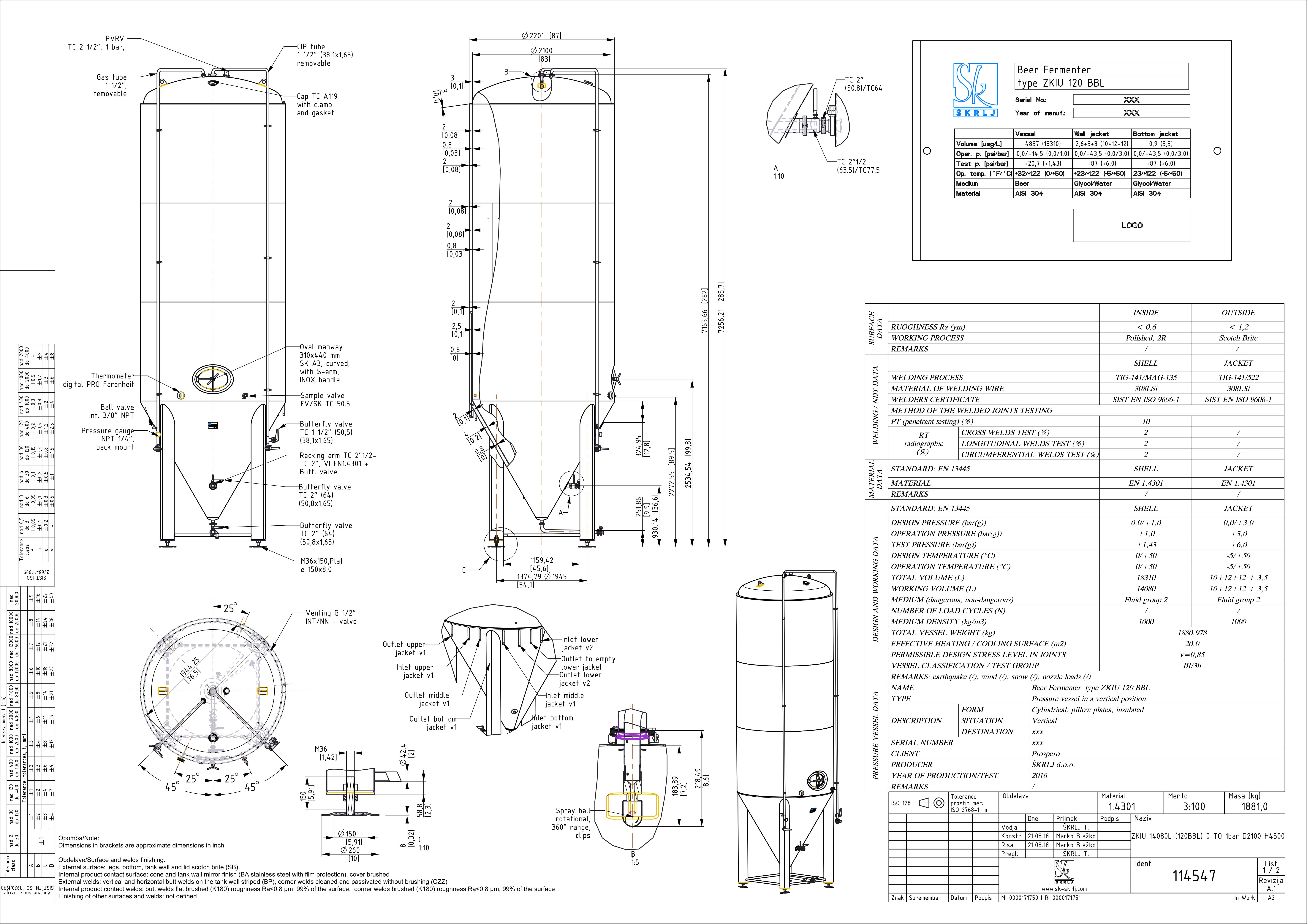

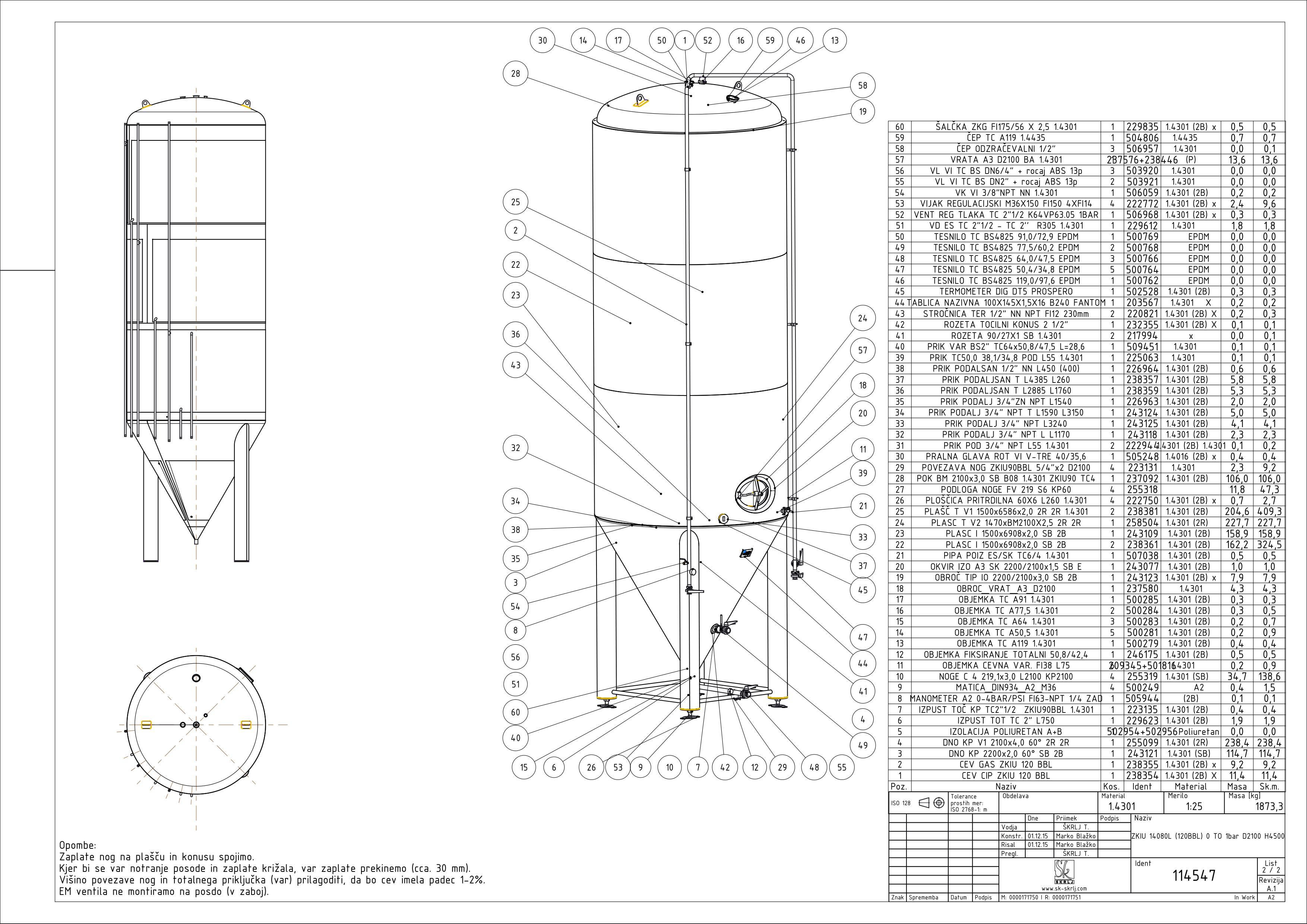

Cylindroconical fermentation and storage tank, insulated
ZKIU 14080/120 D2100 H4400 0/+1,0 PR
Material: 114547
Standard: PR
Nominal volume in L: 14080
Geometrical volume [l]: 18310
Nominal volume [bbl]: 120
Internal diameter in mm: 2100
External diameter [mm]: 2200
Height H in mm: 4400
Height Z in mm: 7300
Internal diameter [in]: 83
External diameter [in]: 87
Height H [in]: 173,2
Min. operating press. [barg]: 0
Max. operating press. [barg]: +1,0
Test pressure [barg]: 1,43
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
