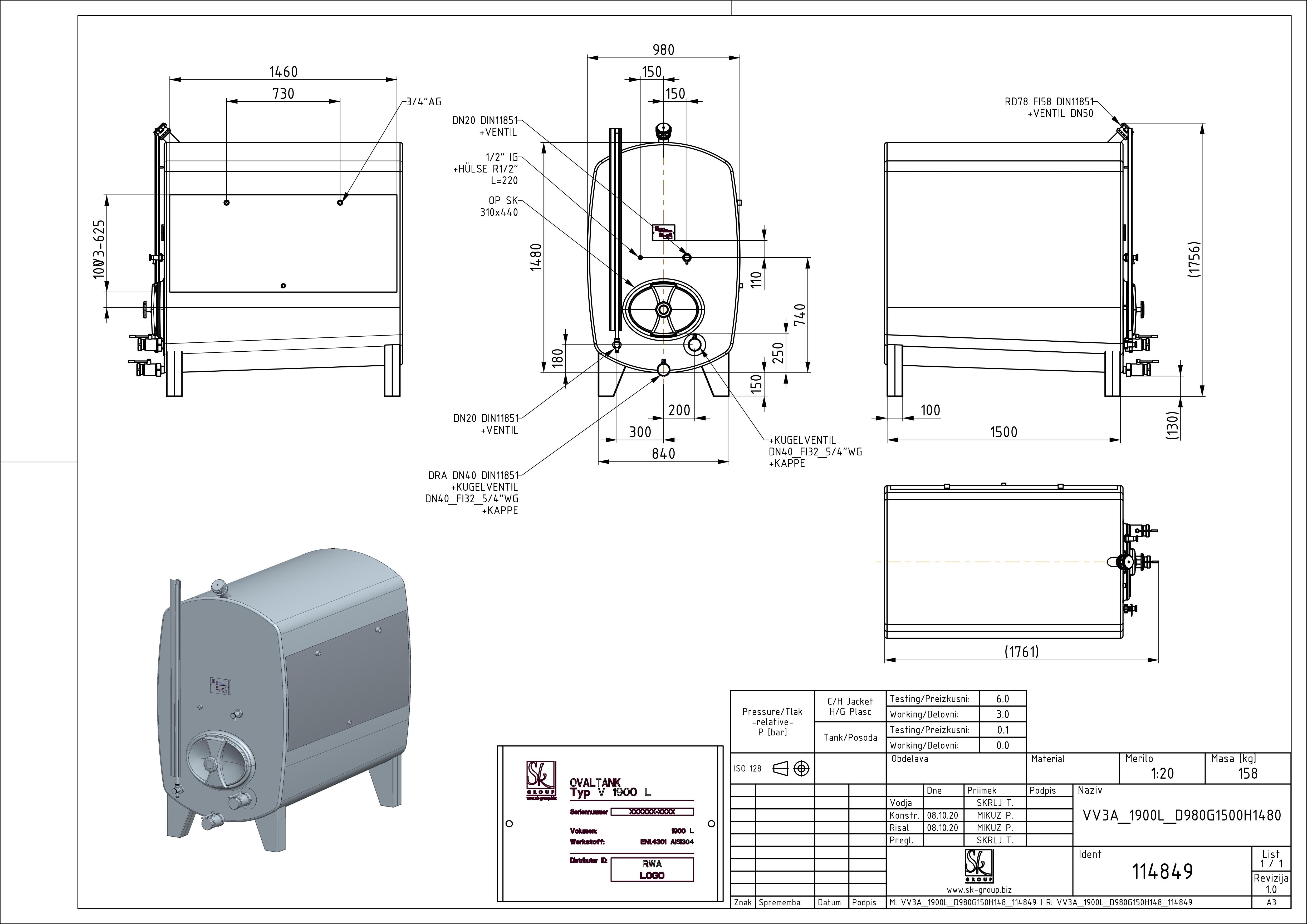

Oval storage tank with double jacket
VV3A 1900 D980 G1500 H1480 0/ATM
Material: 114849
Nominal volume in L: 1900
Width D in mm: 980
Depth G in mm: 1500
Jacket height H in mm: 1480
Type: Horizontal tank - bottom RA - jacket E - lid RA
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Min. operating p. DJ [barg]: 0
Max. operating p. DJ [barg]: 3
Min. DJ design p. [barg]: 0
