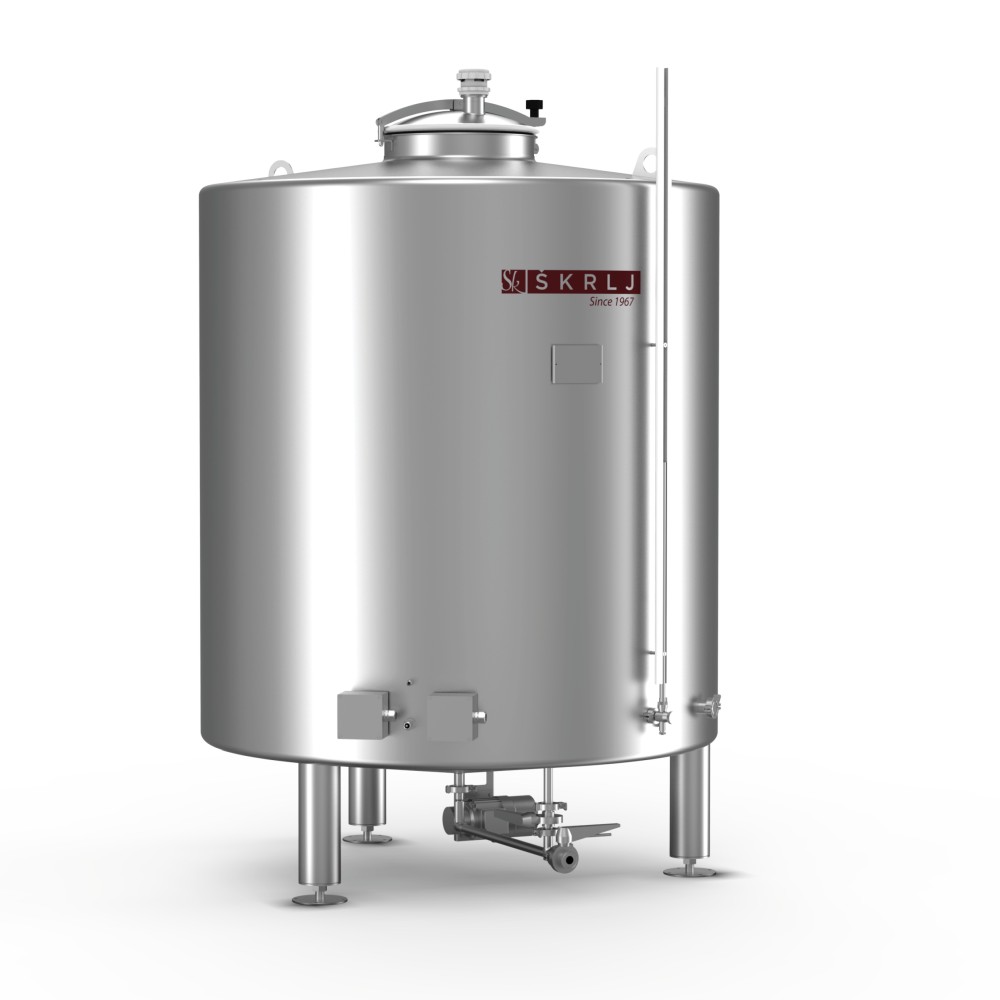

Hot water tank
WTXX 2000/16 D1370 H1410 0/ATM
Material: 119803
Nominal volume in L: 2000
Nominal volume [bbl]: 16
Internal diameter in mm: 1370
External diameter [mm]: 1470
Jacket height H in mm: 1410
Total height Z in mm: 2270
Internal diameter [in]: 53,8
External diameter [in]: 57,9
Height H [in]: 55,5
Min. operating press. [barg]: 0
Max. operating pressure [barg]: atmospheric
Supply voltage: 230/400V 50/60Hz
Input power: 27,55 KW
